Configuration Of Mercury And/Or Altronix Boards; Mercury Access Controllers; Altronix Sub-Assemblies And/Or Adapters; Access Controller Position Chart For The Following Models - Altronix Trove TMV2 Installation Manual

Mercury Access Controllers:

1. Fasten snap on standoffs onto metal pems configuration (A) (B) of backplane depending on the access controller (Fig. 1, pg. 2).
2. Position access controller module over corresponding standoffs and depress onto snap on standoffs (Fig. 1a, pg. 2).
3. Mount backplane to enclosure with hardware.

Altronix Sub-Assemblies and/or Adapters:

1. Fasten nylon / snap on standoffs to pems which match the hole pattern for Altronix Sub-Assemblies (Fig. 1, 1a, pg. 2).
2. Mount boards to standoffs utilizing pan head screws provided with the product or by depressing board onto snap on standoff
(Fig. 1, pg. 2).
Note: For GB1 please use standoffs supplied with the adapter.
Access Controller
EP1502, MR52, MR16IN, MR16OUT
EP2500, MUX8
Sub-Assembly or Adapter
ACM4(CB), MOM5, PD4UL(CB), PD8UL(CB), PDS8(CB), VR6, GB1 (Genetec Synergis Cloud Link adapter plate)

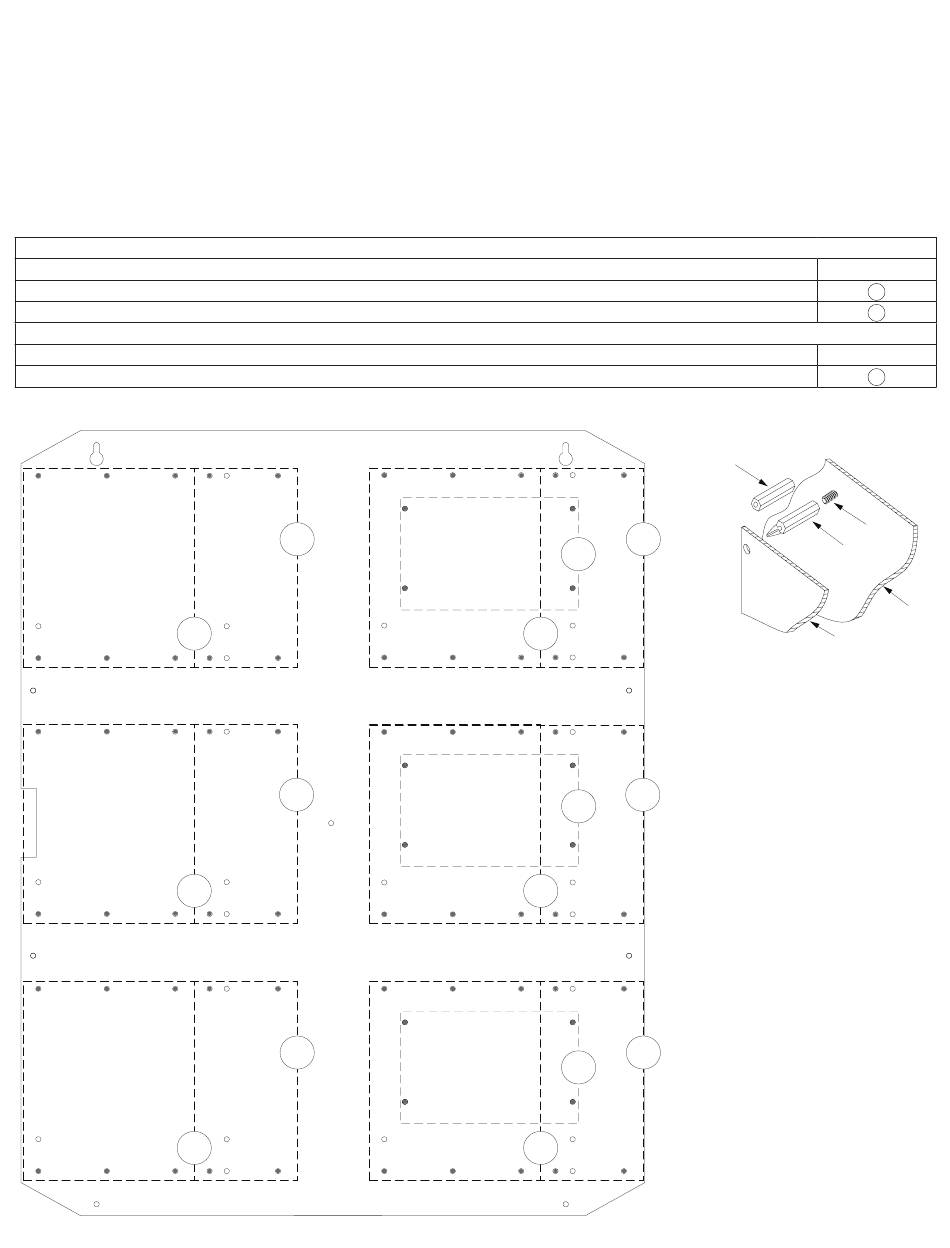

Fig. 1
B
B
B
- 2 -
TMV2: Configuration of Mercury and/or Altronix Boards

Access Controller Position Chart for the Following Models:

A
A
A
Mercury
Altronix
C
B
C
B
C
B
Nylon
Standoff
A
A
A
TMV2 - Altronix / Mercury / HID VertX Door Backplane
Pem Mounting
A
B
Pem Mounting
C
Fig. 1a
Pem
Snap on
Standoff
Backplane
Sub-Assembly
