iOptron iPolar Replacing Instructions page 2

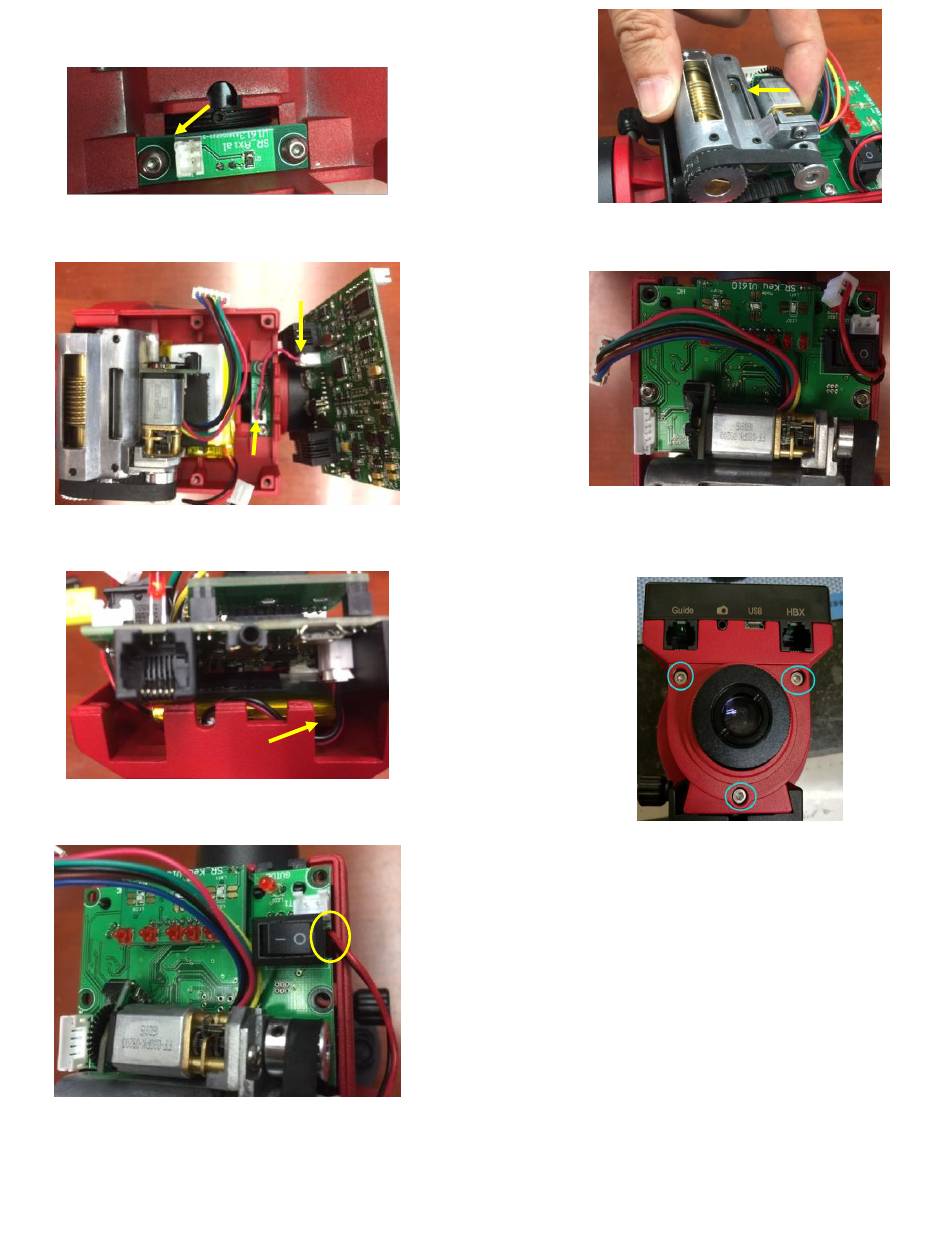

9. Install the polar scope LED abr. Make sure the cable
plug is placed on the left side as shown.
10. Connect the polar scope LED cable between the LED
bar and the control board.
11. Sliding the front end of the control board in. Make
sure the LED cable underneath is not jammed.
12. Gently push the board in when the power cable
goes through the small cut on the board.
13. If you release the motor to gain more space while
remove the board, tighten motor locking screws
while push the motor against worm assembly to
tension the belt properly.
14. When securing the board with two screws, make
sure that the battery and wires underneath are
properly seated. Fully tighten the screws.
15. Plug in the battery wire and motor cable. Refer to
step 2 to wrap the wire properly. Put the cover and
screws on.
16. Replace the polar scope base plate.
