- Page 1 SC6C0N1 AIO User Manual JMC Systems Engineering AB www.jmc.se info@jmc.se +46 8 828270...
-
Page 2: Table Of Contents
3.7.2. DEVICE NAME SETTINGS ....................20 3.7.3. TIME SETTING ........................20 3.7.4. FIRMWARE UPDATE ......................20 3.7.5. ACCOUNT SETUP ......................... 22 3.7.6. SYSTEM RELATED ........................ 22 3.8. RS485 ..........................23 3.8.1. RS485 PARAMETER ....................... 23 JMC Systems Engineering AB www.jmc.se info@jmc.se +46 8 828270 2/24... -
Page 3: Package Content
1. PACKAGE CONTENT Product Name Quanties SC6C0N1 AIO Adapter JMC Systems Engineering AB www.jmc.se info@jmc.se +46 8 828270 3/24... -
Page 4: Product Introduction

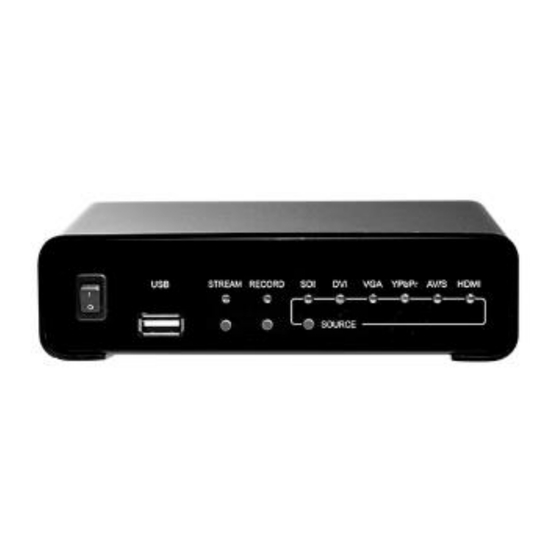

3.5mm audio jack and a pair of RCA connector for stereo analog audio input. Front panel detail Back panel detail Besides control button, in front panel, SC6C0N1 AIO provides power switch, USB 2.0 and JMC Systems Engineering AB www.jmc.se info@jmc.se +46 8 828270 4/24... - Page 5 RS485 communication interface. USB 2.0 interface is for user to capture input AV signal. 3 control buttons are using to on/off streaming, record mode and select input interface. User can use RS485 interface to control perherials. JMC Systems Engineering AB www.jmc.se info@jmc.se +46 8 828270...
-
Page 6: Specification
⚫ Dynamic Parameter Setting Features ⚫ RS-485 ⚫ 1×USB 2.0 Host for USB Storage ⚫ Web UI for System Configuration ⚫ Firmware Upgradable LED Indicator ⚫ Record Format System Requirement JMC Systems Engineering AB www.jmc.se info@jmc.se +46 8 828270 6/24... - Page 7 Power DC 12V (With DC Adapter) Supply JMC Systems Engineering AB www.jmc.se info@jmc.se +46 8 828270 7/24...
-
Page 8: Web Ui
AIO), the user will open the web browser automatically, please provide default user name and password to login the SC6C0N1 AIO. Default user name: admin Defaule password: 000000 After login the system, the web UI will display inside browser automatically. JMC Systems Engineering AB www.jmc.se info@jmc.se +46 8 828270 8/24... -
Page 9: Source
3.2. SOURCE In source page, user can decide input interface and finetune video format. Video Tuning Default Range brightness 0~255 contrast 0~255 0~255 saturation 0~255 sharpness 0~255 JMC Systems Engineering AB www.jmc.se info@jmc.se +46 8 828270 9/24... -
Page 10: Encoder
※Please remind, if user had use only main stream, the SC6C0N1 AIO can streaming 1080P60, but if activate main and sub streaming, the main streaming can exceed to 1080P30, sub streaming can exceed to 960*540P30. JMC Systems Engineering AB www.jmc.se info@jmc.se +46 8 828270... -
Page 11: Record
Storage Content block contains mounted USB flash disk information, when necessary, the USB flash can be formatted here (Format to FAT32). The index block will display the connected storage here. JMC Systems Engineering AB www.jmc.se info@jmc.se +46 8 828270 11/24... -
Page 12: Streaming
For TS UDP Streaming protocol, SC6C0 can send dual stream for user to use. When the signal is not connect, SC6C0N1 AIO will generate an error message to remind user to connect the signal. JMC Systems Engineering AB www.jmc.se info@jmc.se +46 8 828270... -
Page 13: Introduction: Srt
After selecting Stream Type to RTSP, the SC6C0N1 AIO will generate Play URL for user to receive RTSP stream. Open VLC media player→[Media]→[Open Network Stream] or direct press [Ctrl]+[V] to print streaming to VLC media player JMC Systems Engineering AB www.jmc.se info@jmc.se +46 8 828270 13/24... - Page 14 JMC Systems Engineering AB www.jmc.se info@jmc.se +46 8 828270 14/24...
-
Page 15: Example: Rtmp
3.5.3. EXAMPLE: RTMP RTMP can use for streaming live video to facebook, youtube, and etc. Please enter youtube live and copy server URL to SC6C0N1 AIO for SC6C0N1 AIO to streaming video. JMC Systems Engineering AB www.jmc.se info@jmc.se +46 8 828270 15/24... -
Page 16: Example: Youtube
USER CODE for user to connect with YouTube account. (Remember to allow the browser popup window for connecting youtube) After press NEXT, the connectable user account will appear for user to select. JMC Systems Engineering AB www.jmc.se info@jmc.se +46 8 828270... - Page 17 After the account is connected, the video will automatically live streaming to youtube; User can also check the connected SC6C0 inside the popup window. Youtube live video streaming will automatically generates after the setting is completed. JMC Systems Engineering AB www.jmc.se info@jmc.se +46 8 828270...
-
Page 18: Osd
3.6. CG 3.6.1. OSD ON/OFF: Turn on or off OSD Text: Displayed OSD content Location-X: OSD place X Location-Y: OSD place Y Background: OSD background enable/disable Text Size: OSD text size JMC Systems Engineering AB www.jmc.se info@jmc.se +46 8 828270 18/24... -
Page 19: System
3.7. SYSTEM 3.7.1. NETWORK SETTING User can decide disable or enable DHCP mode, when disable DHCP mode, please remember assign all necessary information for SC6C0N1 AIO. JMC Systems Engineering AB www.jmc.se info@jmc.se +46 8 828270 19/24... -
Page 20: Device Name Settings
Before start firmware upgrade procedure, please unzip the firmware package and make sure the directory of firmware file. (The file name will be FW201XXXXXXX ) JMC Systems Engineering AB www.jmc.se info@jmc.se +46 8 828270... - Page 21 Please click browse button and find firmware. After select the firmware, the firmware will automatically upload to SC6C0. After the upload is complete, the UI will become normal and firmware name appears. JMC Systems Engineering AB www.jmc.se info@jmc.se +46 8 828270 21/24...
-
Page 22: Account Setup
User can restore SC6C0N1 AIO to default by press Restore to Default button, the whole system will return to factory default. User can reboot SC6C0N1 AIO to default by press Reboot button, the whole system will reboot. JMC Systems Engineering AB www.jmc.se info@jmc.se +46 8 828270 22/24... -
Page 23: Rs485
3. Press Apply to save the current status and content data into the config or press Send to send current content directly. 4. If the Configuration is no longer needed, user can press Clear to remove saved configuration. JMC Systems Engineering AB www.jmc.se info@jmc.se +46 8 828270 23/24... - Page 24 JMC Systems Engineering AB www.jmc.se info@jmc.se +46 8 828270 24/24...
