TRI-CHANNEL COLD PAN

Thermostat

WARNING:
THE POWER MUST BE TURNED OFF
AND DISCONNECTED AT ALL TIMES
DURING MAINTENANCE OR REPAIR
FUNCTIONS.

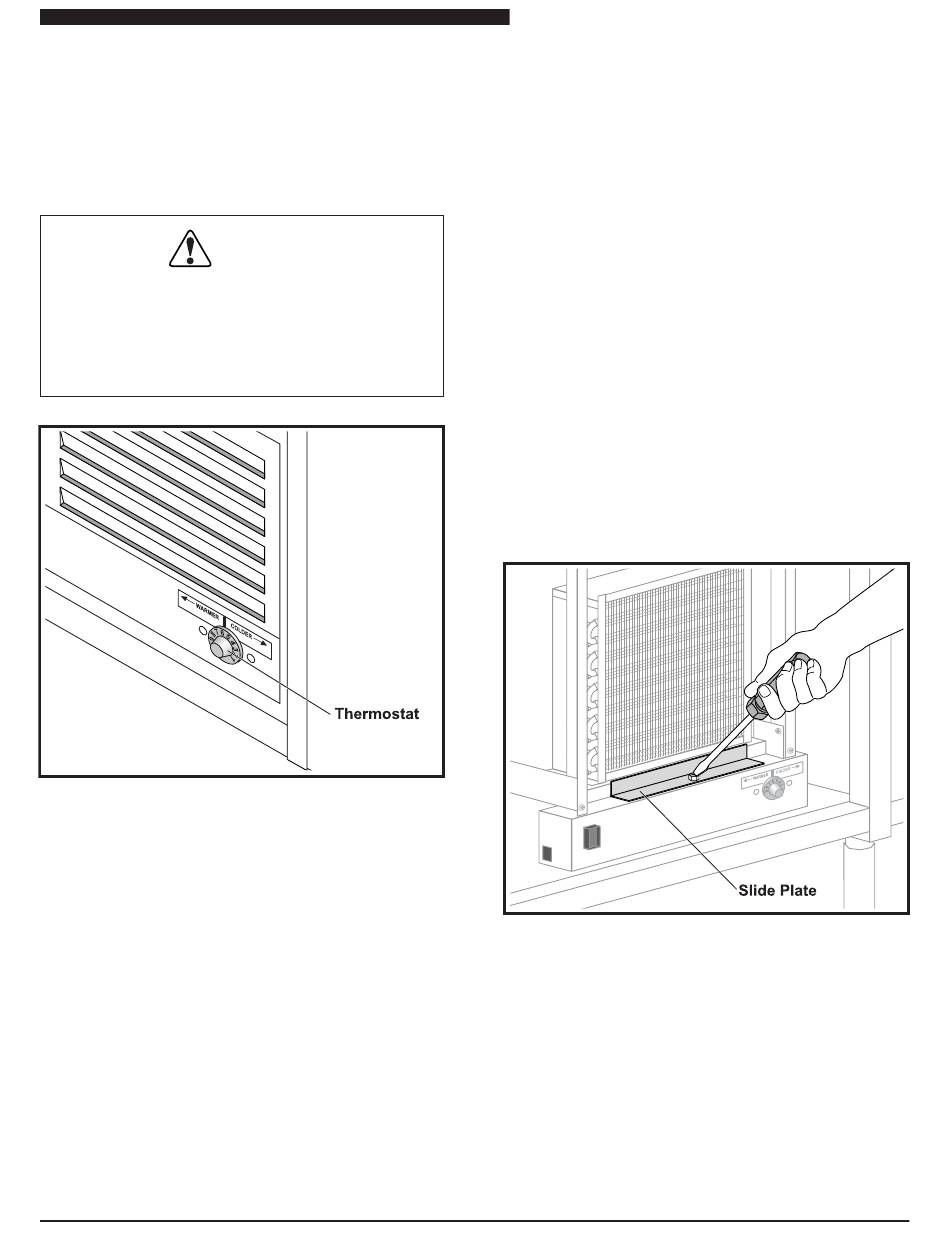

Location of Thermostat
Service may be performed from the front or back
of the counter. It may be easier to access the
compressor from the front of the counter. This
can only be done on counters with Duke Décor
Panels installed.
1. Disconnect the unit from its power source.
2. Unplug the Purse Rail Lights from the duplex
box located on the compressor cage inside
the unit.
3. Loosen the screws in the stainless steel top
that hold the Décor Panel in place.

PARTS REPLACEMENT

Service Manual for Subway Front Counters
CAUTION: For front counters with curved
glass, these screws fasten the
glass extrusion to the top of the
front counter. Loosen the screws
above only one panel at a time.
4. Lift up on the Décor Panel and pull the bottom
of the panel away from the front of the unit.
4. Remove the Décor Panel from the unit.
5. Move to the Operator's side of the counter
and remove the Lower Functionality Shelf.
NOTICE: On older versions of the counter, the
Louvered Front Vent Panel is held in place with
four Phillips screws. On newer versions, the
Louvered Front Vent Panel lifts off.
6. Remove the Louvered Front Vent Panel.
Condensing Unit Slide Plate Bolt
7. Remove the slide plate bolt.
8. Slide the Condensing unit forward enough to
expose the Manifold area.
NOTICE: If the unit has a thermostat with ¼" copper
capillary mounted on the manifold, simply change
out the thermostat. If not continue to step 9.
9. Tag and disconnect the Thermostat wiring.
