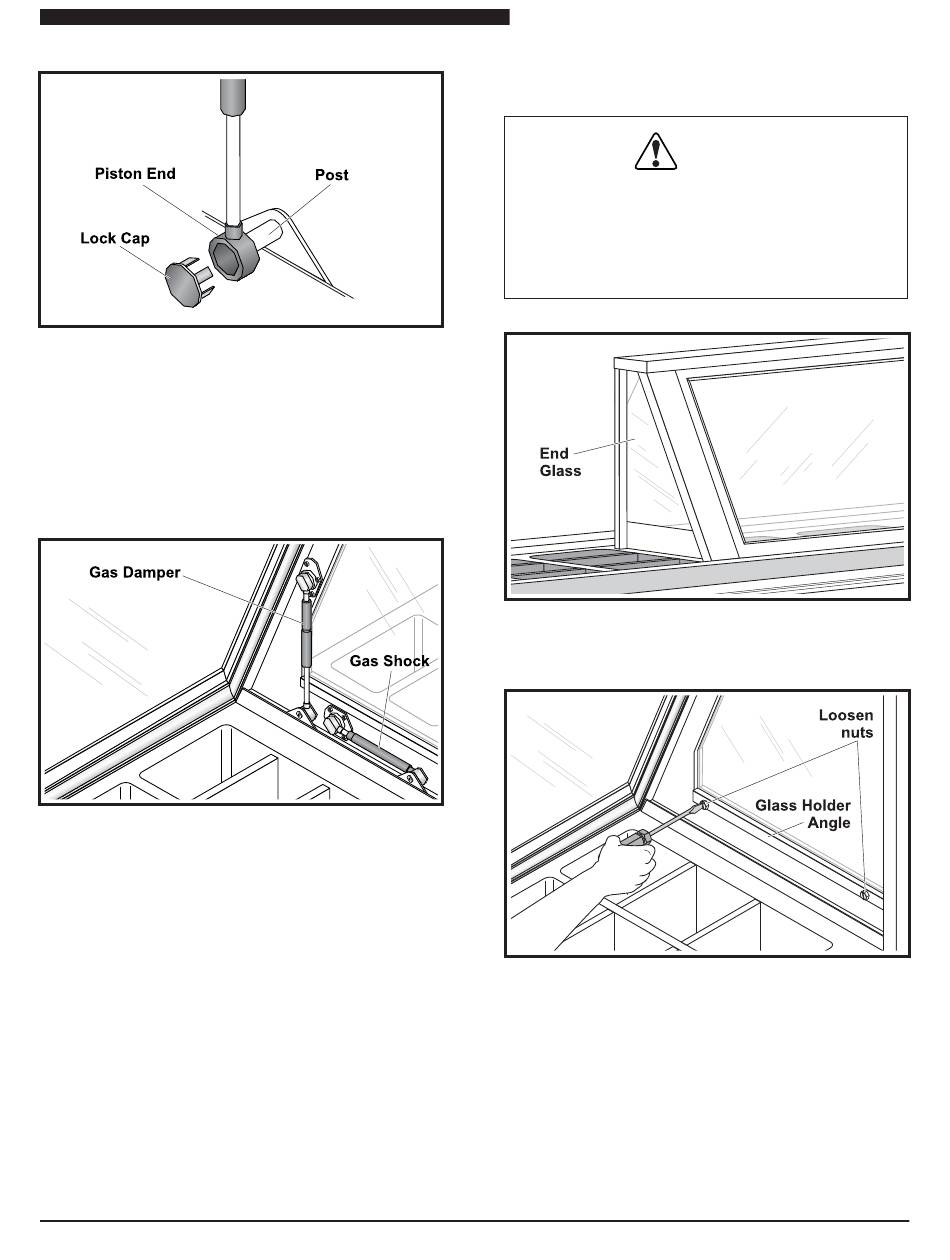

Piston End Installed
7. Exert up-ward pressure on the piston end of
the Gas Shock or Gas Damper while mounting
it onto is Mounting Ball.
8. Reinsert the Lock Cap. This holds the piston
in place.
Properly Installed Gas Dampers and Gas
Shocks
Service Manual for Subway Front Counters
End Glass – Tri Channel Unit
WARNING:
THE POWER MUST BE TURNED OFF
AND DISCONNECTED AT ALL TIMES
DURING MAINTENANCE OR REPAIR
FUNCTIONS.
End Glass on Tri-Channel Unit
Glass Holder Angle Nuts
1. Remove all food products from area before
beginning this procedure.
2. Loosen the nuts on the bottom Glass Holder
Angle. Do not remove the angle.
21
