OPERATION AND INSTALLATION MANUAL for

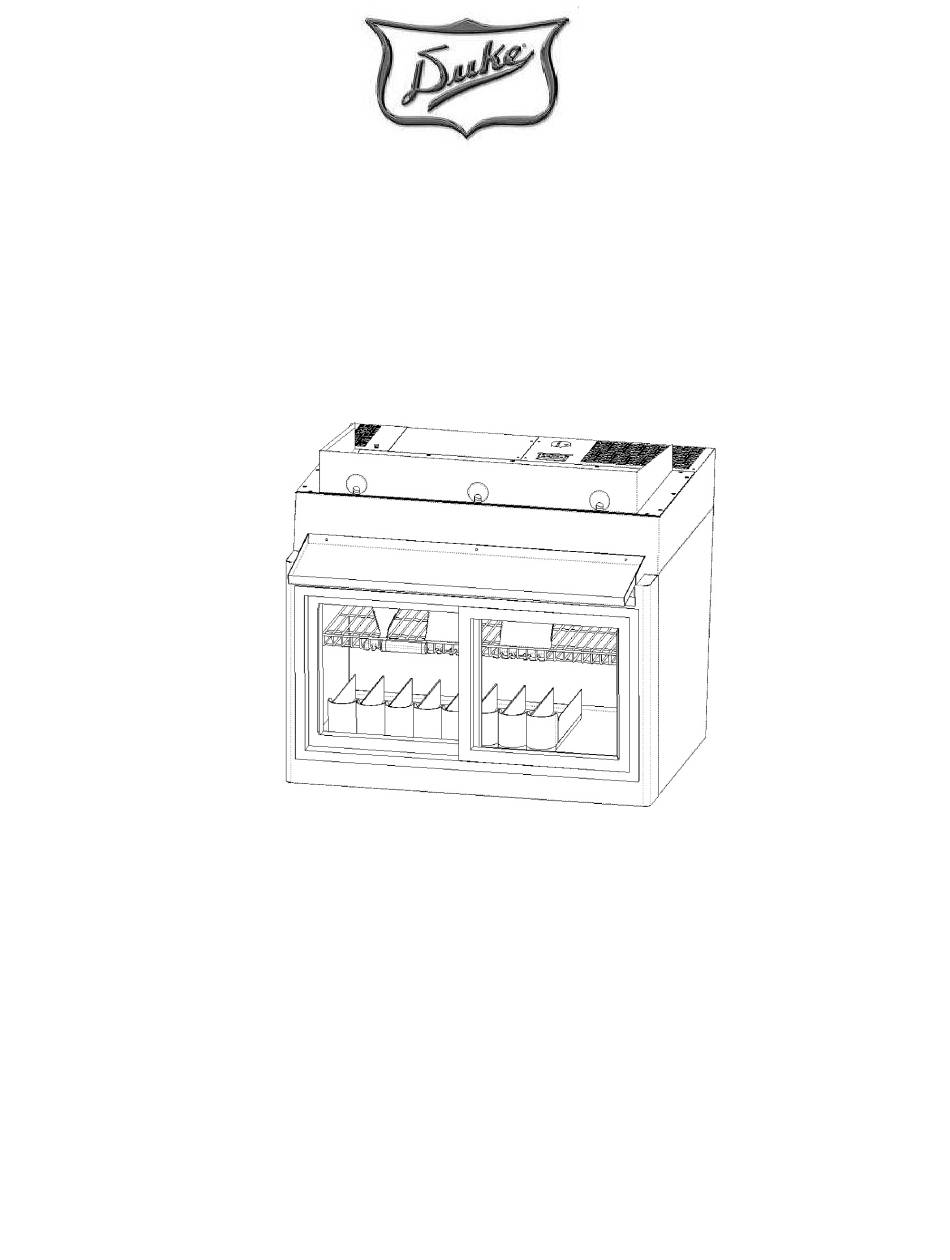

OVERHEAD REFRIGERATED MERCHANDISER OHRM-39
OHRM-39
Please read this manual completely before attempting
to install, operate or service this equipment
This manual is Copyright ©2012 Duke Manufacturing Company. All rights reserved.
Reproduction without written permission is prohibited. Duke is a registered
trademark of the Duke Manufacturing Company.
Duke Manufacturing Company
2305 N. Broadway
St. Louis, MO 63102
Phone: 314-231-1130 Toll Free: 1-800-735-3853
Fax: 314-231-5074
www.dukemfg.com
229240
1
03/28/14
Advertisement
Table of Contents
Related Manuals for Duke OHRM-39
Summary of Contents for Duke OHRM-39
- Page 1 Please read this manual completely before attempting to install, operate or service this equipment This manual is Copyright ©2012 Duke Manufacturing Company. All rights reserved. Reproduction without written permission is prohibited. Duke is a registered trademark of the Duke Manufacturing Company.
- Page 2 IMPORTANT WARNING AND SAFETY INFORMATION WARNING: READ THIS MANUAL THOROUGHLY BEFORE OPERATING, INSTALLING OR PERFORMING MAINTENANCE ON THE EQUIPMENT. FAILURE TO FOLLOW INSTRUCTIONS IN THIS MANUAL CAN CAUSE PROPERTY DAMAGE, INJURY OR DEATH. DO NOT STORE OR USE GASOLINE OR OTHER FLAMMABLE VAPORS OR LIQUIDS IN THE VICINITY OF THIS OR ANY OTHER APPLIANCE.
-
Page 3: Table Of Contents
Table of Contents: Introduction……………………………………………………………………………………………….. 4 Serial Number……………………………………………………………………………………………. 4 Receiving & Inspecting the Equipment……………………………………………………… 5 Specifications…………………………………………………………………………………………….. 5 Installation....................Location…………………………………………………………………………………………….. 5 Inside Unit…………………………………………………………………………………………. 6 Electrical Connection…………………………………………………………………………. 6 Operation…………………………………………………………………………………………………… 7 Location of Controls………………………………………………………………………….. 7 Operating Procedure………………………………………………………………………… 7 Maintenance....................Stainless Steel care & Cleaning………………………………………………………….. 7 Cleaning the Condensor Coil………………………………………………………………... -
Page 4: Introduction
This publication contains information regarding the installation and operation of Duke Overhead Refrigerated Merchandiser units. The information contained within applies to the model OHRM-39. Please read this manual completely before attempting to install and/or operate this equipment. Model number OHRM-39 describes the 39” wide Overhead Refrigerated Merchandiser. -
Page 5: Receiving & Inspecting The Equipment
8. Retain all shipping material until an inspection has been made or waived. SPECIFICATIONS MODEL DESCRIPTION VOLTAGE AMPS 39” Overhead Refrigerated 120 VAC (60 Hz) 12 (max) OHRM-39 Merchandiser MODEL DESCRIPTION HEIGHT WIDTH DEPTH 39” Overhead Refrigerated OHRM-39 30 In. -
Page 6: Inside Unit
0 in. sides and bottom. Open to the front. INSTALLATION – Electrical Wiring The OHRM-39 is available as a 120VAC, 60 Hz model. All electrical connections should be performed by a certified electrician and should comply with local electrical codes for your mu- nicipality. -
Page 7: Operation
OPERATION – Location of Controls The refrigeration control/temperature setting adjustment is located on the back left corner. This is the only user adjustable component on the unit. OPERATION – Operating Procedure Press and hold the (i) button to display setpoint. Keep (i) button pressed and use the up/down arrows to adjust setpoint. -
Page 8: Cleaning The Condensor Coil
Cleaning solutions need to be alkaline based or non-chloride cleaners. Any cleaner containing chlorides will damage the protective film of the stainless steel. Chlorides are also commonly found in hard water, salts and household and industrial cleaners. If cleaners containing chlorides are used, be sure to rinse repeatedly and dry thoroughly upon completion. -
Page 9: Door Care
MAINTENANCE – Cleaning the Condenser Coil – cont. If the build up on the coil consists of only light dust and debris the condenser coil can be cleaned with a simple brush, heavier dust build up may require a vacuum or even compressed air to blow through the condensor coil. -
Page 10: General Troubleshooting
GENERAL TROUBLESHOOTING Always ask and check: 1. Is the unit connected to a live power source? 2. Check the circuit breaker? 3. Is the power switch on and controller display lit up? 4. Check rating label. Are you operating the unit on the proper voltage? TROUBLE SHOOTING GUIDE 1. -
Page 11: Wiring Diagram
WIRING DIAGRAM 229240 03/28/14... - Page 12 NOTES 229240 03/28/14...
- Page 13 Duke Manufacturing Company 2305 N. Broadway St. Louis, MO 63102 Phone: 314-231-1130 Toll Free: 1- 800-735-3853 Fax: 314- 231-5074 www.dukemfg.com 229240 03/28/14...
