CCD Programming Guide

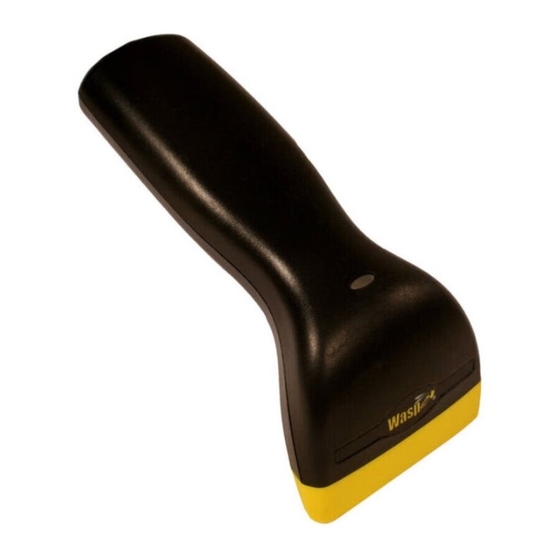

for Wasp Bar Code CCD Scanner
Note:
The Wasp CCD Scanner is ready to scan the most popular
bar codes out of the box. This manual should only be
used to make changes in the configuration of the
scanner for specific applications. This scanner does not
require software or drivers to operate. The scanner enters
data as keyboard data. Please review this manual before
scanning any of the programming bar codes in this manual.
Tech Tip
If you are unsure of the scanner configuration or have
scanned the incorrect codes, please scan the default
bar code on page 6. This will reset the scanner to its
factory settings.
Please Read
Advertisement
Table of Contents
Related Manuals for Wasp N1181
Summary of Contents for Wasp N1181
- Page 1 Wasp Bar Code CCD Scanner Please Read Note: The Wasp CCD Scanner is ready to scan the most popular bar codes out of the box. This manual should only be used to make changes in the configuration of the scanner for specific applications.
- Page 2 Wasp Technologies. The information contained in this document is subject to change without notice. Wasp is a trademark of Wasp Technologies. All other trademarks or registered trademarks are the property of their respective owners .
-
Page 3: Table Of Contents
Table of Contents Chapter 1. Introduction................1 Chapter 2. Installation................2 Chapter 3. Quick Start ................3 Chapter 4. Bar Code Symbologies............4 Chapter 5. CCD Setup & Configuration ..........5-19 Set Default ..............6 Preamble/Postamble ..........7 CCD Audio Configuration........8 Keyboard Setting ............9 CCD Scanning Control ........10 Enable Bar Code Symbologies......11-12 Code 39..............13 Interleaved 2 of 5..........14... -
Page 4: Chapter 1. Introduction
The detectors process the measurement of every bar and space using the number of adjacent photodetectors which contrast a black mark and a white space. The Wasp CCD is extremely rugged since it has no moving parts. The Wasp CCD reader supports PC AT/XT and PS/2 keyboard interfaces and easily wedges between the computer and keyboard. - Page 5 1. Turn off your computer. Plug the keyboard wedge cable into the handle of the CCD reader. 3. Unplug your PC keyboard cable and plug the male end (Din 5) of the Wasp CCD scanner directly into your PC keyboard port. Plug your keyboard cable into the other end (female Din 5) of the the Wasp CCD scanner.
-
Page 6: Chapter 3. Quick Start
Chapter 3 Quick Start Your Wasp CCD Scanner is ready to go.The default settings of the Wasp CCD Scanner have been pre-programmed for the most common bar code configurations. Use the "CCD Setup & Configuration" sections only to customize the Wasp CCD settings. Please review the 'Enable Bar Code Symbologies' configuration on pages 11 and 12 to see the list of bar code symbologies which are enabled by default. -
Page 7: Chapter 4. Bar Code Symbologies
(greater than 0.020 in./0.50 mm). Medium and low densities are the most common since these are the easiest to read (scan) with nearly all scanning devices. The Wasp CCD scanner can read bar codes with X-dimensions as low as 5 mils (0.005 in./0.127 mm). -
Page 8: Chapter 5. Ccd Setup & Configuration
Wasp CCD scanner is removed by turning off your PC. In order to configure the Wasp CCD, three basic steps need to be followed for each programmed setting: (1) Scan the 'Begin' bar code with the Wasp CCD reader to select... -
Page 9: Set Default
Tip: Use this option to restore the factory default settings if you are unsure of your CCD’s configuration. The 'Set Default' configuration is very useful when you need to reprogram your Wasp CCD reader after the defaults have been changed. By setting the default configuration, the user knows precisely the configuration for each programmed setting. -
Page 10: Preamble/Postamble
CCD Setup & Configuration —Preamble/Postamble Configuration The 'Preambl e / Po s t a m ble' configuration is used to add a prefix or suffix set of c h a racters to the bar code va l u e. Up to 4 characters may be added for each option separa t e l y. -
Page 11: Ccd Audio Configuration
CCD Setup & Configuration —CCD Audio Configuration: Begin Scanner Volume High* Beep On/Off *Default... -
Page 12: Keyboard Setting
CCD Setup & Configuration —Keyboard Setting Configuration The 'Case Sensitivity' setting provides specific options on how to pass your data to the keyboard buffer. 'Case Sensitive' is the default and does not toggle upper to lower case letters. 'Ignore Case' transmits only lower case letters. Either 'Case Sensitive' or 'Ignore Case' can be enabled, but not both simultaneously. -
Page 13: Ccd Scanning Control
LEDs (i.e. the CCD photodetectors) are on, and activates auto scanning. The Wasp CCD has two (2) options to control this configura t i o n . Only one option can be enabled at a time. -
Page 14: Enable Bar Code Symbologies
CCD Setup & Configuration —Enable Bar Code Symbologies Configuration The 'Enable Bar Code Symbologies' configuration is used to enable or disable the various codes that the reader is able to scan. Multiple bar code symbologies can be enabled simultaneously. Begin Code 39 Interleaved 2 of 5 Codabar... - Page 15 CCD Setup & Configuration —Enable Bar Code Symbologies Configuration The 'Enable Bar Code Symbologies' configuration is used to enable or disable the various codes that the reader is able to scan. Multiple bar code symbologies can be enabled simultaneously. Begin Code 128 EAN/8 EAN/8 2 digit add-on...
- Page 16 CCD Setup & Configuration —Code 39 Configuration Code 39 is the most frequently used symbology in industrial bar code systems t o d ay and is ex t e n s i vely used within the Department of Defense (DOD). T h e p rincipal feature is to encode messages using the full alphanu m e ric character set.
- Page 17 CCD Setup & Configuration —Interleaved 2 of 5 Configuration I n t e rl e aved 2 of 5 is a va ri a ble length, nu m e ric bar code with an even number of d i g i t s. It is typically used in industrial and master carton labeling and also in the a u t o m o t i ve industry.
- Page 18 CCD Setup & Configuration —Codabar Configuration Codabar is a va ri a ble length symbology capable of encoding up to 16 chara c t e r s. Codabar can encode six special alphanu m e ric chara c t e r s, capital letters A through D, T, N, *, E, and all nu m e ric digits.
- Page 19 CCD Setup & Configuration —UPC-A Configuration UPC-A (Universal Product Code-A) is a fixed length symbology and is the most common bar code used for retail product labeling. It is seen in most gr o c e ry stores across the United States. The symbology encodes a 12-digit, nu m e ri c - o n l y nu m b e r.
- Page 20 CCD Setup & Configuration —UPC-E Configuration UPC-E (Universal Product Code-E) is also a fixed length symbology and is a compressed six digit code used for marking small packages including magazines and paperback books. UPC-E symbols are UPC-A symbols that have been ze r o suppressed (i.e.
- Page 21 CCD Setup & Configuration —EAN/JAN-13 Configuration E A N / JAN-13 (European Article Number/Japanese Article Number) is a fixe d length symbology and is similar to the UPC-A symbology, but encodes a 13th d i g i t . The nominal height for the EAN/JAN-13 bar code is one inch. Begin Convert to ISBN Convert to ISSN...
-
Page 22: Ean/Jan-8
CCD Setup & Configuration —EAN/JAN-8 Configuration The EAN/JAN-8 is a fixed length symbology and is similar to the UPC-E code, but includes two more digits for the country code. The nominal height for the E A N / JAN-8 bar code is one inch. Begin Convert to EAN/13 Transmit Check Digit... - Page 23 CCD Setup & Configuration —Bar Code Test Symbols—Appendix A Note: Make sure that the appropriate bar code symbology is configured properly and enabled before trying to scan. Use the 'Enable Bar Code Symbologies' configuration on page 11-12 to enable specific symbologies. Code 39 (Default: Enabled) Interleaved 2 of 5...
-
Page 24: Appendix A. Bar Code Test Symbols
CCD Setup & Configuration —Bar Code Test Symbols—Appendix A (cont.) UPC-A (Default: Enabled) UPC-A 5 digit supplement (Default: Disabled) UPC-A 2 digit supplement (Default: Disabled) UPC-E (Default: Enabled) UPC-E 5 digit supplement (Default: Disabled) UPC-E 2 digit supplement (Default: Disabled) - Page 25 CCD Setup & Configuration —Bar Code Test Symbols—Appendix A (cont.) EAN/JAN 13 (Default: Enabled) EAN/JAN 13 5 digit supplement (Default: Disabled) EAN/JAN 13 2 digit supplement (Default: Disabled) EAN/JAN 8 (Default: Enabled) EAN/JAN 8 5 digit supplement (Default: Disabled) EAN/JAN 8 2 digit supplement (Default: Disabled)
-
Page 26: Appendix B. Preamble/Postamble Addition Table
CCD Setup & Configuration —Preamble/Postamble Addition Table—Appendix B Use this table to add preamble and postamble characters to your bar code value. Make sure that you scan the two bar codes associated with each ASCII character on page 25 before preceding to the next character. Up to seven ASCII characters can be added. - Page 27 CCD Setup & Configuration —Preamble/Postamble Addition—Appendix B (cont.) Preamble/Postamble Addition Table (cont.) Code ASCII Code ASCII Code ASCII Null Enter* *Enter Key of the numeric keypad...
- Page 28 CCD Setup & Configuration —Preamble/Postamble Addition—Appendix B (cont.)
- Page 29 CCD Setup & Configuration —Preamble/Postamble Addition—Special Characters Use these barcodes to add special preamble and postamble characters to your bar code value. For example, to add a Control, Function 1 as a postamble: • Scan 'Begin' and 'Postamble' on page 7 •...
-
Page 30: Appendix C. Additional Scanner Functions
CCD Setup & Configuration —Additional Scanner Functions—Appendix C Your Wasp Bar Code CCD Scanner can perform additional functions, such as: 1. Negative image bar code scanning 2. Code identification 3. Advanced data editing Call our support department for more details and programming materials if you... -
Page 31: Product Support
In no event shall Wasp Technologies be liable for consequential damages. S o m e s t a t e s, prov i n c e s, and countries do not allow the exclusion or limitation of incidental...
