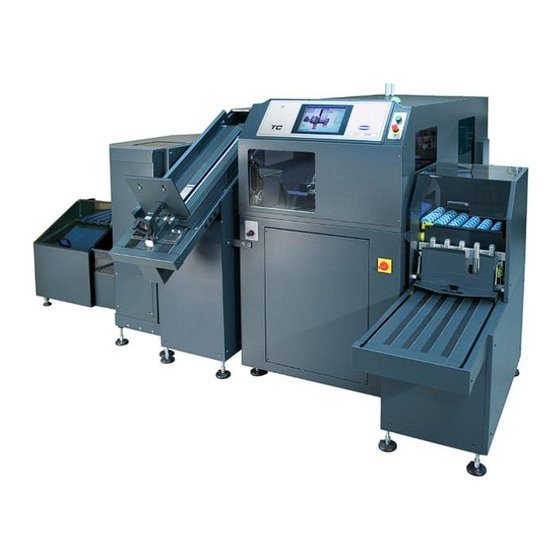

Three-knife trimmer
Hide thumbs Also See for CMT-330TC:
Table of Contents

Advertisement

Quick Links

Download this manual
CMT-330TC
Three-Knife Trimmer
Service Manual
Serial Numbers: 330TC-A-161000 and up
CAUTION
Certain components in the CMT-330TC are sus-
ceptible to damage due to electrostatic dis-
charge. Observe all ESD procedures to avoid
component damage.
FX.033TCA
Issued:
July 2017
Last Revised:
12/16/2019
CMT-330 Three-Knife Trimmer
THE CHALLENGE MACHINERY COMPANY
SERIAL No.: ____________________
FX.033TCA / DEC 2019
