CHALLENGE
18V Li-ion Cordless Grass Trimmer
Original Manual
N0E-15ET-230
Important
- Please read these instructions fully before starting assembly and using.
These instructions contain important information that will help you get the best from your grass
trimmer, ensuring it is assembled correctly and safely.
If you need help or have damaged or missing parts, call the Customer Helpline on 01904 727508
prior to returning product to store.
Aug 2017 Rev B

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the N0E-15ET-230 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Challenge N0E-15ET-230

Summary of Contents for Challenge N0E-15ET-230

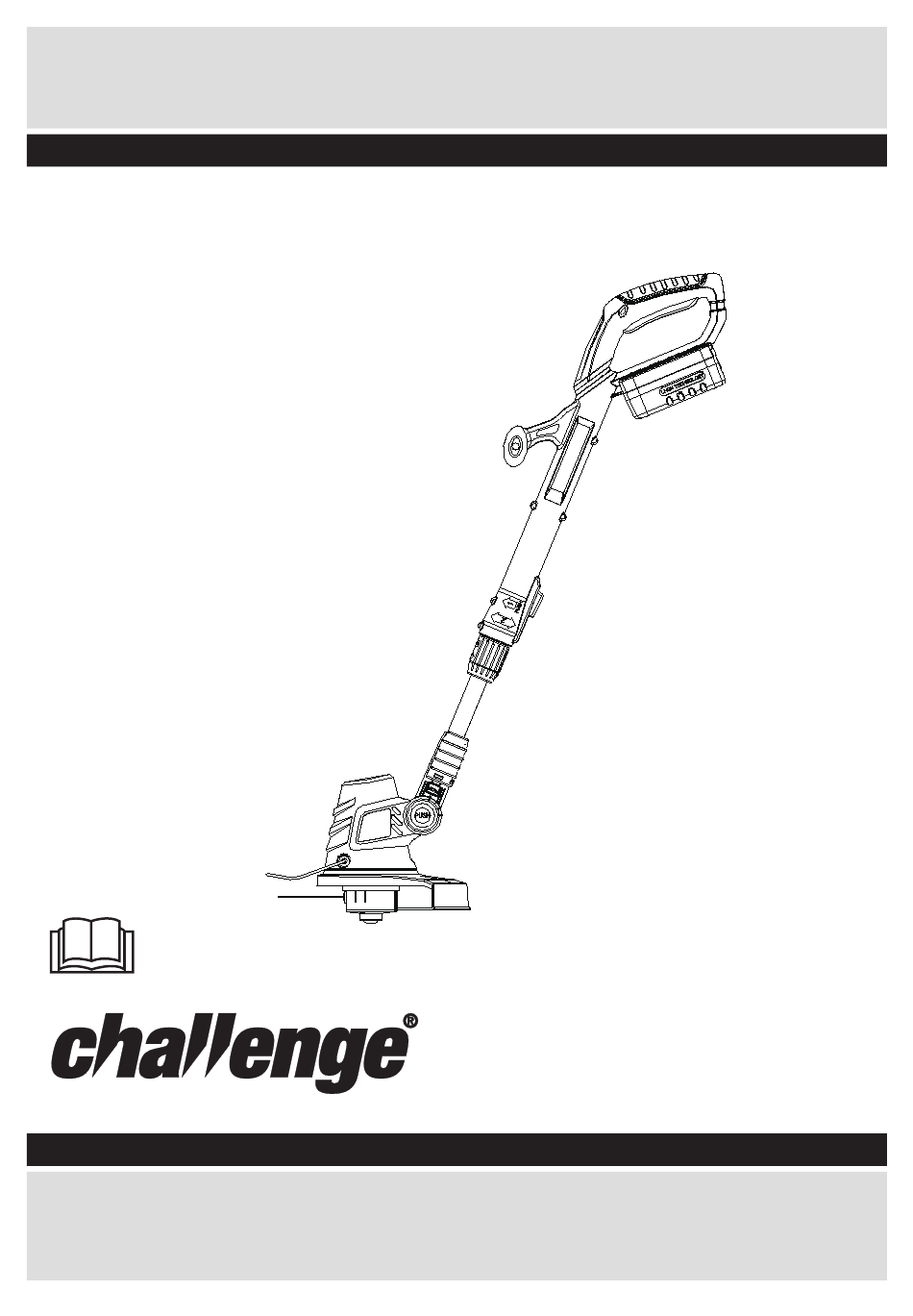

  • Page 1 CHALLENGE 18V Li-ion Cordless Grass Trimmer Original Manual N0E-15ET-230 Important - Please read these instructions fully before starting assembly and using. These instructions contain important information that will help you get the best from your grass trimmer, ensuring it is assembled correctly and safely.

  • Page 2: Table Of Contents

    Contents Introduction ..............................3 Safety Information .............................3 Parts list ................................10 Assembly.................................11 Operation.................................14 Maintenance and Storage..........................17 Troubleshooting...............................19 Technical Data..............................20 Recycling and Disposal............................21 Guarantee................................22 Customer Helpline 01904 727508 www.coreservice.co.uk...

  • Page 3: Introduction

    Thank you for purchasing a CHALLENGE grass trimmer. We hope you are completely satisfied with your new product and hope you will enjoy using this tool for many years. Your N0E-15ET-230 Grass Trimmer has been designed for trimming light foliage and is intend for domestic use only.
  • Page 4 Safety Information Important - Please read these instructions fully before starting assembly General Power Tool Safety Warnings 8. Head protection. Always use safety glasses and gloves. Use a face or dust mask whenever the operations may produce dust or flying particles. Wear ear protection whenever the sound level seems uncomfortable.
  • Page 5 Safety Information Additional safety instructions for batteries and chargers Batteries WARNING! The use of attachments or accessories not recommended by the manufacturer of this tool, can result in serious personal injury. 1. Never attempt to open for any reason. 2. Do not expose to water. 3.
  • Page 6 Safety Information Chargers 1. Charger’s plug must match the outlet. Never modify the plug in any way. Unmodified plug sand matching outlets will reduce risk of electric shock. 2. Use your charger only to charge batteries of the type supplied with your tool.
  • Page 7 Safety Information Additional safety instructions for grass trimmers 10. Always check the good working order of the trimmer which, if not adequate, could endanger the user. 11. Never operate the trimmer with damaged guards or without the guards in place. 12.
  • Page 8 Safety Information Warning Symbols Warning! Conform to all relevant safety standards. Read the instruction manual before use. Wear ear protection. Wear eye protection. Wear dust mask. Keep other people out of working area during operation. A distance of at least 15 m must be observed. Keep bystanders away.
  • Page 9 Safety Information Warning symbols on the charger Before use, carefully read through the user manual. The charger is for indoor use only. Protection class II. Pole orientation. Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist. Check with your Local Authority or retailer for recycling advice.

  • Page 10: Parts List

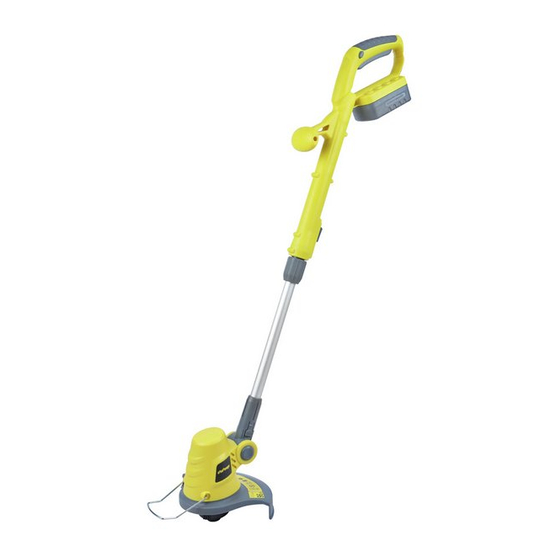

    Parts list Parts description On/Off trigger Main Switch Front Handle Upper Tube Edge Button Battery Pack Charger Charging Station LED (Indicators on Charger) Telescopic Knob Motor Housing Cutting angle adjustment Protection Guard Line Blade Plant Guard Spool Head Customer Helpline 01904 727508 www.coreservice.co.uk...

  • Page 11: Assembly

    Assembly Preparing to assemble the grass trimmer NOTE: Before using the tool, read the instruction book carefully. Charging the battery WARNING! The charger and battery pack are specifically designed to work together so do not attempt to use any other devices. Never insert or allow metallic objects into your charger or battery pack connections because an electrical failure and hazard will occur.
  • Page 12 Assembly Charging procedure Important charging notes Longest life and best performance can be obtained if the battery pack is charged when the air temperature is between 18-24 C. Do not charge the battery pack in a very low or very high air temperature.
  • Page 13 Assembly Install the guard 1. Remove two screws from the motor housing. 2. Slide the guard over the motor housing. 3. Re-insert two screws into the guard and tighten. 4. Place the two ends of the plant guard into two holes on both sides on the motor housing. WARING! Take care to have a look at the yellow warning label and rip off before use.

  • Page 14: Operation

    Operation Starting Before starting the grass trimmer for the first time, check that the nylon lines touch or pass over the wire cutting blade. If they are not long enough: 1. Take off the battery pack from machine. 2. Press the spool button 3.
  • Page 15 Operation Switch on/ off Switching the trimmer on: Press and hold the safety lock-off button (C) and then press the trigger (D) on the handle. Release the safety lock-off button (C) again. Switching the trimmer off: Release the trigger (D) on the handle. Setting the cutting angle The angle of the handle can be set to 4 different working positions.
  • Page 16 Operation Cutting guide WARNING! Always wear eye protection. Never lean over the trimmer head. Rocks or debris can bounce or be thrown into eyes and face and cause blindness or other serious injury. When operating the unit, check for the following: Wear eye protection and protective clothing.

  • Page 17: Maintenance And Storage

    Maintenance and Storage Replace the spool WARNING! Before replacing the spool, always switch off the machine and take off the battery pack! RISK OF INJURY! Cutting elements continue to rotate after the motor is switched off. Do not try to stop the cutting device (nylon blade) with your hands.
  • Page 18 Maintenance and Storage Replace the spool To test if the line is advancing properly, push the button with your thumbs while pulling the wire with your fingers. The line should advance freely. Option 2: replacing line Attention! Please use diameter 1.2mm or 1.4mm line. Line for your trimmer is available at extra cost from your local dealer or the customer support service: 1.

  • Page 19: Troubleshooting

    Troubleshooting Troubleshooting Although your new cordless grass trimmer is really easy to operate, if you do experience problems, check the following: Tool runs slowly • Check that the spool housing can rotate freely. Carefully clean it if necessary. • Check that the cutting line does not protrude more than 9 cm from the spool housing. If it does, cut it off so that it just reaches the line trimming blade.

  • Page 20: Technical Data

    Technical data Technical Data Table Model M0E-15ET-410 Voltage 18VDC Battery type Lithium-Ion No load speed 8000/min Cutting width 23cm Battery pack Model ET-D1806 Battery type Lithium-Ion Battery capacity 1.5Ah Charging time Approx. 4 Hours Charger Model JLH122100400B Rated Voltage 100-240VAC 50-60Hz Nominal Consumption Output Voltage of Charger 21V DC...

  • Page 21: Recycling And Disposal

    Technical Data Noise and vibration data WARNING! Depending on the actual use of the product the vibration values can differ from the declared total! Adopt proper measures to protect yourself against vibration exposures! Take the whole work process including times the product is running under no load or switched off into consideration! Proper measures include among others regular maintenance and care of the product and cutting attachments, keeping hands warm, periodical breaks and proper planning of work processes! Recycling and Disposal...

  • Page 22: Guarantee

    Guarantee Dear Customer, In the unlikely event that your device develops a fault, please contact our Customer service department on the telephone number shown below. 1. These guarantee terms cover additional guarantee rights and do not affect your statutory warranty rights.
