SupaScoota SPRINT User Manual

SupaScoota SPRINT User Manual

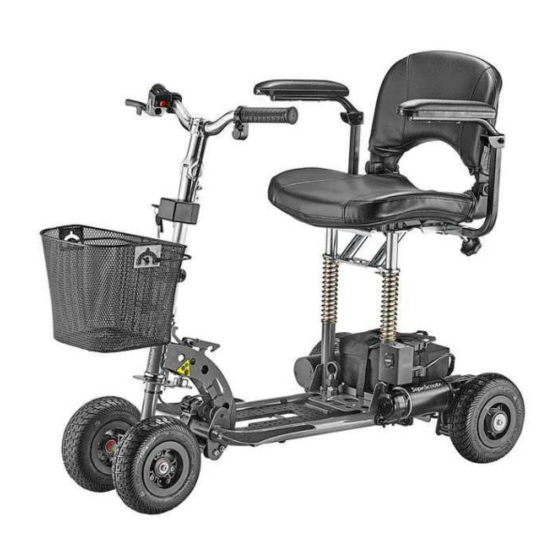

Motorized vehicle

Advertisement

Motorized vehicle
Heavy Duty (HD-02)
SPRINT
MDSS GmbH
Schiffgraben 41
30175 Hannover, Germany
Distributor:
User Manual
You must read this manual before using your SupaScoota
P/N: 903441HD02
Rev. 01/20

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SPRINT and is the answer not in the manual?

Questions and answers

Summary of Contents for SupaScoota SPRINT

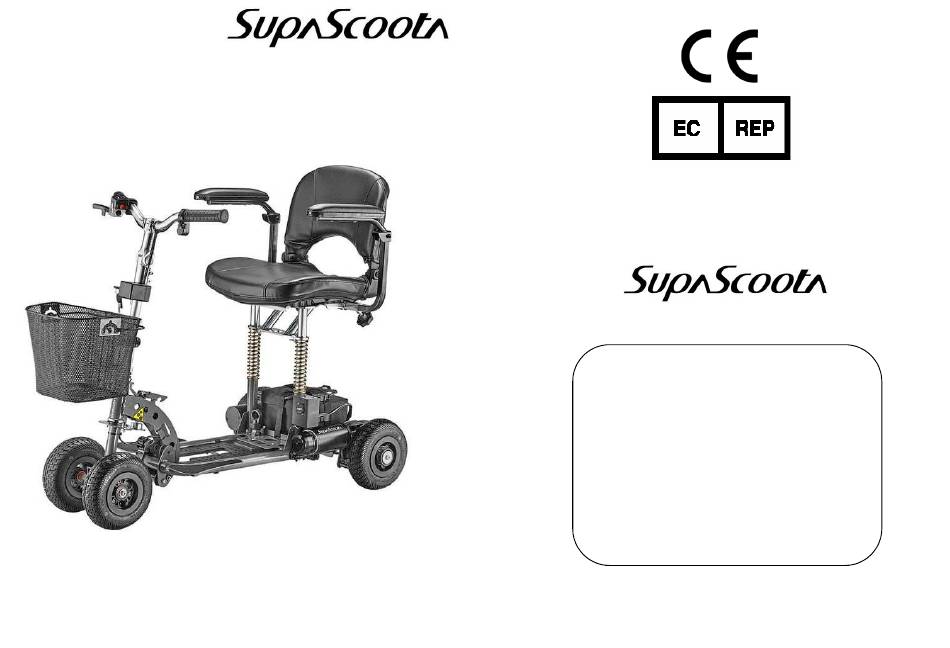

  • Page 1 Motorized vehicle Heavy Duty (HD-02) SPRINT MDSS GmbH Schiffgraben 41 30175 Hannover, Germany Distributor: User Manual You must read this manual before using your SupaScoota P/N: 903441HD02 Rev. 01/20...
  • Page 2: Table Of Contents

    SupaScoota Warranty - - - - - - - - - - - - - - - - - - - - - - - - - - - - 38...
  • Page 3: Safety Symbols, Words And Labels

    This could damage your SupaScoota. situation which, if not avoided, could result in ● Do not use the SupaScoota on slopes over 8 degrees. death or serious injury. ● Do not drive on slopes when the yellow battery light is on.
  • Page 4 D. MOTOR VEHICLE SAFETY i. Never sit in this scooter while in a moving vehicle. In an accident or sudden stop you may be thrown from the scooter. A. ENVIRONMENTAL CONDITIONS WARNING: The scooter is ii. Always move to an approved vehicle seat. You must be not designed for use in a heavy rain storm, or in snowy or icy secured with proper motor vehicle restraints.
  • Page 5: Electromagnetic Interference

    ELECTROMAGNETIC INTERFERENCE i. Move your scooter as close as you can to the object you wish to reach. I t i s v e r y i m p o r t a n t t h a t y o u r e a d ii.
  • Page 6 ● Important Information 1) 20 Volts per meter (V/m) is a generally achievable and useful immunity level against interference from radio wave sources operate hand-held personal (as of May 1994) (the higher the level, the greater the communication devices such as citizens band (CB) radios, or turn ON protection);...
  • Page 7: Assemble The Seat

    “C” up as illustrated. Push the support lever in the The armrests on your SupaScoota are not designed to be load bearing. direction of the arrow until it clicks into position “E”.
  • Page 8: To Open The Supascoota

    TO OPEN THE SUPASCOOTA ● Pull the lock pin knob (V) and ● Use one hand to hold the tiller handle (D) and use the other hand turn it to the “lock” position. to push the lock pin lever per the illustration and lift the handle.
  • Page 9 For Lithium Battery ● Fit the seat on to the frame and insert the seat frame tubes into ● Pull the knob (C) backward and have the corresponding holes on the main frame. 2 block (A) Insert into slots (B) as illustrated direction then push battery module downward until you hear click sound, the locking into cam locker.
  • Page 10: Anti-Tip Wheel

    Return the sliding tube to position “P” for transportation or disassembly. ● Inflate the tyres to the maximum of 40 PSI. The partition board (PB) on your Supascoota is not designed to load bearing. Have your feet always stay on the footrest (F) per indicated above.
  • Page 11: Drive Wheel Release Mechanism

    DRIVE WHEEL RELEASE MECHANISM CRUISE CONTROL, LIGHTS AND SWITCHES ● This scooter is equipped with drive wheel release mechanism. Your SupaScoota can be moved manually after the drive wheels are released. Do not operate this device on slope. To disengage the drive wheels...
  • Page 12: Auto Switch Off Electronic System

    AUTO SWITCH OFF ELECTRONIC SYSTEM ● The electronic system of this scooter is protected by a digital over current cut-off system. If your SupaScoota stops, you will need to Do not use cruise control: turn the main key switch to the “Off” position, and then switch to ●...
  • Page 13: Electronic Stability Control (Esc)

    The speed of the SupaScoota is now electronically governed in direct proportion to the rotation of the handle bars, virtually eliminating any possibility of over speeding when turning.
  • Page 14: Spare Lithium Battery Optional

    SWITCH THE BATTERY TYPE Assemble the battery tray as illustrated. Insert the screws and tighten the nuts. When using a lithium battery it is recommended This scooter can be used either SLA or lithium battery. To meet the that you place your lithium battery on rear tray of the scooter and right voltage to the battery gauge, it is allowed to set by following your SLA battery on the front tray.
  • Page 15: How To Clean The Scooter

    ● Do not store your scooter outside without adequate protection. ● Keep the shipping carton in dry place after unpacking your SupaScoota in case it needs to be shipped for service. ● This appliance is not intended for use by persons (including...
  • Page 16 ● Remove front basket from scooter. ● Press the lock tab of connector and pull out to disconnect the connector as per ● Remove the seat. illustration. For SLA Battery Frame Disassembly ● Unplug the battery Disassembly is best carried out by pulling the locking pin C and connector, undo the strap allowing the tiller assembly to fold as arrow direction until it rests on and remove the SLA battery.
  • Page 17: Charge Battery

    CHARGE BATTERY ● When you get your new battery put it on charge for at least 24 hours. ● When recharging your battery, always charge for at least 12 hours or until the light on the charger turns green. It is best to charge for at least another hour after the light turns green.
  • Page 18: Battery Charger

    Or remove the battery from scooter, and use the connection Travel distance from battery indicator & Cycles life adaptor. (Optional accessory) Green Yellow Items Cycle life Do not place the battery on a concrete floor for charging. light light light (battery’s) Battery Type Raise the battery off the concrete with wooden blocks or similar...
  • Page 19: Battery Care & Maintenance

    BATTERY CARE & MAINTENANCE SLA BATTERY WIRING DIAGRAM Important notes to help prolong the life of the battery: • Before the first use of your battery, put it on charge for 24 hours. ● SLA battery 15ah • Do not place the battery on a concrete floor for charging, have 2 x 12V 15ah the battery raised off the floor on wooden blocks or place the battery on a shelf.
  • Page 20: Specifications

    Specifications Number of Wheels SupaScoota Warranty Front Wheel Size 200mm (8”) Your SupaScoota is fully guaranteed against faults arising due to Rear Wheel Size 200mm (8”) defects in manufacture or materials as follows 60mm (2.4”) Ground Clearance (tiller) Frame: 2 years.
  • Page 21 This warranty record must be kept by the purchaser and a copy supplied with any claim I / we acknowledge that the SupaScoota has been delivered in good order and operating condition and that I / we have been instructed in the care and maintenance, safe operation and proper use of the unit.

This manual is also suitable for:

Hd-02
