Summary of Contents for SupaScoota SPARTAN

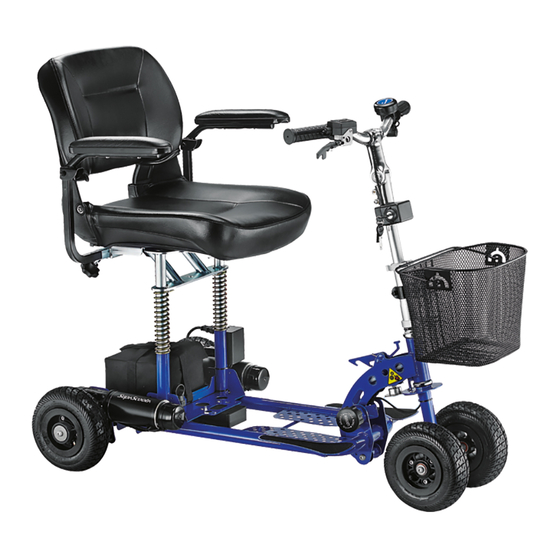

- Page 1 Motorized vehicle SUMO SPARTAN MDSS GmbH Schiffgraben 41 30175 Hannover, Germany Distributor: User Manual You must read this manual before using your SPARTAN P/N: 9034595 Rev. 01/20...
-
Page 2: Table Of Contents
Precaution - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 28 Fold the Spartan - - - - - - - - - - - - - - - - - - - - - - - - - - -28... -
Page 3: Safety Symbols, Words And Labels
SAFETY INSTRUCTIONS SAFETY SYMBOLS, WORDS AND LABELS What You Need to Know About Safety Instructions ● Please read this manual before using your SUMO. ● Check the frame lock and all clamps before using your SUMO. Warning and Important Safety Instructions appeared in this manual ●... - Page 4 D. MOTOR VEHICLE SAFETY i. Never sit in this scooter while in a moving vehicle. In an accident A. ENVIRONMENTAL CONDITIONS WARNING: The scooter is not or sudden stop you may be thrown from the scooter. designed for use in a heavy rain storm, or in snowy or icy ii.
-
Page 5: Electromagnetic Interference
ELECTROMAGNETIC INTERFERENCE i. Move your scooter as close as you can to the object you wish to reach. I t i s v e r y i m p o r t a n t t h a t y o u r e a d ii. - Page 6 ● Important Information operate hand-held personal 1) 20 Volts per meter (V/m) is a generally achievable and useful immunity level against interference from radio wave sources (as of communication devices such as citizens band (CB) radios, or turn ON May 1994) (the higher the level, the greater the protection); personal communication devices and cellular phones while the motorized scooter is turned ON.
-
Page 7: Assemble The Seat
“C” up as illustrated. Push the support lever in the The armrests on your Spartan are not designed to be load bearing. direction of the arrow until it DO NOT PUT EXCESSIVE WEIGHT ON THE ARMRESTS clicks into position “E”. -
Page 8: To Open The Spartan
TO OPEN THE SPARTAN ● Use one hand to hold the tiller handle (D) and use the other hand to push the lock pin lever per the illustration and lift the handle. Pull the tiller lock (C) and turn it clockwise. Continue lifting the tiller until you hear the “click”, the locking into position. - Page 9 For Lithium Battery ● Fit the seat on to the frame and insert the seat frame tubes ● Pull the knob (C) backward and have into the corresponding holes on the main frame. 2 block (A) Insert into slots (B) as illustrated direction then push battery module downward until you hear click of locked into cam locker.
-
Page 10: Anti-Tip Wheel
Ensure that the anti-tip wheels are extended and locked in the position “Q” when driving on sloping ground. (Per illustration below) SPARTAN : To change the locking position, just pull the knob “Q” and slide the tube to the preferred position. Position “Q” provides the greatest stability. -
Page 11: Drive Wheel Release Mechanism
DRIVE WHEEL RELEASE MECHANISM CRUISE CONTROL, LIGHTS AND SWITCHES ● This scooter is equipped with drive wheel release mechanism. Your SupaScoota can be moved manually after the drive wheels are released. Do not operate this device on slope. LH throttle is available at optional... -
Page 12: Auto Switch Off Electronic System
● The electronic system of this scooter is protected by a digital over ● In traffic conditions which are not allowed you to drive at a current cut-off system. If your SupaScoota stops, you will need to constant speed, e.g. heavy traffic, winding or bumpy roads, turn the main key switch to the “Off”... -
Page 13: Electronic Stability Control (Esc)
The speed of the SupaScoota is now electronically governed in direct proportion to the rotation of the handle bars, virtually eliminating any possibility of over speeding when turning. -
Page 14: Spare Lithium Battery Optional
SWITCH THE BATTERY TYPE Assemble the battery tray as illustrated. Insert the screws and tighten the nuts. This scooter can be used either SLA or lithium battery. To meet the When using a lithium battery it is recommended that you place your right voltage to the battery gauge, it is allowed to set by following lithium battery on rear tray of the scooter and your SLA battery on the front tray. -
Page 15: How To Clean The Scooter
● Do not store your scooter outside without adequate protection. ● Keep the shipping carton in dry place after unpacking your SupaScoota in case it needs to be shipped for service. ● This appliance is not intended for use by persons (including... - Page 16 ● Remove the front basket from scooter. ● Press the lock tab of connector and pull out to disconnect the connector as per illustration. ● Remove the seat. For SLA Battery ● Unplug the battery Frame Disassembly connector, undo the strap Disassembly is best carried out by pulling the locking pin C and and remove the SLA battery.
-
Page 17: Charge Battery
CHARGE BATTERY ● When you get your new battery put it on charge for at least 24 hours. ● When recharging your battery, always charge for at least 12 hours or until the light on the charger turns green. It is best to charge for at least another hour after the light turns green. -
Page 18: Battery Charger
Travel distance from battery indicator & Cycles life Or remove the battery from scooter, and use the connection adaptor. (Optional accessory) Items Cycle Yellow Do not place the battery on a concrete floor for charging. Raise the Green light life light light battery off the concrete with wooden blocks or similar objects. -
Page 19: Battery Care & Maintenance
BATTERY CARE & MAINTENANCE SLA BATTERY WIRING DIAGRAM Important notes to help prolong the life of the battery: • Before the first use of your battery, put it on charge for 24 hours. • Do not place the battery on a concrete floor for charging, have ●... -
Page 20: Specifications
Specifications Front Wheel Size 200mm (8”) SPARTAN Warranty Rear Wheel Size Spartan: 200mm (8”) Your SupaScoota is fully guaranteed against faults arising due to 65mm (2.6”) Ground Clearance(tiller) defects in manufacture or materials as follows Length Spartan-1110mm (43.7”) Width Frame: 2 years. - Page 21 I / we acknowledge that the SupaScoota has been delivered in good order and operating condition and that I / we have been instructed in the care and maintenance, safe operation and proper use of the unit. Purchasers name…………………………………………………………………… Purchase date…………………………………………….
