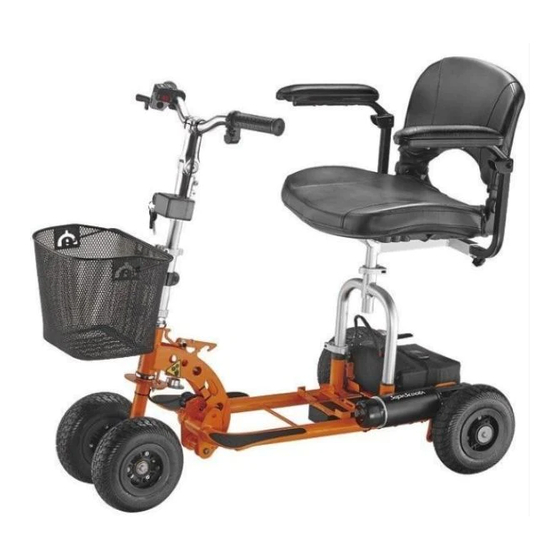

- Page 1 Motorized vehicle Standard (STD-02) Shopper MDSS GmbH Schiffgraben 41 30175 Hannover, Germany Distributor: SUPASCOOTA USA www.supascootaUSA.com User Manual P/N: 903441STD02 Rev. 04/15 You must read this manual before using your SupaScoota...
-
Page 2: Table Of Contents
Folding the SupaScoota- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -23... -
Page 3: Safety Instructions
● Read this manual before using your SupaScoota. Warning and Important Safety Instructions appearing in this manual are ● Check the folding lock and all clamps before using your SupaScoota. not meant to cover all possible conditions and situations that may occur. - Page 4 D. MOTOR VEHICLE SAFETY i. Never sit in this scooter while in a moving vehicle. In an accident or sudden stop you may be thrown from the scooter. A. ENVIRONMENTAL CONDITIONS WARNING: The scooter is not ii. Always move to an approved vehicle seat. You must be secured designed for use in a heavy rain storm, or in snowy or icy conditions.
-
Page 5: Electromagnetic Interference
ELECTROMAGNETIC INTERFERENCE i. Move your scooter as close as you can to the object you wish to reach. I t i s v e r y i m p o r ta n t t h a t y o u r e a d t h i s ii. - Page 6 ● Important Information Do not operate hand-held personal communication devices such as citizens band (CB) radios, or turn ON personal 1) 20 Volts per meter (V/m) is a generally achievable and useful immunity level against interference from radio wave sources (as of communication devices and cellular phones while the motorized May 1994) (the higher the level, the greater the protection);...
-
Page 7: Assembling The Seat
(C) and turn it clockwise. Continue lifting the tiller until you hear the “click” of the pin locking into position. The armrests on your SupaScoota are not designed to be load bearing. DO NOT PUT EXCESSIVE WEIGHT ON THE ARMRESTS... - Page 8 ● Fit the seat onto the frame, inserting the seat frame tubes into the ● Fit the front basket corresponding holes on the main frame, and then tighten the lever clamp. ● Insert arm rest as per illustration and tighten the screws. ●...
-
Page 9: Anti-Tip Wheel
ANTI-TIP WHEEL Ensure that the anti-tip wheels are extended and locked in either position “Q” or “R” when driving on sloping ground. (As per illustration below) To change the lock position, just pull the knob “Q” and slide the tube to the preferred position. -
Page 10: Drive Wheel Release Mechanism
To disengage the drive wheel Pull the drive collar (part “A”) out and turn it left or right, then release it. Your SupaScoota can be moved manually after the drive wheels are released. ● F : Forward and Reverse switch. -
Page 11: Auto Switch Off Electronic System
AUTO SWITCH OFF ELECTRONIC SYSTEM ● The electronic system of this scooter is protected by a digital over current cut-off system. If your SupaScoota stops, you will need to turn Keep fingers and clothing away the main key switch to the “OFF” position, and then switch to “ON”... -
Page 12: Front Wheel Removal (Optional)
Reassemble in the reverse order. ● Keep the shipping carton in dry place after unpacking your SupaScoota in case it needs to be shipped for service. ● This appliance is not intended for use by persons (including children) NOTE: Double check that the shaft "K" is locked in position before unfolding the frame and using the scooter. -
Page 13: Folding The Supascoota
FOLDING THE SUPASCOOTA ● Remove the arm rests from scooter. ● Remove front baskets from scooter. ● Unplug the battery connector, undo the strap and remove the battery. ● Remove the seat. - 23 - - 24 -... -
Page 14: Battery And Charging
BATTERY AND CHARGING ● Lower the tiller handles to the lowest position. ● Use one hand to hold the handle, and use other hand to pull the lock ● When you get your new battery put it on charge for at least 24 hours. ●... -
Page 15: Battery Charger (Sla Battery)
Travel distance from battery indicator & Cycles life BATTERY CARE & MAINTENANCE Green Yellow Cycle life Items light light light (battery’s) Battery Type 10 Km 3 Km 12V SLA Battery Important notes to help prolong the life of the battery: (6.2miles) (1.9 miles) Before the first use of your battery, put it on charge for 24 hours, even if... -
Page 16: Specifications
Specifications Number of Wheels SupaScoota Warranty Front Wheel Size 200mm (8”) Your SupaScoota is fully guaranteed against faults arising due to Rear Wheel Size 200mm (8”) defects in manufacture or materials as follows 60mm (2.4”) Ground Clearance (tiller) Frame: 2 years. - Page 17 I / we acknowledge that the SupaScoota has been delivered in good order and operating condition and that I / we have been instructed in the care and maintenance, safe operation and proper use of the unit. Purchasers name…………………………………………………………………………. Purchase date…………………………………………….
