I NST RUCTION M A N UA L
R E VOLV E R TA B L E
B y L e o n R a n s m e i e r

Advertisement

loading
Need help?

Need help?

Do you have a question about the REVOLVER TABLE and is the answer not in the manual?

Questions and answers

Related Manuals for Hay REVOLVER TABLE

Summary of Contents for Hay REVOLVER TABLE

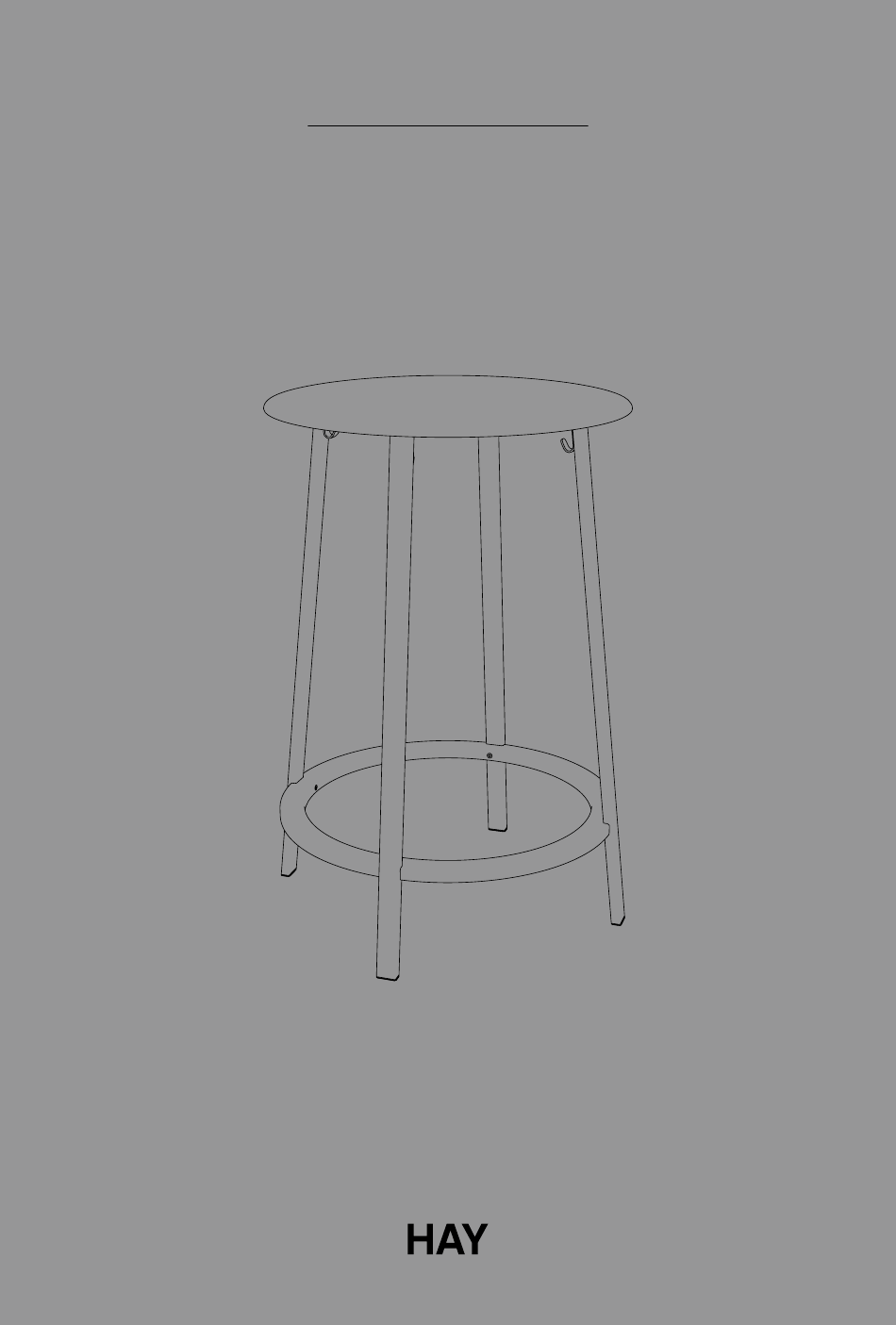

  • Page 1 I NST RUCTION M A N UA L R E VOLV E R TA B L E B y L e o n R a n s m e i e r...
  • Page 3 I N T RODUCTION Designed to accompany the family of Revolver stools, Leon Ransmeier’s Revolver Table is made in powder coated steel and features the same curved edges and sense of symmetry. In terms of functionality, the circular footrest provides support, while hooks on the table legs enable coats and bags to be hung securely underneath.

  • Page 4: Care And Maintenance

    C A R E A N D M A I N T ENA NCE CAUTION POWDER COATED STEEL With a little care you can prolong the life of your • Wipe with a clean cloth wrung in water or in a furniture.
  • Page 5 PA RTS R EVOLV ER TA BL E Top Ring (A) x 1 Leg (B) x 4 Bottom Ring (C) x 1 Table Top (D) x 1 Allen Key Large Screw (F) x 4 Allen Key Small Screw (H) x 4 Screw (I) x 8 (E) x 1 (G) x 1...
  • Page 6 Mount the Legs (B) onto the Top Ring (A).
  • Page 7 Insert the screws (F) and screw them loosely using the Allen Key Large (E) to connect the Top Ring (A) to the Legs (B). Insert the screws (H) and screw them loosely using the Allen Key Small (G) to connect the Bottom Ring (C) to the Legs (B).
  • Page 8 Fully tighten the screws (F) using the Allen Key Large (E) to fix the Top Ring (A) to the Legs (B). Fully tighten the screws (H) using the Allen Key Small (G) to secure the Bottom Ring (C) to the Legs (B).
  • Page 9 Mount the Tabletop (D) onto the Top Ring (A). Place all the screws (I) in the holes from underneath to connect the Tabletop (D) to the Top Ring (A). Tighten the screws using the Allen Key Small (G) .
  • Page 10 If necessary, adjust the gliders to make the table level.
  • Page 12 Havnen 1 8700 Horsens Denmark +45 4282 0282 / hay@hay.com ITEM NO. 706358 15032019...
