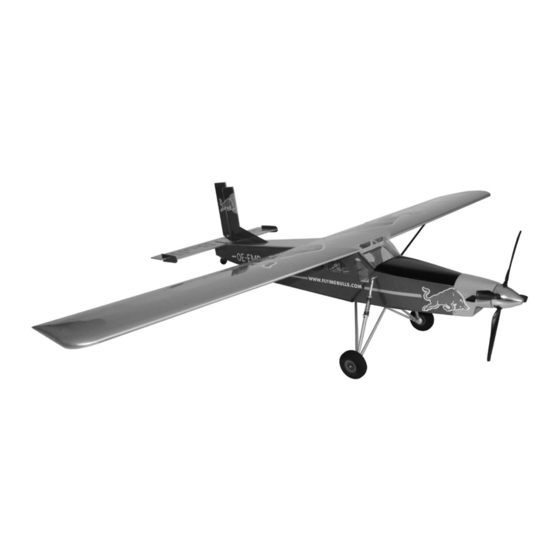

ROBBE PILATUS PC-6 ARF Building And Operating Instructions

ROBBE PILATUS PC-6 ARF Building And Operating Instructions

Advertisement

Quick Links

PILATUS PC-6
ARF
Building and
Operating Instructions
FW004002

Advertisement

loading
Need help?

Need help?

Do you have a question about the PILATUS PC-6 ARF and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for ROBBE PILATUS PC-6 ARF

  • Page 1 PILATUS PC-6 Building and Operating Instructions FW004002...
  • Page 2 Building and Operating Instructions - PILATUS PC-6 ARF No. FW004002 Contents Page Dear fellow-modeller, Congratulations on purchasing the robbe Flite- Contents work PILATUS PC-6; this version is produced Safety Notes 3, 4 by one of the world's finest model manufactu- Important notes rers.
  • Page 3 Building and Operating Instructions - PILATUS PC-6 ARF No. FW004002 Be sure to read these Safety Notes before Aircraft propellers, and all moving Ensure the equipment is protected from dust, dirt you assemble your model. Always keep to parts generally, constitute a constant and moisture contamination.
  • Page 4 Building and Operating Instructions - PILATUS PC-6 ARF No. FW004002 Liability Exclusion Operating the model • Never fly over or towards spectators or other robbe Modellsport is unable to ensure that you pilots, and maintain a safe distance from them observe the assembly and operating instruc- at all times.
  • Page 5 Building and Operating Instructions - PILATUS PC-6 ARF No. FW004002 Please check that your kit is complete before starting on assembly. Essential tools and adhesives: Models already part-assembled cannot be exchanged under gua- Cross-point screwdriver rantee. 1.5 mm and 2 mm twist drills...
  • Page 6: Essential Accessories

    Building and Operating Instructions - PILATUS PC-6 ARF No. FW004002 RC functions: Elevator, rudder, aileron, throttle Essential accessories: T6J-R2006GS 2.4 GHz FHSS 1 x F4100 S 3117 servo 4 x F1618 Motor set FW3535-920 4BL 1 x FW0083535BL Battery tape, 20 cm,...
  • Page 7 Building and Operating Instructions - PILATUS PC-6 ARF No. FW004002 1. Installing the aileron pushrod Thread a servo extension lead (No. 4645) through the wing root and connect it to the aileron servo. Wrap tape round this connection to prevent it wor- 2 mm king loose.
  • Page 8 Building and Operating Instructions - PILATUS PC-6 ARF No. FW004002 3. Installing the tailplane Glue the two "winglets" to either end of the tail- plane using cyano. PM 3 x 16 mm Glue the elevator hinges in the elevator and tail-...
  • Page 9 Building and Operating Instructions - PILATUS PC-6 ARF No. FW004002 5. Installing the tailwheel Tailwheel, 30 mm ∅ Collet, 2.1 Glue the two wire tailwheel unit supports to the mm ∅ mounting plate at the tail end of the fuselage using Ropoxi 5-minute epoxy, as shown in the illustration.
  • Page 10 Building and Operating Instructions - PILATUS PC-6 ARF No. FW004002 7. Installing the rudder pushrod Slip the rudder pushrod through the opening in the fuselage. Connect the pushrod to the rudder horn, then glue the horn permanently to the rudder using Pushrod, 1.5 ∅...
  • Page 11 Building and Operating Instructions - PILATUS PC-6 ARF No. FW004002 9. Installing the main undercarriage PM 3 x 12 mm The undercarriage is installed as shown in the drawing. 3 x 4 mm First insert the wheel legs into the appropriate...
  • Page 12 Building and Operating Instructions - PILATUS PC-6 ARF No. FW004002 11. Installing the motor Screw the motor mount to the fuselage, then fix the motor assembly to the motor bulkhead as shown, using the four PA 3 x 12 mm screws.
  • Page 13 Building and Operating Instructions - PILATUS PC-6 ARF No. FW004002 13. Cowl and canopy Slide the canopy locating lugs into the correspon- ding slot in the motor bulkhead. The canopy is se- cured on the fuselage by magnets. Glue the two dummy exhausts to the cowl using cy-...
  • Page 14: Test-Flying, Flying Notes

    Building and Operating Instructions - PILATUS PC-6 ARF No. FW004002 Test-flying, flying notes - Check that there are no loose objects, such as rags, tools or similar, in front of model, as they could be sucked into the propeller. Caution: Whenever you are working on the power system (for installation, set-up or maintenance), keep well clear of the rotational plane of the propeller - injury hazard.
  • Page 15 Building and Operating Instructions - PILATUS PC-6 ARF No. FW004002 Replacement Parts List - PILATUS PC-6 ARF Article description FW00400201 Canopy FW004012 Wing set FW004022 Fuselage set FW004042 Scale undercarriage FW004052 Cowl FW004062 Spinner FW004072 Canopy FW004082 Elevator FW004092 Rudder...
  • Page 16 Modellsport Beteiligungs GmbH Gießen / HRB 5793 · Managing Director: E. Dörr Errors and technical modifications reserved. - Copyright robbe-Modellsport 2013 Duplication and copying of the text, in whole or in part, is only permitted with the prior written approval of robbe-Modellsport GmbH & Co. KG...
