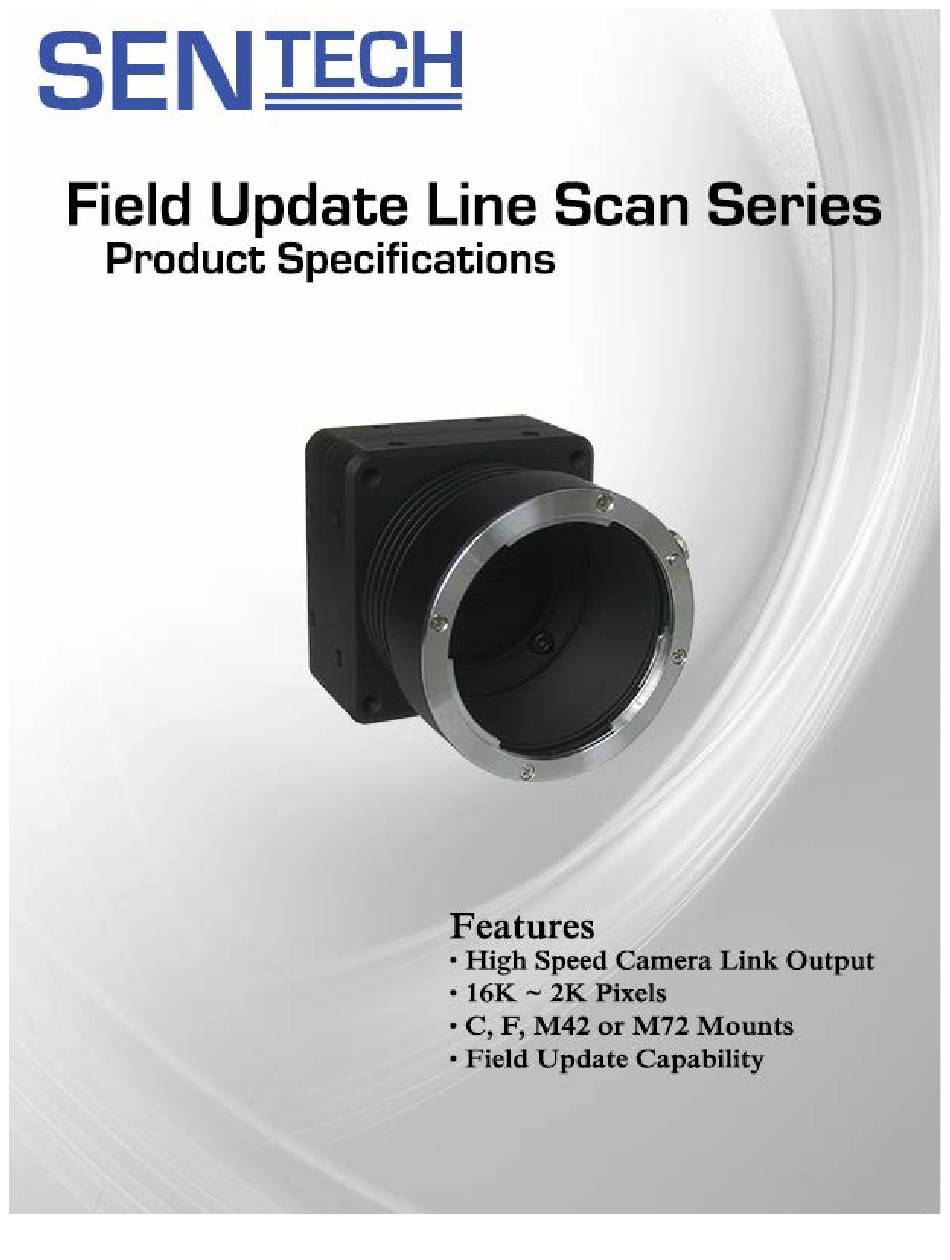

SenTech Line Scan Series Product Specifications

Hide thumbs
Table of Contents

Advertisement

Quick Links

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Line Scan Series and is the answer not in the manual?

Questions and answers

Related Manuals for SenTech Line Scan Series

Summary of Contents for SenTech Line Scan Series

  • Page 2 Monochrome Field Update Line Scan Camera Link Series Safety Precautions For U.S.A. CAUTION Warning: RISK OF ELECTRIC SHOCK This equipment generates and uses radio frequency energy and if DO NOT OPEN not installed and used properly, I.e., in strict accordance with the instruction manual, may cause harmful interference to radio communications.
  • Page 3 While every effort has been made to ensure that the details contained in Sentech America’s website and all documentation are correct and up-to-date, Sentech America assumes no liability, legal or otherwise for any errors in listings, specifications, part numbers, process, software or model applications.

  • Page 4: Table Of Contents

    Monochrome Field Update Line Scan Camera Link Series Contents 1. General Specifications............................. 6 1.1 Electronic Specifications ..........................6 1.2 Optical Specifications ............................ 6 1.3 Mechanical Specifications ..........................7 1.4 Environmental Specifications ........................7 2. Product Numbering Method ........................... 8 2.1 Order Number ............................... 8 3.
  • Page 5 Monochrome Field Update Line Scan Camera Link Series 5.4.1 Video Output format Timing Chart (Full Configuration) ................27 5.4.2 Video Output Format Timing Chart (Medium Configuration) ..............28 5.4.3 Video Output Format Timing Chart (Base Configuration) ............... 28 5.4.4 Video Output Format Timing Chart “AOI Mode” (Base Configuration) ..........28 6.
  • Page 6 Monochrome Field Update Line Scan Camera Link Series Product Specifications Ver 1.12...

  • Page 7: General Specifications

    Monochrome Field Update Line Scan Camera Link Series 1. General Specifications 1.1 Electronic Specifications Model FS-B16KU35CLU FS-B8KU7CLU FS-B8KU35CLU FS-B4KU7CLU FS-B4KU35CLU FS-B2KU7CLU Image Sensor 16k CMOS 8k CMOS 8k CMOS 4k CMOS 4k CMOS 2k CMOS image sensor image sensor image sensor image sensor image sensor image sensor...

  • Page 8: Mechanical Specifications

    Monochrome Field Update Line Scan Camera Link Series 1.3 Mechanical Specifications Model FS-B16KU35CLU FS-B8KU7CLU FS-B8KU35CLU FS-B4KU7CLU FS-B4KU35CLU FS-B2KU7CLU Dimensions 80(W) x 100(H) x 38.1(D) mm 80(W) x 58(H) x 26.5(D) mm (excluding the connector) (excluding the connector) Lens mount M42 mount F , M42 mount F mount F mount...

  • Page 9: Product Numbering Method

    Monochrome Field Update Line Scan Camera Link Series 2. Product Numbering Method (1) Series (2) BW / Color B: Black and White C: Color (3) Number of pixels 16: 16K 8: 8K 4: 4K 2: 2K (4) Pixel Size U14: 14um U35: 35um U7: 7um (5) Line Number...

  • Page 10: Connector Specifications

    Monochrome Field Update Line Scan Camera Link Series 3. Connector Specifications 3.1 FS-B2KU7CLU B. Power Connector A. Camera Link (Base) A. Camera Link connector (Base): MDR Receptacle (3M) B. Power connector: HR10A-7R-6PB (Hirose or equivalent) This connector is for +12 Vdc to +24Vdc power input. When the camera is powered on, the LED will be lit Red.

  • Page 11: Fs-B2Ku35Clu, Fs-B4Ku7Dclu, Fs-B4Ku35Clu

    Monochrome Field Update Line Scan Camera Link Series 3.2 FS-B2KU35CLU, FS-B4KU7DCLU, FS-B4KU35CLU C. Power connector B. Camera Link (Full/Medium) A. Camera Link (Base) A. Camera Link connector (Base): MDR Receptacle (3M) B. Camera Link connector (Full/Medium): MDR Receptacle (3M) C. Power connector: HR10A-7R-6PB (Hirose or equivalent) This connector is for +12Vdc to +24Vdc power input.

  • Page 12: Fs-B8Ku7Clu, Fs-B16Ku35Clu

    Monochrome Field Update Line Scan Camera Link Series 3.3 FS-B8KU7CLU, FS-B16KU35CLU A. Camera Link (Base) C. Power Connector B. Camera Link A. Camera Link connector (Base): MDR Receptacle (3M) B. Camera Link connector (Full/Medium): MDR Receptacle (3M) C. Power connector: HR10A-7R-6PB (Hirose or equivalent) This connector is for +12Vdc to +24Vdc power input.

  • Page 13: Pin Assignment Of The Connectors

    Monochrome Field Update Line Scan Camera Link Series 3.4 Pin Assignment of the Connectors A. Camera Link Connector (Base): MDR Receptacle (3M) Pin No. Signal name Pin No. Signal name Xclk- Xclk+ SerTC+ SerTC- SerTFG- SerTFG+ CC1- (for the external sync signal input) CC1+ (for the external sync signal input) CC2+ CC2-...

  • Page 14: Bit Assignment

    Monochrome Field Update Line Scan Camera Link Series 3.5 Bit Assignment 3.5.1 Full Configuration Base connector Full connector Port/bit 8-bit x 8 Port/bit 8-bit x8 Port/bit 8-bit x 8 Port/bit 8-bit x8 Port/bit 8-bit x8 Port A0 Port C0 Port D0 Port F0 Port H0 Port A1...

  • Page 15: Medium Configuration

    Monochrome Field Update Line Scan Camera Link Series 3.5.2 Medium Configuration 10bit Mode Base connector Medium connector Port/bit 10-bit x 4taps Port/bit 10-bit x 4taps Port/bit 10-bit x 4taps Port/bit 10-bit x 4taps Port A0 Port C0 Port D0 Port F0 Port A1 Port C1 Port D1...

  • Page 16: Base Configuration

    Monochrome Field Update Line Scan Camera Link Series 3.5.3 Base Configuration 10bit Mode Base connector Port/bit 10-bit x 2taps Port/bit 10-bit x 2taps Port A0 Port C0 Port A1 Port C1 Port A2 Port C2 Port A3 Port C3 Port A4 Port C4 Port A5 Port C5...

  • Page 17: Timing Chart

    Monochrome Field Update Line Scan Camera Link Series 4 Timing Chart 4.1 Exposure Time EXT_LINE External sync(CC1) Exposure time VIDEO EXT_FIX MODE Exposure time VIDEO PULSE MODE Exposure time VIDEO INTERNAL MODE Exposure time VIDEO Product Specifications Ver 1.12...
  • Page 18 Monochrome Field Update Line Scan Camera Link Series Label Description Value [us] Line interval External sync：CC1 line period Sync rise to exposure end ( 6 x B) + 1 Sync rise to exposure start B16K : ( 18 x B ) + 4 Except B16K: ( 18 x B ) + 1 Exposure time(EXT_LINE) B16K : T1 –...
  • Page 19 Monochrome Field Update Line Scan Camera Link Series B. CLUK Period Model Value [us] FS-B16KU35CLU 0.0235 Except for FS-B16KU35CLU 0.0117 C. Amount of Change Time per Step Model Value [us] FS-B16KU35CLU Except for FS-B16KU35CLU Product Specifications Ver 1.12...

  • Page 20: Output Format

    Monochrome Field Update Line Scan Camera Link Series 5 Output Format 5.1 FS-B2KU7CLU Selectable output modes are listed in the table below. The video output can be selected through the register access (EEh). Output mode(EEh) Mode Data rate Configuration Maximum line rate Sensor mode 2tap 85MHz x 2tap...

  • Page 21: Fs-B4Ku35Clu, Fs-B4K7Clu

    Monochrome Field Update Line Scan Camera Link Series 5.2 FS-B4KU35CLU, FS-B4K7CLU Selectable output modes are listed in the table below. Video Output format can be selected through the register access (EEh). Output mode(EEh) Mode Data rate Configuration Maximum line rate Sensor mode 4tap 85MHz x 4tap...

  • Page 22: Video Output Format Timing Chart "Aoi Mode" (Base Configuration)

    Monochrome Field Update Line Scan Camera Link Series 5.2.3 Video Output format Timing chart “AOI Mode” (Base Configuration) Image output ....... CH1(portA) Image output ....... CH2(portB) "AOI width of LVAL" pixels LVAL N = [AOI Width] * 2 + 1 [AOI Width}: User Selected Product Specifications Ver 1.12...

  • Page 23: Fs-B8Ku35Clu, Fs-B8Ku7Clu

    Monochrome Field Update Line Scan Camera Link Series 5.3 FS-B8KU35CLU, FS-B8KU7CLU Selectable output modes are listed in the table below. Video Output format can be selected through the register access (EEh). Output mode(EEh) Mode Data rate Configuration Maximum line rate Sensor mode 8tap 85MHz x 8tap...

  • Page 24: Video Output Format Timing Chart (Full Configuration)

    Monochrome Field Update Line Scan Camera Link Series 5.3.1 Video Output format Timing Chart (Full Configuration) Image output ....... CH1(portA) Image output ....... CH2(portB) Image output ....... CH3(portC) Image output ....... CH4(portD) Image output ....... CH5(portE) Image output ....... CH6(portF) Image output .......

  • Page 25: Video Output Format Timing Chart (Medium Configuration)

    Monochrome Field Update Line Scan Camera Link Series 5.3.2 Video Output format Timing Chart (Medium Configuration) Image output ....... CH1(portA) Image output ....... CH2(portB) Image output ....... CH3(portC) Image output ....... CH4(portD) 2,048 pixels LVAL 5.3.3 Video Output format Timing Chart (Base Configuration) Image output .......

  • Page 26: Video Output Format Timing Chart "Aoi Mode" (Full Configuration)

    Monochrome Field Update Line Scan Camera Link Series 5.3.5 Video Output format Timing Chart “AOI Mode” (Full Configuration) Image output ....... CH1(portA) Image output ....... CH2(portB) Image output ....... CH3(portC) Image output ....... CH4(portD) Image output ....... CH5(portE) Image output .......

  • Page 27: Fs-B16Ku35Clu

    Monochrome Field Update Line Scan Camera Link Series 5.4 FS-B16KU35CLU Selectable Output Modes are listed in the table below. Video output format can be selected through the register access (EEh). Output mode(EEh) Mode Data rate Configuration Maximum line rate Sensor mode 8tap 85MHz x 8tap Full...

  • Page 28: Video Output Format Timing Chart (Full Configuration)

    Monochrome Field Update Line Scan Camera Link Series 5.4.1 Video Output format Timing Chart (Full Configuration) Image output ....... CH1(portA) Image output ....... CH2(portB) Image output ....... CH3(portC) Image output ....... CH4(portD) Image output ....... CH5(portE) Image output ....... CH6(portF) Image output .......

  • Page 29: Video Output Format Timing Chart (Medium Configuration)

    Monochrome Field Update Line Scan Camera Link Series 5.4.2 Video Output Format Timing Chart (Medium Configuration) Image output ....... CH1(portA) Image output ....... CH2(portB) Image output ....... CH3(portC) Image output ....... CH4(portD) 4,096 pixels LVAL 5.4.3 Video Output Format Timing Chart (Base Configuration) Image output .......

  • Page 30: Details Of Camera Control

    Monochrome Field Update Line Scan Camera Link Series 6. Details of Camera Control 6.1 Field Flat Correction (FFC) Field Flat Correction (FFC) is used for correcting non-uniformity image brightness caused by the lens of the imager. When using this camera, FFC should be used to help correct fixed pattern noise on the imager. 6.1.1 Summary of FFC When using FFC, the gain and offset are added to each pixel.

  • Page 31: Auto Ffc Procedure

    Monochrome Field Update Line Scan Camera Link Series 6.1.3 Auto FFC Procedure After the target gain and offset levels have been set, the camera will correct the gain and offset value automatically under the calibration setting. The user has to set the FFC under their personal conditions. If the wrong procedure is executed, the correction can be recovered from the beginning.
  • Page 32 Monochrome Field Update Line Scan Camera Link Series 7) Set [Target FFC Gain] level [88h: 200] Configurable range is 0 to 255. The value should be ten steps larger than the brightest level on the video image. A brighter video value than the target gain level outputs the data without correction. Initial [Target FFC Gain] level is 200.
  • Page 33 Monochrome Field Update Line Scan Camera Link Series If the user is using “Auto Target”, please continue in the following steps. 11) Set the Target Offset level for gain [88h: recommendation 20] Set the value from the range 0 to 255 (8bit) To determine the target level automatically, offset level has to be set.

  • Page 34: Manual Ffc Procedure

    Monochrome Field Update Line Scan Camera Link Series 6.1.4 Manual FFC Procedure The Manual [FFC Mode] can correct specific pixel addresses and correct all pixels of the same value. When dust creates a gap in the calibration object after Auto on [FFC Mode], the user can revise the value of the specific pixel address.

  • Page 35: Ffc Corrected Value Store Mode

    Monochrome Field Update Line Scan Camera Link Series 6.1.7 FFC Corrected Value Store Mode FFC is required to erase the fixed pattern noise from the image sensor. Twelve FFC corrected value can be stored. 8Dh Load Camera Setting Save Camera Setting Camera turn on Area0 Factory Setting Area E2h.3...

  • Page 36: Communication Protocol Specifications

    Monochrome Field Update Line Scan Camera Link Series 7 Communication Protocol Specifications The camera functions can be controlled via external devices such as PC. Please use the “CLCtrl” communication software or the following communication protocol to communicate to the camera. 7.1 Communication Method UART (RS232C), Binary Communication 7.1.1 Communication Settings...

  • Page 37: Communication Format

    Monochrome Field Update Line Scan Camera Link Series 7.1.2 Communication Format A. The format for sending data from the PC to the camera is as follows: a. Send the Read command Device code Read Page selection Command code Data length Data (8bit) (6bit)
  • Page 38 Monochrome Field Update Line Scan Camera Link Series D. Example Commands Send the Read command to Read the 00H address data of the register 02, 00, 00, 01, 00, 03 SOF, (Device code / Read / Register), Command Code, Data Length, Data, EOF The Return Command: 02, 01, 00, 03 Product Specifications...

  • Page 39: Camera Control Commands

    Monochrome Field Update Line Scan Camera Link Series 7.2 Camera Control Commands 7.2.1 Camera Control Command List The underlined settings are factory default settings. Command No. Command Description Bit No. 【Camera Type】Initial Data: Read Only To output the camera model. CBh:FS-B16KU35CLU C8h:FS-B8KU7CLU C7h:FS-B8KU35CLU...
  • Page 40 Monochrome Field Update Line Scan Camera Link Series Command No. Command Description Bit No. 10h.0-1 There are 4 patterns through the combination of Exposure Mode and Sync 【Exposure Mode】Initial Data:0 Mode. To set the exposure mode. 0:Line Exposure 1:Fix Exposure Sync Mode 2:Pulse Exposure 1:External Sync...
  • Page 41 Monochrome Field Update Line Scan Camera Link Series Command No. Command Description Bit No. 12h.0 【Video Out】Initial Data:0 To set the camera output bit. 0:8bit 1:10bit *Configurable output bit are depends on output mode. Some modes are 8bit only. 20-21h 【Exposure Time】Initial Data:0 To set the camera exposure time.
  • Page 42 Monochrome Field Update Line Scan Camera Link Series Command No. Command Description Bit No. 【FFC Mode】Initial Data:1 To set the FFC mode. 0:OFF => Non-correction video output 1:ON（Gain + Offset） => Corrected video output（Gain + Offset） 2:FFC value => FFC value output on the video signal by pixel =>...
  • Page 43 Monochrome Field Update Line Scan Camera Link Series Command No. Command Description Bit No. 【FFC Corrected Value Store Mode(Bank)】Initial Data:0 To set the Bank number on Bank Mode of FFC Corrected Value Store Mode(8Ch). 0～7 *FFC value would not be loaded automatically even when changing this setting. 【Un-detect Chattering Period】Initial Data:0 To set the time period of un-detect chattering.
  • Page 44 Monochrome Field Update Line Scan Camera Link Series Command No. Command Description Bit No. CBh.0-1 【Communication Mode】Initial Data: 0 To set the Specific Communication Mode. Please set this parameter ”ON” , when external sync does not input camera. 0:OFF Normal Mode (Communication just only work with external sync) 1:ON Specific Communication Mode (Internal Sync mode without video image output) 2-3:Invalid...

  • Page 45: Save The Camera Setting Data Into Flash

    Monochrome Field Update Line Scan Camera Link Series 7.2.2 Save the Camera Setting Data into FLASH To save the camera setting data into FLASH, please follow the procedure below: - Set “1” on E2h.0 to save the camera setting. 7.2.3 Sequence of Camera Power On 1) Power on the camera 2) Load the camera setting into the registry and storage FLASH RAM 3) Corrected FFC values load from FLASH...

  • Page 46: Test Patterns

    Monochrome Field Update Line Scan Camera Link Series 8 Test Patterns 8.1 FS-B2KU7CLU tsmd=1 tsmd=2 tsmd=3 tsmd=4 Product Specifications Ver 1.12...

  • Page 47: Fs-B4Ku7Clu / Fs-B4Ku35Clu

    Monochrome Field Update Line Scan Camera Link Series 8.2 FS-B4KU7CLU / FS-B4KU35CLU tsmd=1 tsmd=2 tsmd=3 tsmd=4, Moving Sawtooth wave Product Specifications Ver 1.12...

  • Page 48: Fs-B8Ku7Clu / Fs-B8Ku35Clu

    Monochrome Field Update Line Scan Camera Link Series 8.3 FS-B8KU7CLU / FS-B8KU35CLU tsmd=1 tsmd=2 tsmd=3 (Fix 8bit, 128 steps) tsmd=4, Moving Sawtooth wave 8.4 FS-B16KU35CLU tsmd=1 tsmd=2 tsmd=3 (Fix 8bit, 128 steps) tsmd=4, Moving Sawtooth wave Product Specifications Ver 1.12...

  • Page 49: Field Update Function

    Monochrome Field Update Line Scan Camera Link Series 9. Field Update Function Camera FPGA data can be overwritten via PC (Field Update) 9.1 Procedure 1) Launch the update software “StCLRemoteUpdate”. 2) Select the update file (rbf) and COM port that communicates with the camera and click “Update”. 3) When finished uploading, power the camera off / on.

  • Page 50: Quantum Efficiency

    Monochrome Field Update Line Scan Camera Link Series 10 Quantum Efficiency Product Specifications Ver 1.12...

  • Page 51: Dimensions

    Monochrome Field Update Line Scan Camera Link Series 11 Dimensions 11.1 FS-B2KU7DCLU-C Unit: mm 11.2 FS-B8KU35CLU-F, FS-B4KU7CLU-F, FS-B4KU35CLU-F, FS-B2KU7CLU-F 26.5 F Mount 4-M4 depth 5 (Top, bottom and both sides) 4-M4 depth 5 Unit: mm Product Specifications Ver 1.12...

  • Page 52: Fs-B16Ku35Clu-M72, Fs-B8Ku7Clu-M72

    Monochrome Field Update Line Scan Camera Link Series 11.3 FS-B16KU35CLU-M72, FS-B8KU7CLU-M72 38.1 22.5 (42.3) 19.55 (from M72 frange to image plate) 10 (M72 thred depth) 15 (Max. lens insert depth) Cross section A - A Unit: mm Product Specifications Ver 1.12...
  • Page 53 Monochrome Field Update Line Scan Camera Link Series Date Changes Note 1.11 October 30, 2013 Initial Release 1.12 April 28, 2014 Revised FFC Explanation Added Registers Revised ASCII Info for Field Update Added Field Update Procedure Product Specifications Ver 1.12...
  • Page 54 Monochrome Field Update Line Scan Camera Link Series Sensor Technologies America, Inc. 1345 Valwood Pkwy, Suite 320 Carrollton, TX 75006 TEL:(972)-481-9223 FAX: (972)-481-9209 www.SentechAmerica.com Product Specifications Ver 1.12...

This manual is also suitable for:

Fs-b16ku35cluFs-b2ku7cluFs-b2ku35cluFs-b4ku7dcluFs-b4ku35cluFs-b8ku7clu
