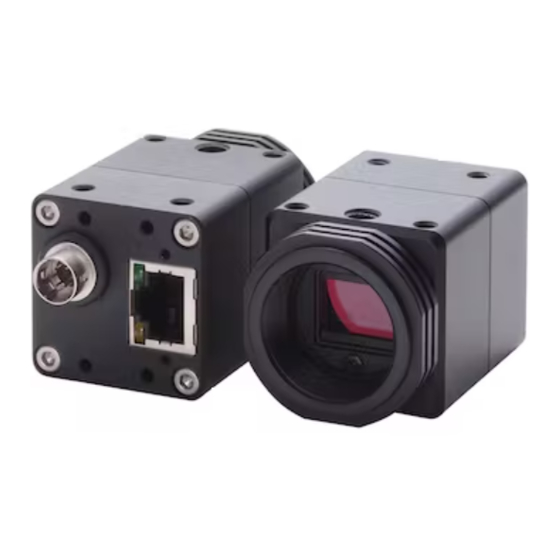

Sentech GigE Vision Camera
StGigE SDK
Sample Guide
Sensor Technology Co., Ltd.
Sentech GigE Vision Camera StGigE SDK
Sample Guide Rev.1.00
1/33

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GigE Vision and is the answer not in the manual?

Questions and answers
