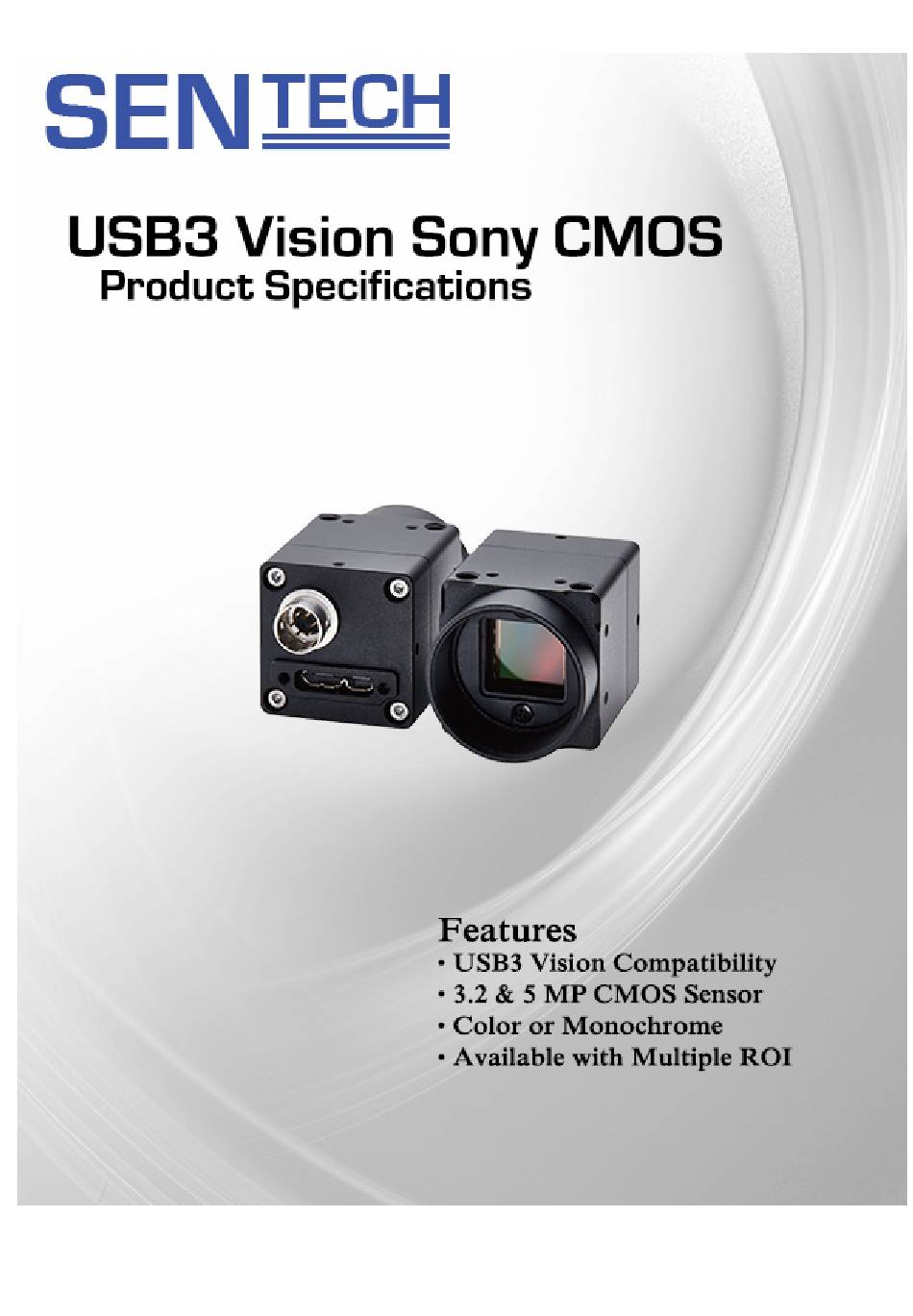

SenTech STC-MBS510U3V Product Specifications

Usb3 vision sony cmos
Hide thumbs
Table of Contents

Advertisement

Quick Links

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the STC-MBS510U3V and is the answer not in the manual?

Questions and answers

Related Manuals for SenTech STC-MBS510U3V

Summary of Contents for SenTech STC-MBS510U3V

  • Page 2: No.15S103

     Use a soft cloth to clean the camera. Use pressured air spray to clean the surface of the glass. DO not scratch the surface of the glass. STC-MBS510U3V / STC-MCS510U3V / STC-MBS322U3V / STC-MCS322U3V 2/65 Specifications and Use’s guide...
  • Page 3 USB camera.  Increasing gain level may increase the noise level.  When the camera is in Long Exposure mode, the noise level may increase. STC-MBS510U3V / STC-MCS510U3V / STC-MBS322U3V / STC-MCS322U3V 3/65 Specifications and Use’s guide...

  • Page 4: Table Of Contents

    2.5.3 Reference Input Circuit ........................23 2.5.4 Reference Output Circuit ........................25 DIMENSIONS ...................... 27 STC-MBS510U3V / STC-MCS510U3V / STC-MBS322U3V / STC-MCS322U3V....... 27 SENSOR INFORMATION ..................28 Pixel Transferring Image ......................28 IMAGE ACQUISITION AND CAMERA OPERATIONAL MODES ......29 Freerun ............................
  • Page 5 7.8.2 AGC (Auto Gain Control) ........................49 7.8.3 Auto Exposure ............................. 49 7.8.4 The procedure of ALC ......................... 50 White Balance (Only available for the color cameras) ............51 STC-MBS510U3V / STC-MCS510U3V / STC-MBS322U3V / STC-MCS322U3V 5/65 Specifications and Use’s guide...
  • Page 6 7.17.10 EventTestData ..........................61 7.17.11 AnalogControl ..........................62 7.17.12 LUTControl ............................62 7.17.13 UserSetControl ..........................62 7.17.14 ChunkDataControl .......................... 62 7.17.15 TestControl ............................63 REVISION HISTORY ................... 64 STC-MBS510U3V / STC-MCS510U3V / STC-MBS322U3V / STC-MCS322U3V 6/65 Specifications and Use’s guide...
  • Page 7 No.15S103-01 STC-MBS510U3V / STC-MCS510U3V / STC-MBS322U3V / STC-MCS322U3V 7/65 Specifications and Use’s guide...

  • Page 8: Overview

    Below is a description of the camera naming method: STC-MxS510U3V U3V: USB3 Vision 510: 5.1M Pixel, 2/3” Sensor 322: 3.2M Pixel, 1/1.8” Sensor Sensor Manufacturer S: Sony C: Color B: Monochrome Figure 1: Naming Method STC-MBS510U3V / STC-MCS510U3V / STC-MBS322U3V / STC-MCS322U3V 8/65 Specifications and Use’s guide...

  • Page 9: Specifications

    No.15S103-01 Specifications 2.1 Electronic Specifications STC-MBS510U3V / STC-MCS510U3V / STC-MBS322U3V / STC-MCS322U3V 9/65 Specifications and Use’s guide...
  • Page 10 Auto Gain Control Support Auto White Balance Operational Mode Free-run / Edge-preset Trigger / Pulse width Trigger / Start Stop Trigger User Setting Storage Support Communication Via USB3.0 bus STC-MBS510U3V / STC-MCS510U3V / STC-MBS322U3V / STC-MCS322U3V 10/65 Specifications and Use’s guide...
  • Page 11 Interface USB3.0 Super speed (USB3.0 Micro B) USB3 Vision® 1.0.1, GenICam Standard Version (SFNC 2.2, PFNC 2.0) compliant Protocol and Sentech’s unique protocol (on Normal SDK, Trigger SDK) Input / Output Three GPIO, One Camera Hardware Reset Input Voltage +5V(typ.) (This conforms to the USB standard)
  • Page 12 No.15S103-01 STC-MBS510U3V / STC-MCS510U3V / STC-MBS322U3V / STC-MCS322U3V 12/65 Specifications and Use’s guide...

  • Page 13: Stc-Mbs322U3V / Stc-Mcs322U3V

    No.15S103-01 STC-MBS510U3V / STC-MCS510U3V / STC-MBS322U3V / STC-MCS322U3V 13/65 Specifications and Use’s guide...
  • Page 14 Auto Gain Control Support Auto White Balance Operational Mode Free-run / Edge-preset Trigger / Pulse width Trigger / Start Stop Trigger User Setting Storage Support Communication Via USB3.0 bus STC-MBS510U3V / STC-MCS510U3V / STC-MBS322U3V / STC-MCS322U3V 14/65 Specifications and Use’s guide...
  • Page 15 Interface USB3.0 Super speed (USB3.0 Micro B) USB3 Vision® 1.0 , GenICam Standard Version (SFNC 2.2, PFNC 2.0) compliant Protocol and Sentech’s unique protocol (on Normal SDK, Trigger SDK) Input / Output Three GPIO, One Camera Hardware Reset Input Voltage +5V(typ.) (This conforms to the USB standard)
  • Page 16 This may resolve the issue. Due to the huge data transfer, PC resources may be consumed during the process. If this occurs, the frame rate of the camera may be effected. STC-MBS510U3V / STC-MCS510U3V / STC-MBS322U3V / STC-MCS322U3V 16/65 Specifications and Use’s guide...

  • Page 17: Spectral Sensitivity Characteristics

    No.15S103-01 2.2 Spectral Sensitivity Characteristics STC-MBS510U3V / STC-MCS510U3V / STC-MBS322U3V / STC-MCS322U3V 17/65 Specifications and Use’s guide...

  • Page 18: Stc-Mbs322U3V

    No.15S103-01 STC-MBS510U3V / STC-MCS510U3V / STC-MBS322U3V / STC-MCS322U3V 18/65 Specifications and Use’s guide...

  • Page 19: Mechanical Specifications

    Material Aluminum alloy Lens Mount C Mount Interface Connectors USB Connector: USB3.0 Micro B type I/O Connector: HR10A-7R-6PB (Hirose) or equivalent Weight Approx. 48g (*1) excluding the connectors STC-MBS510U3V / STC-MCS510U3V / STC-MBS322U3V / STC-MCS322U3V 19/65 Specifications and Use’s guide...

  • Page 20: Environmental Specifications

    65 ºC, the camera housing temperature (top plate) will be less than 55 ºC. Upper side of camera Measuring point STC-MBS510U3V / STC-MCS510U3V / STC-MBS322U3V / STC-MCS322U3V 20/65 Specifications and Use’s guide...

  • Page 21: External Connector

    USB OTG USB OTG ID SSTX− SuperSpeed transmitter differential pair (−) SSTX+ SuperSpeed transmitter differential pair (+) SSRX− SuperSpeed receiver differential pair (−) SSRX+ SuperSpeed receiver differential pair (+) STC-MBS510U3V / STC-MCS510U3V / STC-MBS322U3V / STC-MCS322U3V 21/65 Specifications and Use’s guide...
  • Page 22 (*3): When the external IO port is connected, control the current less than 15mA on the IO port. (*4): This value is the typical current value of the Input Port when High Voltage is input. STC-MBS510U3V / STC-MCS510U3V / STC-MBS322U3V / STC-MCS322U3V 22/65...

  • Page 23: Reference Input Circuit

    No.15S103-01 Default Setting of Input Output Pin No. Signal Default Name IN/OUT Setting GPIO2 Disable GPIO1 Disable GPIO0 Disable CAM_RESET (Reference 1) General Purpose Input (Reference 2) STC-MBS510U3V / STC-MCS510U3V / STC-MBS322U3V / STC-MCS322U3V 23/65 Specifications and Use’s guide...
  • Page 24 入力電圧 High USER INPUT USER_INPUT Internal Voltage 内部電圧 Camera internal カメラ内部 IO_GND IO_GND Capable input trigger’s pulse width is Positive Trigger: More than tIPDLH Negative Trigger: More than tIPDHL STC-MBS510U3V / STC-MCS510U3V / STC-MBS322U3V / STC-MCS322U3V 24/65 Specifications and Use’s guide...

  • Page 25: Reference Output Circuit

    No.15S103-01 General Purpose Output (Reference 3) General Purpose Output (Reference 4) STC-MBS510U3V / STC-MCS510U3V / STC-MBS322U3V / STC-MCS322U3V 25/65 Specifications and Use’s guide...
  • Page 26 2.61 usec tOPDLH tOPDHL Internal Voltage 内部電圧 Camera internal カメラ内部 USER_OUTPUT +3.3V or VCCext 3.3VまたはVCCext USER OUTPUT IO_GND IO_GND (*1) 3. Measured on +3.3V internal Voltage. Reference (*2) Reference STC-MBS510U3V / STC-MCS510U3V / STC-MBS322U3V / STC-MCS322U3V 26/65 Specifications and Use’s guide...

  • Page 27: Dimensions

    No.15S103-01 Dimensions 3.1 STC-MBS510U3V / STC-MCS510U3V / STC-MBS322U3V / STC-MCS322U3V Unit: mm STC-MBS510U3V / STC-MCS510U3V / STC-MBS322U3V / STC-MCS322U3V 27/65 Specifications and Use’s guide...

  • Page 28: Sensor Information

    Pixel (n) of Data: nth pixel being transferred STC-MCS510U3V, STC-MCS322U3V（Color） Pixel00 Pixel01 Data Data Pixel11 Pixel10 Data Data Pixel (m,n) of Data: nth pixel of the mth line being transferred STC-MBS510U3V / STC-MCS510U3V / STC-MBS322U3V / STC-MCS322U3V 28/65 Specifications and Use’s guide...

  • Page 29: Image Acquisition And Camera Operational Modes

    When Exposure Mode is set to Timed, the Exposure Time value will be set as the exposure time. ExposureTime 露光 Exposure VideoOut 映像出力 (*) The camera is set to Freerun mode as the default mode. STC-MBS510U3V / STC-MCS510U3V / STC-MBS322U3V / STC-MCS322U3V 29/65 Specifications and Use’s guide...

  • Page 30: Trigger Mode

    Controlled, camera exposure and image acquisition don’t work. (*)Please do not apply the Trigger through maximum frame rate on Trigger Mode. When Trigger applies within sensor Readout as exposure end, camera interrupted Readout. STC-MBS510U3V / STC-MCS510U3V / STC-MBS322U3V / STC-MCS322U3V 30/65 Specifications and Use’s guide...

  • Page 31: Frame Start Trigger (Edge Preset)

    Trigger Input トリガー入力(正極性) (Positive) I/O遅延(tIPDLH) I/O Delay(tIPDLH) Trigger Input トリガー入力(負極性) (Negative) I/O遅延(tIPDHL) I/O Delay(tIPDHL) LineDebounceTime TriggerDelay センサー内部の露光開始遅延 Exposure Start Duration inside of sensor ExposureTime 露光 Exposure VideoOut 映像出力 STC-MBS510U3V / STC-MCS510U3V / STC-MBS322U3V / STC-MCS322U3V 31/65 Specifications and Use’s guide...

  • Page 32: Frame Start Trigger (Pulse Width Trigger)

    I/O遅延(tIPDHL) I/O Delay(tIPDLH) I/O遅延(tIPDLH) I/O Delay(tIPDHL) LineDebounceTime LineDebounceTime TriggerDelay TriggerDelay センサー内部の露光開始遅延 Exposure Start Duration センサー内部の露光開始遅延 Exposure Start Duration inside of sensor inside of sensor 露光 Exposure 映像出力 VideoOut STC-MBS510U3V / STC-MCS510U3V / STC-MBS322U3V / STC-MCS322U3V 32/65 Specifications and Use’s guide...

  • Page 33: Exposure Start Trigger, Exposure End Trigger

    This function can apply either external signal or a software command as the trigger. The software trigger can be applied through the “execute Trigger Software” command when the trigger is selected on the Trigger Selector. STC-MBS510U3V / STC-MCS510U3V / STC-MBS322U3V / STC-MCS322U3V 33/65 Specifications and Use’s guide...

  • Page 34: Io Function

    This function monitors the signal status on the input port. The High level (Line Status: true) or Low level (Line Status false) status can be seen through the software. STC-MBS510U3V / STC-MCS510U3V / STC-MBS322U3V / STC-MCS322U3V 34/65 Specifications and Use’s guide...

  • Page 35: Line Debouncer

    This Trigger Delay can add to the duration per usec uom. GenICam Parameters TriggerDelay Integer Type Trigger Delay Range: 0 to 262,143usec, Default: 0usec STC-MBS510U3V / STC-MCS510U3V / STC-MBS322U3V / STC-MCS322U3V 35/65 Specifications and Use’s guide...

  • Page 36: Output Port Function

    Out on Time (Strobe output pulse width) when the trigger signal is received. 8) Exposure Active (In Exposure Period) Outputs the exposure timing. (*) Actual exposure period = Output signal pulse width + Minimum exposure time 13.73 usec STC-MBS510U3V / STC-MCS510U3V / STC-MBS322U3V / STC-MCS322U3V 36/65 Specifications and Use’s guide...
  • Page 37 (*) The trigger port in this chart describes Frame Start trigger as an example (*) Trigger Out, Strobe Out output don’t response with Exposure Start trigger, Exposure End trigger STC-MBS510U3V / STC-MCS510U3V / STC-MBS322U3V / STC-MCS322U3V 37/65 Specifications and Use’s guide...

  • Page 38: User Output

    Hardware reset can be done through CAM_RESET port. Sets on (Default : Off) on Line Device Reset Mode, and rest the camera to apply the Low voltage in 5 sec on CAM_RESET port. STC-MBS510U3V / STC-MCS510U3V / STC-MBS322U3V / STC-MCS322U3V 38/65 Specifications and Use’s guide...

  • Page 39: Camera Operation

    Setting interval: 4 line unit The parameters defines as following chart. OffsetY Height ROI Region OffsetX Width (*) Width, Height, OffsetX, OffestY’s setting interval is the same in Binning and Decimation. STC-MBS510U3V / STC-MCS510U3V / STC-MBS322U3V / STC-MCS322U3V 39/65 Specifications and Use’s guide...
  • Page 40 (*) 64 Pixel unit on Packed output (*) 64 Pixel unit on Packed output Height Setting Range: 32to2048 32to1536 Default: 2048 1536 Setting Interval 4 Line unit 4 Line unit STC-MBS510U3V / STC-MCS510U3V / STC-MBS322U3V / STC-MCS322U3V 40/65 Specifications and Use’s guide...

  • Page 41: Multi Roi

    No.15S103-01 When utilizing the Multi-ROI function, please make note of the following: This image format is Sentech original format, it does not comply with USB3Vision. Therefore this Multi ROI will not work on 3 party applications that conform to USB3Vision.
  • Page 42 Region9 Region8 OffsetX [Region2] Region7 Region6 Region5 Region4 OffsetX [Region1] Width[Region3] Width[Region2] Width[Region1] Width[Region0] Region3 Region2 Region1 Region0 OffsetX [Region0] OffsetY OffsetY OffsetY OffsetY [Region12] [Region8] [Region0] [Region4] STC-MBS510U3V / STC-MCS510U3V / STC-MBS322U3V / STC-MCS322U3V 42/65 Specifications and Use’s guide...

  • Page 43: Pixel Format

    Integer Type Sets Binning on Horizontal direction 1: Disable Binning 2: Binning 2 Pixel BinningVertical Integer Type Sets Binning on Vertical direction 1: Disable Binning 2: Binning 2 Pixel STC-MBS510U3V / STC-MCS510U3V / STC-MBS322U3V / STC-MCS322U3V 43/65 Specifications and Use’s guide...

  • Page 44: Decimation

    1: Decimation Off 2: 2Decimate one pixel DecimationVertical Integer Type Sets decimation on vertical direction 1: Decimation Off 2: 2Decimate one pixel (*) Binning and Decimation cannot work simultaneously STC-MBS510U3V / STC-MCS510U3V / STC-MBS322U3V / STC-MCS322U3V 44/65 Specifications and Use’s guide...

  • Page 45: Image Flip

    IBoolean Type Switch ON/OFF on Vertical False: Horizontal Flip Off, True: Horizontal Flip On. Default: False Reverse X(Off), Y(Off) Reverse X(Off), Y(On) Reverse X(On), Y(Off) Reverse X(On), Y(On) STC-MBS510U3V / STC-MCS510U3V / STC-MBS322U3V / STC-MCS322U3V 45/65 Specifications and Use’s guide...
  • Page 46 Reverse X(Off), Y(Off) Reverse X(Off), Y(On) Reverse X(On), Y(Off) Reverse X(On), Y(On) (*) When the image is flipped on the color camera, the pixel array is also inverted. STC-MBS510U3V / STC-MCS510U3V / STC-MBS322U3V / STC-MCS322U3V 46/65 Specifications and Use’s guide...

  • Page 47: Gain

    GenICam Parameters BalanceRatio[BalanceRatioSelector] IFloat White Balance Gain Type Range: 0 to 511, Default: Red: 229, Green: 128, Blue: 272 White Balance Gain Formula = BalanceRatio[BalanceRatioSelector] ／ 128 Gain(xtimes) STC-MBS510U3V / STC-MCS510U3V / STC-MBS322U3V / STC-MCS322U3V 47/65 Specifications and Use’s guide...

  • Page 48: Black Level

    8bit output 0 to 31 10bit output 0 to 127 (10bit Packed outputs same as this mode) 12bit output 0 to 511 (12bit Packed outputs same as this mode) STC-MBS510U3V / STC-MCS510U3V / STC-MBS322U3V / STC-MCS322U3V 48/65 Specifications and Use’s guide...

  • Page 49: Alc (Auto Light Control)

    When it was darker than target value, extend exposure time up to Exposure Auto Limit Max. When it was darker than target value, reduce exposure time up to Exposure Auto Limit Min. STC-MBS510U3V / STC-MCS510U3V / STC-MBS322U3V / STC-MCS322U3V 49/65...

  • Page 50: The Procedure Of Alc

    Sets Exposure Auto Limit Min (When Auto Exposure is applicable) Sets Continuous on Gain Auto (When AGC is applicable) Sets Gain Auto Limit Max (When AGC is applicable) Sets Gain Auto Limit Min (When AGC is applicable STC-MBS510U3V / STC-MCS510U3V / STC-MBS322U3V / STC-MCS322U3V 50/65 Specifications and Use’s guide...

  • Page 51: White Balance (Only Available For The Color Cameras)

    The white balance gain adjusts once after selecting white balance then set to Balance White (Red, Green, Blue) Sets OFF at Balance White Auto automatically after set White Balance Gain. STC-MBS510U3V / STC-MCS510U3V / STC-MBS322U3V / STC-MCS322U3V 51/65 Specifications and Use’s guide...

  • Page 52: Gamma Table

    The gamma table inside of the camera corrects the gradient linearity. GenICam Parameters Gamma IFloat Gamma Type Range: 0.1 to 4.0, Default: 1.0 Gamma Formula Output Data ＝ Input data Gamma Value STC-MBS510U3V / STC-MCS510U3V / STC-MBS322U3V / STC-MCS322U3V 52/65 Specifications and Use’s guide...

  • Page 53: Save And Load The Camera Setting Data

    Selector User Set Save can’t be executed when Default was selected on User Set Selector UserSetSelector Setting Procedure 1. Selects “UserSetX” at UserSetSelector 2. Execute User Set Save STC-MBS510U3V / STC-MCS510U3V / STC-MBS322U3V / STC-MCS322U3V 53/65 Specifications and Use’s guide...

  • Page 54: The Camera Settings Loading

    Set User Set X or Default on User Set Default Please follow the below procedure for the camera settings put back to the factory default. Setting Procedure Selects “Default” at UserSetSelector. Executes UserSetLoad. STC-MBS510U3V / STC-MCS510U3V / STC-MBS322U3V / STC-MCS322U3V 54/65 Specifications and Use’s guide...

  • Page 55: Pixel Defect Correction

    When the external hardware or software signal is input, the following process should be done. Line0 Line Line1 Debouncer Trigger Trigger トリガー Trigger Selector Delay Line2 Software Trigger Trigger Source STC-MBS510U3V / STC-MCS510U3V / STC-MBS322U3V / STC-MCS322U3V 55/65 Specifications and Use’s guide...

  • Page 56: Device User Id

    Inform exposure end timing inside of camera as Event. Event ID is 0x9001. (*) Since Event and Stream (image data) share USB bus, when the Event came up frequently, Stream’s data transfer rate would be decreased. STC-MBS510U3V / STC-MCS510U3V / STC-MBS322U3V / STC-MCS322U3V 56/65 Specifications and Use’s guide...

  • Page 57: Chunk Control (Only Usb3 Vision Protocol)

    Transfer the exposure time when image was obtained as Chunk data. Chunk ID is 0x00000004. Chunk Gamma Transfer the Gamma when image was obtained as Chunk data. Chunk ID is 0x00000005. STC-MBS510U3V / STC-MCS510U3V / STC-MBS322U3V / STC-MCS322U3V 57/65 Specifications and Use’s guide...

  • Page 58: Genicam Command List

    Character set used by the strings of the device`s bootstrap registers. DeviceReset Resets the device to its power up state. DeviceRegistersStreamingStart Prepare the device for registers streaming without checking for consistency. STC-MBS510U3V / STC-MCS510U3V / STC-MBS322U3V / STC-MCS322U3V 58/65 Specifications and Use’s guide...

  • Page 59: Imageformatcontrol

    This feature is used to flip horizontally the image sent by the device. The AOI is applied after ReverseX the flipping. This feature is used to flip vertically the image sent by the device. The AOI is applied after the ReverseY flipping. STC-MBS510U3V / STC-MCS510U3V / STC-MBS322U3V / STC-MCS322U3V 59/65 Specifications and Use’s guide...

  • Page 60: Acquisitioncontrol

    Selects which internal acquisition or I/O source signal to output on the selected Line. LineMode LineSource must be Output. UserOutputSelector Selects which bit of the User Output register will be set by UserOutputValue. STC-MBS510U3V / STC-MCS510U3V / STC-MBS322U3V / STC-MCS322U3V 60/65 Specifications and Use’s guide...

  • Page 61: Counterandtimercontrol

    Returns the Timestamp of the ExposureEnd Event. It can be used to determine precisely when EventExposureEndTimestamp the event occured. Name Description EventExposureStart Returns the unique Identifier of the Exposure Start type of Event. EventExposureStartTimestamp Returns the Timestamp of the Exposure Start Event. STC-MBS510U3V / STC-MCS510U3V / STC-MBS322U3V / STC-MCS322U3V 61/65 Specifications and Use’s guide...

  • Page 62: Analogcontrol

    Enables the inclusion of the selected Chunk data in the payload of the image. ChunkCounterSelector Selects which counter to retrieve data from. ChunkCounterValue Returns the value of the selected Chunk counter at the time of the FrameStart event. STC-MBS510U3V / STC-MCS510U3V / STC-MBS322U3V / STC-MCS322U3V 62/65 Specifications and Use’s guide...

  • Page 63: Testcontrol

    Tests the device's pending acknowledge feature. When this feature is written, the device TestPendingAck waits a time period corresponding to the value of TestPendingAck before acknowledging the write. TestEventGenerate Generates a Test Event. STC-MBS510U3V / STC-MCS510U3V / STC-MBS322U3V / STC-MCS322U3V 63/65 Specifications and Use’s guide...

  • Page 64: Revision History

    No.15S103-01 Revision History Date Changes Note  2015/09/29 New Document  2015/11/05 Revised ChunkExposureTime, ChunkGamma, ChunkBlackLevelSelector on GenICam Command List Noise Level Power Consumption Maximum Operational Temperature STC-MBS510U3V / STC-MCS510U3V / STC-MBS322U3V / STC-MCS322U3V 64/65 Specifications and Use’s guide...
  • Page 65 No.15S103-01 Sentech Co., Ltd 7F, Harada center building 9-17, Naka cho 4 chome Atsugi-city, Kanagawa 243-0018 Japan TEL +81-46-295-7061 FAX +81-46-295-7066 URL http://www.sentech.co.jp/ STC-MBS510U3V / STC-MCS510U3V / STC-MBS322U3V / STC-MCS322U3V 65/65 Specifications and Use’s guide...
