Speaker Wiring

Wiring is terminated at a snap-lock input con-

nector. There are two positive and two nega-

tive terminals to accommodate daisy chaining

of speakers in a system. All wiring should be

done prior to installation and then plugged

into the rear of the OPS1.

DAISY CHAINING

The OPS1's snap-lock input connector allows

for easy daisy chaining of speakers by provid-

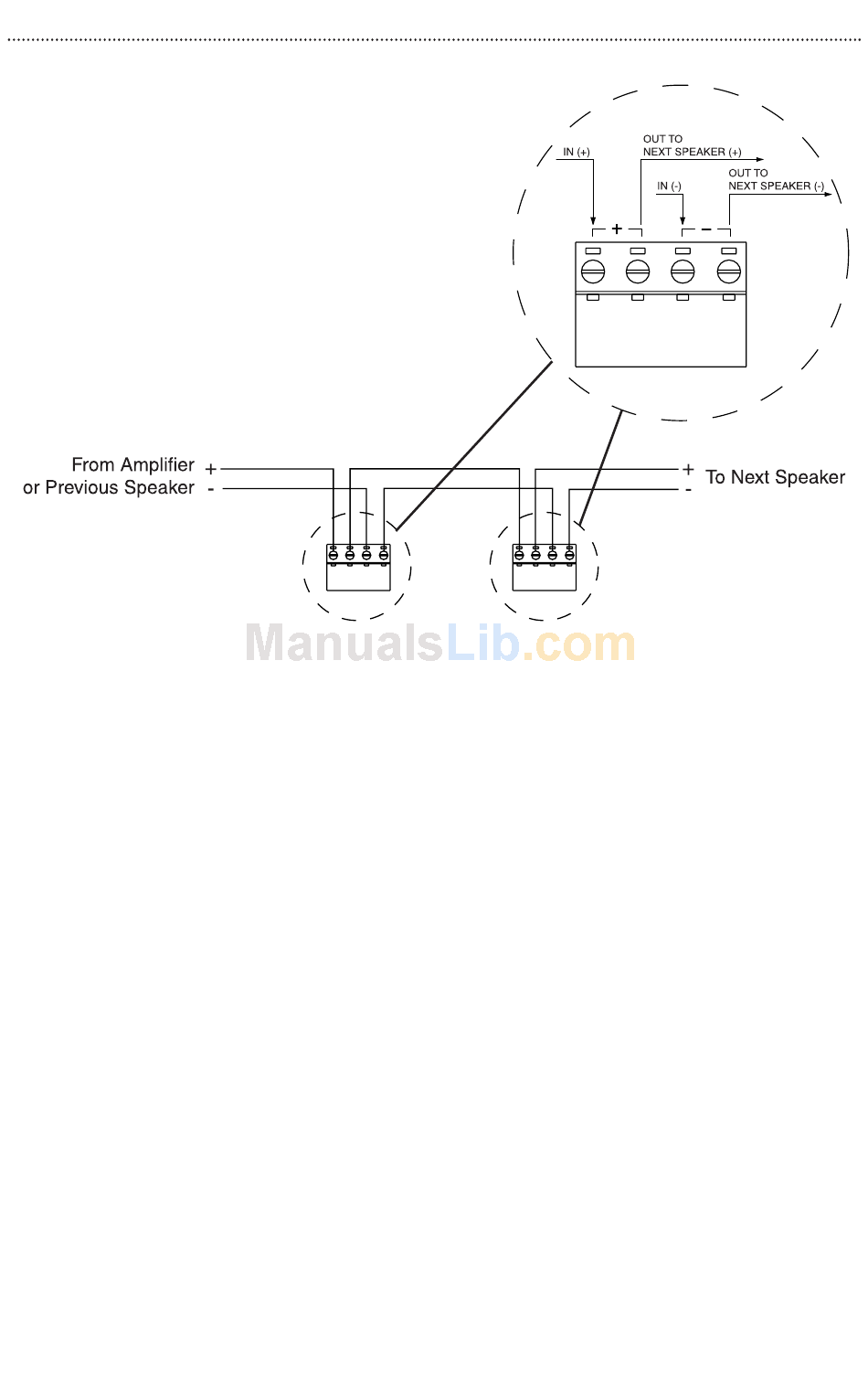

ing a second terminal of each polarity. Refer to

the figures for proper wiring for daisy chaining

of terminals.

Keep the same polarity terminals wired together to ensure correct phasing. In order

to provide the best possible sound, all of the speakers in a system need to be push-

ing out and pulling in at the same time.

If the connections to one speaker in a system are reversed from the others, that

speaker's movement will be out of sync with the other speakers.This will result in a

loss of low frequency response and will effect the overall performance of the sys-

tem.
