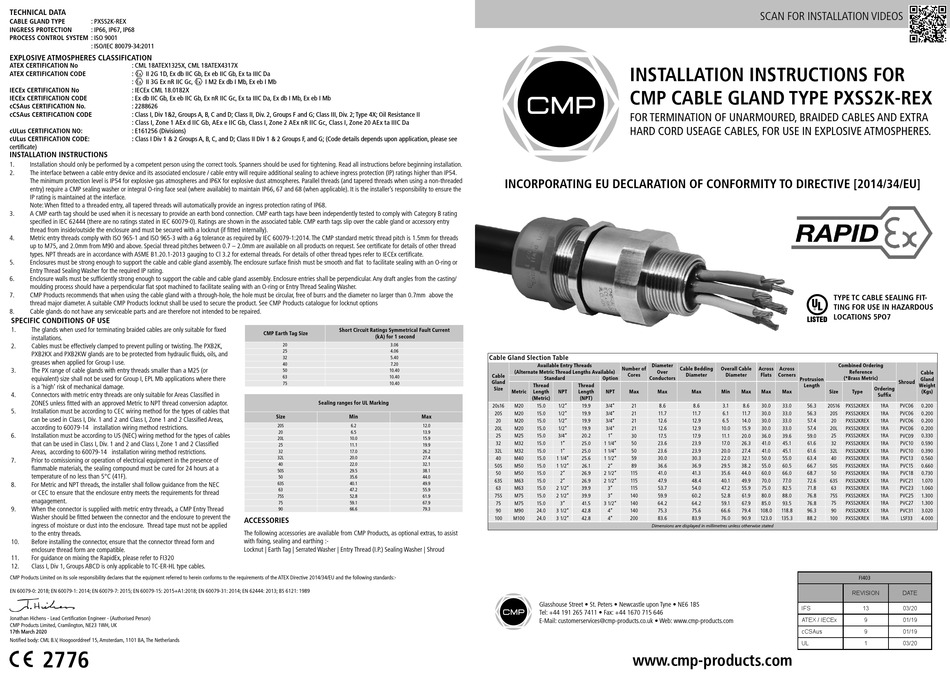

CMP PXSS2K-REX Installation Instructions

TECHNICAL DATA
CABLE GLAND TYPE : PXSS2K-REX
INGRESS PROTECTION : IP66, IP67, IP68
PROCESS CONTROL SYSTEM : ISO 9001
: ISO/IEC 80079-34:2011
EXPLOSIVE ATMOSPHERES CLASSIFICATION
ATEX CERTIFICATION No : CML 18ATEX1325X, CML 18ATEX4317X
ATEX CERTIFICATION CODE : ^ II 2G 1D, Ex db IIC Gb, Ex eb IIC Gb, Ex ta IIIC Da
: ^ II 3G Ex nR IIC Gc, ^ I M2 Ex db I Mb, Ex eb I Mb
IECEx CERTIFICATION No : IECEx CML 18.0182X
IECEx CERTIFICATION CODE : Ex db IIC Gb, Ex eb IIC Gb, Ex nR IIC Gc, Ex ta IIIC Da, Ex db I Mb, Ex eb I Mb
cCSAus CERTIFICATION No. : 2288626
cCSAus CERTIFICATION CODE : Class I, Div 1&2, Groups A, B, C and D; Class II, Div. 2, Groups F and G; Class III, Div. 2; Type 4X; Oil Resistance II
: Class I, Zone 1 AEx d IIC Gb, AEx e IIC Gb, Class I, Zone 2 AEx nR IIC Gc, Class I, Zone 20 AEx ta IIIC Da
cULus CERTIFICATION NO: : E161256 (Divisions)
cULus CERTIFICATION CODE: : Class I Div 1 & 2 Groups A, B, C, and D; Class II Div 1 & 2 Groups F, and G; (Code details depends upon application, please see
certificate)
INSTALLATION INSTRUCTIONS
1. Installation should only be performed by a competent person using the correct tools. Spanners should be used for tightening. Read all instructions before beginning installation.
2. The interface between a cable entry device and its associated enclosure / cable entry will require additional sealing to achieve ingress protection (IP) ratings higher than IP54.
The minimum protection level is IP54 for explosive gas atmospheres and IP6X for explosive dust atmospheres. Parallel threads (and tapered threads when using a non-threaded
entry) require a CMP sealing washer or integral O-ring face seal (where available) to maintain IP66, 67 and 68 (when applicable). It is the installer's responsibility to ensure the
IP rating is maintained at the interface.
Note: When fitted to a threaded entry, all tapered threads will automatically provide an ingress protection rating of IP68.
3. A CMP earth tag should be used when it is necessary to provide an earth bond connection. CMP earth tags have been independently tested to comply with Category B rating
specified in IEC 62444 (there are no ratings stated in IEC 60079-0). Ratings are shown in the associated table. CMP earth tags slip over the cable gland or accessory entry
thread from inside/outside the enclosure and must be secured with a locknut (if fitted internally).
4. Metric entry threads comply with ISO 965-1 and ISO 965-3 with a 6g tolerance as required by IEC 60079-1:2014. The CMP standard metric thread pitch is 1.5mm for threads
up to M75, and 2.0mm from M90 and above. Special thread pitches between 0.7 – 2.0mm are available on all products on request. See certificate for details of other thread
types. NPT threads are in accordance with ASME B1.20.1-2013 gauging to Cl 3.2 for external threads. For details of other thread types refer to IECEx certificate.
5. Enclosures must be strong enough to support the cable and cable gland assembly. The enclosure surface finish must be smooth and flat to facilitate sealing with an O-ring or
Entry Thread Sealing Washer for the required IP rating.
6. Enclosure walls must be sufficiently strong enough to support the cable and cable gland assembly. Enclosure entries shall be perpendicular. Any draft angles from the casting/
moulding process should have a perpendicular flat spot machined to facilitate sealing with an O-ring or Entry Thread Sealing Washer.
7. CMP Products recommends that when using the cable gland with a through-hole, the hole must be circular, free of burrs and the diameter no larger than 0.7mm above the
thread major diameter. A suitable CMP Products locknut shall be used to secure the product. See CMP Products catalogue for locknut options
8. Cable glands do not have any serviceable parts and are therefore not intended to be repaired.
SPECIFIC CONDITIONS OF USE
1. The glands when used for terminating braided cables are only suitable for fixed
installations.
2. Cables must be effectively clamped to prevent pulling or twisting. The PXB2K,
PXB2KX and PXB2KW glands are to be protected from hydraulic fluids, oils, and
greases when applied for Group I use.
3. The PX range of cable glands with entry threads smaller than a M25 (or
equivalent) size shall not be used for Group I, EPL Mb applications where there
is a 'high' risk of mechanical damage.
4. Connectors with metric entry threads are only suitable for Areas Classified in
ZONES unless fitted with an approved Metric to NPT thread conversion adaptor.
5. Installation must be according to CEC wiring method for the types of cables that
can be used in Class I, Div. 1 and 2 and Class I, Zone 1 and 2 Classified Areas,
according to 60079-14 installation wiring method restrictions.
6. Installation must be according to US (NEC) wiring method for the types of cables
that can be used in Class I, Div. 1 and 2 and Class I, Zone 1 and 2 Classified
Areas, according to 60079-14 installation wiring method restrictions.
7. Prior to comissioning or operation of electrical equipment in the presence of
flammable materials, the sealing compound must be cured for 24 hours at a
temperature of no less than 5°C (41F).
8. For Metric and NPT threads, the installer shall follow guidance from the NEC
or CEC to ensure that the enclosure entry meets the requirements for thread
enagagement.
9. When the connector is supplied with metric entry threads, a CMP Entry Thread
Washer should be fitted between the connector and the enclosure to prevent the
ingress of moisture or dust into the enclosure. Thread tape must not be applied
to the entry threads.
10. Before installing the connector, ensure that the connector thread form and
enclosure thread form are compatible.
11. For guidance on mixing the RapidEx, please refer to FI320
12. Class I, Div 1, Groups ABCD is only applicable to TC-ER-HL type cables.
CMP Products Limited on its sole responsibility declares that the equipment referred to herein conforms to the requirements of the ATEX Directive 2014/34/EU and the following standards:-
EN 60079-0: 2018; EN 60079-1: 2014; EN 60079-7: 2015; EN 60079-15: 2015+A1:2018; EN 60079-31: 2014; EN 62444: 2013; BS 6121: 1989
Jonathan Hichens - Lead Certification Engineer - (Authorised Person)
CMP Products Limited, Cramlington, NE23 1WH, UK
17th March 2020
Notified body: CML B.V, Hoogoorddreef 15, Amsterdam, 1101 BA, The Netherlands
2776
Short Circuit Ratings Symmetrical Fault Current
CMP Earth Tag Size
(kA) for 1 second
20 3.06
25 4.06
32 5.40
40 7.20
50 10.40
63 10.40
75 10.40
Sealing ranges for UL Marking
Size Min Max
20S 6.2 12.0
20 6.5 13.9
20L 10.0 15.9
25 11.1 19.9
32 17.0 26.2
32L 20.0 27.4
40 22.0 32.1
50S 29.5 38.1
50 35.6 44.0
63S 40.1 49.9
63 47.2 55.9
75S 52.8 61.9
75 59.1 67.9
90 66.6 79.3
ACCESSORIES
The following accessories are available from CMP Products, as optional extras, to assist
with fixing, sealing and earthing :-
Locknut | Earth Tag | Serrated Washer | Entry Thread (I.P.) Sealing Washer | Shroud
INSTALLATION INSTRUCTIONS FOR
CMP CABLE GLAND TYPE PXSS2K-REX
FOR TERMINATION OF UNARMOURED, BRAIDED CABLES AND EXTRA
HARD CORD USEAGE CABLES, FOR USE IN EXPLOSIVE ATMOSPHERES.
INCORPORATING EU DECLARATION OF CONFORMITY TO DIRECTIVE [2014/34/EU]
Cable Gland Slection Table
Available Entry Threads Diameter
Number of
(Alternate Metric Thread Lengths Available) Over
Cores
Cable
Standard Option Conductors
Gland
Thread Thread
Size
Metric Length NPT Length NPT Max Max
(Metric) (NPT)
20s16 M20 15.0 1/2" 19.9 3/4" 21 8.6
20S M20 15.0 1/2" 19.9 3/4" 21 11.7
20 M20 15.0 1/2" 19.9 3/4" 21 12.6
20L M20 15.0 1/2" 19.9 3/4" 21 12.6
30 17.5
25 M25 15.0 3/4" 20.2 1"
32 M32 15.0 1" 25.0 1 1/4" 50 23.6
32L M32 15.0 1" 25.0 1 1/4" 50 23.6
40 M40 15.0 1 1/4" 25.6 1 1/2" 59 30.0
50S M50 15.0 1 1/2" 26.1 2" 89 36.6
50 M50 15.0 2" 26.9 2 1/2" 115 41.0
63S M63 15.0 2" 26.9 2 1/2" 115 47.9
63 M63 15.0 2 1/2" 39.9 3" 115 53.7
75S M75 15.0 2 1/2" 39.9 3" 140 59.9
75 M75 15.0 3" 41.5 3 1/2" 140 64.2
90 M90 24.0 3 1/2" 42.8 4" 140 75.3
100 M100 24.0 3 1/2" 42.8 4" 200 83.6
Dimensions are displayed in millimetres unless otherwise stated
Glasshouse Street • St. Peters • Newcastle upon Tyne • NE6 1BS
Tel: +44 191 265 7411 • Fax: +44 1670 715 646
E-Mail: customerservices@cmp-products.co.uk • Web: www.cmp-products.com
www.cmp-products.com
SCAN FOR INSTALLATION VIDEOS
TYPE TC CABLE SEALING FIT-
TING FOR USE IN HAZARDOUS
LOCATIONS 5PO7
Combined Ordering
Cable Bedding Overall Cable Across Across
Reference
Diameter Diameter Flats Corners
(*Brass Metric)
Protrusion
Length
Max Min Max Max Max Size Type
8.6 3.1 8.6 30.0 33.0 56.3 20S16 PXSS2KREX
11.7 6.1 11.7 30.0 33.0 56.3 20S PXSS2KREX
12.9 6.5 14.0 30.0 33.0 57.4 20 PXSS2KREX
12.9 10.0 15.9 30.0 33.0 57.4 20L PXSS2KREX
17.9 11.1 20.0 36.0 39.6 59.0
25 PXSS2KREX
23.9 17.0 26.3 41.0 45.1 61.6 32 PXSS2KREX
23.9 20.0 27.4 41.0 45.1 61.6 32L PXSS2KREX
30.3 22.0 32.1 50.0 55.0 63.4 40 PXSS2KREX
36.9 29.5 38.2 55.0 60.5 66.7 50S PXSS2KREX
41.3 35.6 44.0 60.0 66.0 68.7 50 PXSS2KREX
48.4 40.1 49.9 70.0 77.0 72.6 63S PXSS2KREX
54.0 47.2 55.9 75.0 82.5 71.8 63 PXSS2KREX
60.2 52.8 61.9 80.0 88.0 76.8 75S PXSS2KREX
64.2 59.1 67.9 85.0 93.5 76.8 75 PXSS2KREX
75.6 66.6 79.4 108.0 118.8 96.3 90 PXSS2KREX
83.9 76.0 90.9 123.0 135.3 88.2 100 PXSS2KREX
FI403
REVISION
IFS
ATEX / IECEx
cCSAus
UL
Cable
Gland
Shroud
Weight
Ordering
(Kgs)
Suffix
1RA PVC06 0.200
1RA PVC06 0.200
1RA PVC06 0.200
1RA PVC06 0.200
PVC09
1RA 0.330
1RA PVC10 0.590
1RA PVC10 0.390
1RA PVC13 0.560
1RA PVC15 0.660
1RA PVC18 0.730
1RA PVC21 1.070
1RA PVC23 1.060
1RA PVC25 1.300
1RA PVC27 1.300
1RA PVC31 3.020
1RA LSF33 4.000
DATE
13 03/20
9 01/19
9 01/19
1 03/20
