CMP T3CDS Installation Instructions

TECHNICAL DATA
CABLE GLAND TYPE : T3CDS / T3CDSPB
INGRESS PROTECTION : IP66, IP68, NEMA 4X, DELUGE TO DTS01-91
PROCESS CONTROL SYSTEM : BS EN ISO 9001
: ISO / IEC 80079-34:2011
INSTALLATION INSTRUCTIONS
Installation should only be performed by a competent person using the correct tools. Read all instructions before beginning installation.
CERTIFICATION CONDITIONS
ATEX & IECEx 1. The T3** Type cable glands shall not be used to terminate on braided cables in group I applications.
2. The glands when used for terminating braided cables are only suitable for fixed installations. Cables must be effectively clamped to prevent pulling or twisting.
1. Cable gland connectors material may be of brass, aluminum or stainless steel.
CSA us
2. Connectors with metric entry threads are only suitable for Areas Classified in ZONES unless fitted with an approved Metric to NPT thread conversion adaptor.
3. According to US (NEC) wiring method for the types of cables that can be used in Class I Zone 1 and 2 Classified Areas, should be in accordance of NFPA-70
installation wiring method restrictions.
c CSA 1. Cable gland connectors' material may be of brass, aluminium or stainless steel.
2. These glands are not suitable for use with flameproof enclosures installed in Group IIC atmospheres, which have a volume greater than 2000 cc (2 Litre).
3. These Glands are for use with Certified Marine Shipboard metal braided cables constructed according to CSA Std. 245 and IEEE45/IEC600092-353 Standards, or
Certified equivalent), for use on Shipboards and Offshore Rigs/platforms only.
4. "Triton CDS" cable gland connectors when installed into Class I, Division 2 Classified Areas, are not suitable to be interfaced with an explosion proof enclosure
containing arcing and sparking devices, unless installed in conjunction with an approved explosion proof sealing fitting.
ACCESSORIES
The following accessories are available from CMP Products, as optional extras, to assist with fixing, sealing and earthing: Locknut, Earth Tag, Serrated Washer, Entry Thread (I.P.) Sealing Washer, Shroud
Number of turns to
tighten
20S16 20S 20 25S
0.5 13.2 15.9 20.9 22.0
1 12.5 15.3 20.0 21.2
1.5 11.9 14.7 19.0 20.4
2 11.2 14.2 18.1 19.6
2.5 10.5 13.6 17.2 18.8
3 9.8 13.0 16.2 18.0
3.5 9.2 12.4 15.3 17.2
4 8.5 11.8 14.4 16.4
4.5 7.8 11.2 13.4 15.6
5 7.1 10.7 12.5 14.8
5.5 6.5 10.1 12.0 14.0
6 5.8 9.5
Available Entry Threads
Cable
(Alternate Metric Thread Lengths Available)
Bedding
Cable
Diameter
Standard Option
Gland
Size Thread
Thread Length
Metric NPT Length (NPT) NPT Min
(Metric) "E"
"E"
20S/16 M20 15.0 ½" 19.9 ¾" 3.1
20S M20 15.0 ½" 19.9 ¾" 6.1
20 M20 15.0 ½" 19.9 ¾" 6.5
25S M25 15.0 ¾" 20.2 1" 11.1
25 M25 15.0 ¾" 20.2 1" 11.1
32 M32 15.0 1" 25.0 1 ¼" 17.0
40 M40 15.0 1 ¼" 25.6 1 ½" 22.0
50S M50 15.0 1 ½" 26.1 2" 29.5
50 M50 15.0 2" 26.9 2 ½" 35.6
63S M63 15.0 2" 26.9 2 ½" 40.1
63 M63 15.0 2 ½" 39.9 3" 47.2
75S M75 15.0 2 ½" 39.9 3" 52.8
75 M75 15.0 3" 41.5 3 ½" 59.1
90 M90 24.0 3 ½" 42.8 4" 66.6
100 M100 24.0 3 ½" 42.8 4" 76.0
115 M115 24.0 4" 44.0 5" 86.0
130 M130 24.0 5" 46.8 6" 97.0
Dimensions are displayed in millimetres unless otherwise stated
Note: Standard Seal (Black) Temperature Range = -60°C to +130°C,
High Temperature Seal (Brown) Temperature Range = -20°C to +200°C for High Temperature Seal add 'HT' to Ordering Reference after Gland Type e.g. 20ST3CDSHT1RA.
** Insert "PB" into the code for T3CDSPB glands e.g. 20T3CDSPB1RA
*Stepped cone is for single wire armour and grooved cone is for all other armours
CMP Products Limited on its sole responsibility declares that the equipment referred to herein conforms to the requirements of the ATEX Directive 2014/34/EU and the following standards:
EN 60079-0:2012+A11:2013, EN 60079-1:2014, EN 60079-7:2015, EN 60079-15:2010, EN 60079-31:2014
David Willcock - Certification Engineer (Authorised Person)
CMP Products Limited, Cramlington, NE23 1WH, UK
24th June 2015
0518
Notified Body: Sira Certification Service, Unit 6, Hawarden Industrial Park, Hawarden, CH5 3US, UK
www.cmp-products.com
EXPLOSIVE ATMOSPHERES CLASSIFICATION
ATEX CERTIFICATION No : SIRA13ATEX1073X, SIRA13ATEX4079X
ATEX CERTIFICATION CODE : ^ II 2G, II 1D, Ex d IIC Gb, Ex e IIC Gb, Ex ta IIIC Da, ^ II 3G Ex nR IIC Gc,
^ IM2, Ex d I Mb, Ex e I Mb
IECEx CERTIFICATION No : IECEx SIR.13.0028X
IECEx CERTIFICATION CODE : Ex d IIC Gb, Ex e IIC Gb, Ex nR IIC Gc, Ex ta IIIC Da, Ex d I Mb, Ex e I Mb
cCSAus CERTIFICATION No : 1310517X
CSA us CERTIFICATION CODE* : Class II Div 2, Groups E,F and G, Class III,
Class I Zone 1 AEx e II, Class I Zone 2 AEx nR II, Enclosure Type 3,4 and 4X, OIL RES II
c CSA CERTIFICATION CODE : Class I, Div 2, Groups A,B,C and D, Class II Div 2, Groups E,F and G, Class III,
Ex d IIC, Ex e II, Ex nR II, Enclosure Type 3,4 and 4X, OIL RES II
UL CERTIFICATION NO : E200163
UL CERTIFICATION CODE : Class I Zone 1, AEx e II
*T3CDS can be used in Class 1, Division 2 Locations for non-explosionproof applications in accordance with Article 501 of the NEC Code
Outer Seal Tightening Guide
GLAND SIZE
25 32 40 50S 50 63S
CABLE DIAMETER
26.2 33.9
25.4 32.9 40.4 46.7 52.8 59.2
24.6 31.9 39.0 45.4 51.4 57.7
23.8 30.8 37.6 44.1 50.0 56.2
23.0 29.8 36.2 42.9 48.7 54.7
22.2 28.8 34.8 41.6 47.3 53.2
21.4 27.8 33.5 40.3 45.9 51.6
20.6 26.8 32.1 39.0 44.5 50.1
19.8 25.7 30.7 37.8 43.2 48.6
19.0 24.7 29.3 36.5 41.8 47.1
18.2 23.7 27.9 35.2 40.4 45.6
Armour Range
Overall
Across Across
Cable
Grooved Stepped
Flats Corners
Diameter Protrusion
Cone (X) Cone (W)
Length
Max Min Max Min Max Min Max Max Max Size
8.6 6.1 13.1 0.3 1.0 0.8 1.25 24.0 26.4 78.7 20S16
11.6 9.5 15.9 0.3 1.0 0.8 1.25 24.0 26.4 78.7 20S
13.9 12.5 20.9 0.4 1.0 0.8 1.25 30.5 33.6 76.2
19.9 14.0 22.0 0.4 1.2 1.25 1.6 37.5 41.3 88.8 25S
19.9 18.2 26.2 0.4 1.2 1.25 1.6 37.5 41.3 88.7
26.2 23.7 33.9 0.4 1.2 1.6 2.0 46.0 50.6 90.7
32.1 27.9 40.4 0.4 1.6 1.6 2.0 55.0 60.5 93.2
38.1 35.2 46.7 0.4 1.6 2.0 2.5 60.0 66.0 100.7 50S
44.0 40.4 53.0 0.6 1.6 2.0 2.5 70.1 77.1 105.8
49.9 45.6 59.4 0.6 1.6 2.0 2.5 75.0 82.5 102.5 63S
55.9 54.6 65.8 0.6 1.6 2.0 2.5 80.0 88.0 105.4
61.9 59.0 72.0 0.6 1.6 2.0 2.5 90.0 99.0 110.6 75S
67.9 66.7 78.4 0.6 1.6 2.5 3.0 100.0 110.0 120.3
78.6 76.2 90.3 0.8 1.6 3.15 4.0 115.0 126.5 138.9
90.9 86.1 101.4 0.8 1.6 3.15 4.0 127.0 139.7 128.2 100
97.9 101.5 110.2 0.8 1.6 3.15 4.0 138.0 151.8 161.3 115
114.9 110.2 123.2 0.8 1.6 3.15 4.0 157.0 172.7 173.3 130
Glasshouse Street • St. Peters • Newcastle upon Tyne • NE6 1BS
Tel: +44 191 265 7411 • Fax: +44 1670 715 646
E-Mail: customerservices@cmp-products.co.uk • Web: www.cmp-products.com
Printed on: 25 September 2017

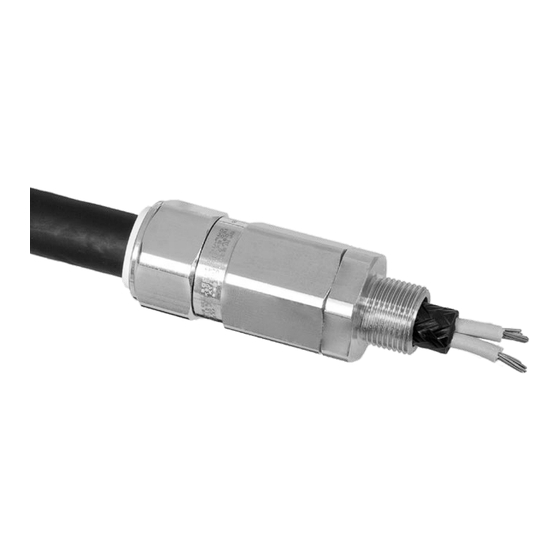

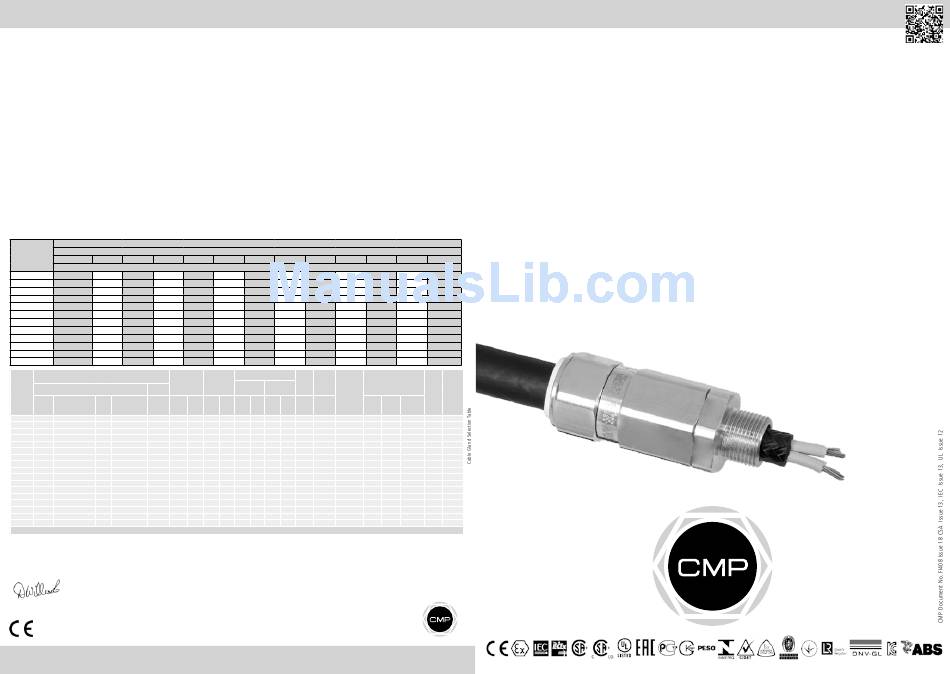

INSTALLATION INSTRUCTIONS FOR
CMP CABLE GLAND TYPES
T3CDS & T3CDSPB
CABLE GLAND FOR USE WITH SINGLE WIRE ARMOUR (SWA), WIRE BRAID, STRIP,
AND TAPE ARMOUR (T3CDSPB VERSION CAN ALSO BE USED ON CABLE WITH A LEAD
SHEATH). FOR USE IN EXPLOSIVE ATMOSPHERES.
INCORPORATING EU DECLARATION OF CONFORMITY TO DIRECTIVE [2014/34/EU]
CMP TRITON™ CDS™ DELUGE PROOF CABLE GLAND FEATURING
63 75S 75
COMPENSATING DISPLACEMENT SEAL SYSTEM.
65.9 72.1 78.5
64.6 70.6 77.2
63.4 69.2 75.9
62.1 67.7 74.6
60.9 66.3 73.3
59.6 64.8 71.9
58.4 63.4 70.6
57.1 61.9 69.3
55.9 60.5 68.0
54.6 59.0 66.7
Combined Ordering
Reference Cable
(*Brass Metric) Gland
Shroud
Weight
Ordering (Kgs)
Type
Suffix
T3CDS 1RA PVC36 0.20
T3CDS 1RA PVC36 0.20
20 T3CDS 1RA PVC06 0.28
T3CDS 1RA PVC09 0.44
25 T3CDS 1RA PVC09 0.44
32 T3CDS 1RA PVC11 0.63
40 T3CDS 1RA PVC15 0.91
T3CDS 1RA PVC18 1.12
50 T3CDS 1RA PVC21 1.60
T3CDS 1RA PVC23 1.73
63 T3CDS 1RA PVC25 1.78
T3CDS 1RA PVC28 2.57
75 T3CDS 1RA PVC30 3.33
90 T3CDS 1RA PVC32 4.87
T3CDS 1RA LSF33 4.97
T3CDS 1RA LSF34 7.72
T3CDS 1RA LSF35 9.78
SCAN FOR INSTALLATION VIDEOS
CABLE GLAND TYPES
T3CDS & T3CDSPB
Logos shown for illustration purposes only. Please check certification for details
