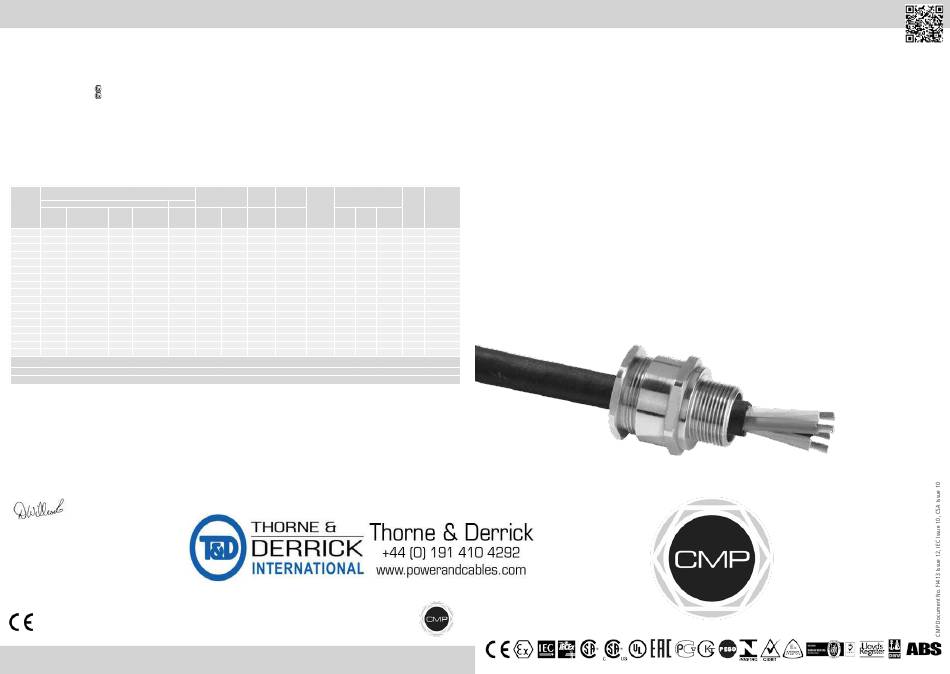

CMP A2F Installation Instructions

TECHNICAL DATA
CABLE GLAND TYPE : A2F
INGRESS PROTECTION : IP66 IP67, IP68, NEMA 4X
PROCESS CONTROL SYSTEM : BS EN ISO 9001
ISO/IEC 80079-34:2011
EXPLOSIVE ATMOSPHERES CLASSIFICATION
ATEX CERTIFICATION No : SIRA 13ATEX1068X, SIRA 13ATEX4074X
ATEX CERTIFICATION CODE : II 2G, II 1D Ex d IIC Gb, Ex e IIC Gb, Ex ta IIIC Da
: II 3G Ex nR IIC Gc I M2 Ex d I Mb, Ex e I Mb
IECEx CERTIFICATION No : IECEx SIR 13.0023X
IECEx CERTIFICATION CODE : Ex d IIC Gb, Ex e IIC Gb, Ex nR IIC Gc, Ex ta IIIC Da, Ex d I Mb, Ex e I Mb
CSA CERTIFICATION No : 1211841
CSA CERTIFICATION CODE : Ex d IIC, Ex e II, Ex nR II, Enclosure Type 4X, Class 1, Div. 1, Div. 2, Groups B,C & D
INSTALLATION INSTRUCTIONS
Installation should only be performed by a competent person using the correct tools. Spanners shoudl be used for tightening. Read all instructions before beginning installation.

SPECIAL CONDITIONS FOR SAFE USE

None.

ACCESSORIES

The following accessories are available from CMP Products, as optional extras, to assist with fixing, sealing and earthing :-
Locknut, Earth Tag, Serrated Washer, Entry Thread (I.P.) Sealing Washer, Shroud
Available Entry Threads
(Alternate Metric Thread Lengths Available)
Cable Gland Standard Option
Size
Thread Length Thread
Metric NPT NPT
(Metric) Length (NPT)
16 M16 15.0 - - -
20S/16 M20 15.0 1/2" 19.9 3/4"
20S M20 15.0 1/2" 19.9 3/4"
20 M20 15.0 1/2" 19.9 3/4"
25 M25 15.0 3/4" 20.2 1"
32 M32 15.0 1" 25.0 1 1/4"
40 M40 15.0 1 1/4" 25.6 1 1/2"
50S M50 15.0 1 1/2" 26.1 2"
50 M50 15.0 2" 26.9 2 1/2"
63S M63 15.0 2" 26.9 2 1/2"
63 M63 15.0 2 1/2" 39.9 3"
75S M75 15.0 2 1/2" 39.9 3"
75 M75 15.0 3" 41.5 3 1/2"
90 M90 24.0 3 1/2" 42.8 4"
100 M100 24.0 4" 44.0 5"
115 M115 24.0 4" 44.0 5"
130 M130 24.0 5" 46.8 6"
*Note : For material options please add the following suffix to change the Ordering Reference ; Brass (no suffix required), Nickel Plated Brass "5", 316 Grade Stainless Steel "4", Copper Free Aluminium "1"
For NPT options please add the following digits to the material suffix ; 1/2" = 31, 3/4" = 32, 1" = 33, 1 1/4" = 34, 1 1/2" = 35, 2" = 36, 2 1/2" = 37, 3" = 38, 3 1/2" = 39, 4" = 310 (Brass requires prefix "0")
Examples : 32A2F1RA534 = Nickel Plated Brass 1-1/4" NPT, 50SA2F1RA035 = Brass 1-1/2" NPT, 25A2F1RA432 = Stainless Steel 3/4" NPT, 20A2F1RA5 = Nickel Plated Brass M20
Dimensions are displayed in millimetres unless otherwise stated
Note: Standard Seal (Black) Temperature Range = -60°C to +130°C,
High Temperature Seal (Brown) Temperature Range = -20°C to +200°C for High Temperature Seal add 'HT' to Ordering Reference after Gland Type e.g. 20SA2FHT1RA.
CMP Products Limited on its sole responsibility declares that the equipment referred to herein conforms to the requirements of the ATEX Directive 2014/34/EU and the following
standards:-
EN 60079-0:2012, EN 60079-1:2007, EN 60079-7:2007, EN 60079-15:2010, EN 60079-31:2009, BS 6121:1989, EN 62444:2013, EN 61241-0:2004, EN 61241-1:2004
David Willcock - Certification Engineer (Authorised Person)
CMP Products Limited, Cramlington, UK, NE23 1WH
24th June 2015
0518
Notified Body: Sira Certification Service, Unit 6, Hawarden Industrial Park, Hawarden, CH5 3US, UK
www.cmp-products.com
Combined Ordering
Overall Cable Across Across
Reference
Diameter Flats Corners
(*Brass Metric)
Protrusion
Length
Ordering
Min Max Max Max Size Type
Suffix
3.2 8.7 24.0 26.4 25.1 16 A2F
3.2 8.7 24.0 26.4 25.1 20S16 A2F
6.1 11.7 24.0 26.4 25.1 20S A2F
6.5 14.0 27.0 29.7 27.2 20 A2F
11.1 20.0 36.0 39.6 35.5 25 A2F
17.0 26.3 41.0 45.1 34.2 32 A2F
23.5 32.2 50.0 55.0 35.1 40 A2F
31.0 38.2 55.0 60.5 32.0 50S A2F
35.6 44.0 60.0 66.0 36.3 50 A2F
41.5 49.9 70.5 77.6 33.5 63S A2F
47.2 55.9 75.0 82.5 35.8 63 A2F
54.0 61.9 80.0 88.0 34.2 75S A2F
61.1 67.9 84.0 92.4 40.6 75 A2F
66.6 79.9 108.0 118.8 58.3 90 A2F
76.0 91.0 123.0 135.3 55.2 100 A2F
86.0 97.9 133.4 146.7 65.2 115 A2F
97.0 114.9 152.4 167.6 73.9 130 A2F
Glasshouse Street • St. Peters • Newcastle upon Tyne • NE6 1BS
Tel: +44 191 265 7411 • Fax: +44 1670 715 646
E-Mail: customerservices@cmp-products.co.uk • Web: www.cmp-products.com
INSTALLATION INSTRUCTIONS FOR
A2F CABLE GLAND
CABLE GLAND FOR USE WITH UNARMOURED AND BRAID ARMOURED CABLES
INCORPORATING EU DECLARATION OF CONFORMITY TO DIRECTIVE [2014/34/EU]
Cable
Shroud Gland Weight
(Kgs)
1RA PVC04 0.060
1RA PVC04 0.070
1RA PVC04 0.060
1RA PVC05 0.070
1RA PVC09 0.130
1RA PVC10 0.150
1RA PVC13 0.200
1RA PVC15 0.260
1RA PVC18 0.270
1RA PVC21 0.430
1RA PVC23 0.400
1RA PVC24 0.520
1RA PVC26 0.500
1RA PVC31 1.600
1RA LSF33 1.780
1RA LSF34 2.670
1RA LSF35 3.800
SCAN FOR INSTALLATION VIDEOS
CABLE GLAND
TYPE
A2F
Logo's shown for illustration purposes only. Please check certification for details
