CMP PXRC-REX Installation Instructions

TECHNICAL DATA
CABLE GLAND TYPE : PXRC-REX
INGRESS PROTECTION : IP66
PROCESS CONTROL SYSTEM : ISO 9001
: ISO/IEC 80079-34:2011
EXPLOSIVE ATMOSPHERES CLASSIFICATION
ATEX CERTIFICATION No : CML 18ATEX1325X, CML 18ATEX4317X
ATEX CERTIFICATION CODE : ^II 2G 1D Ex db IIC Gb / Ex eb IIC Gb / Ex ta IIIC Da
IECEx CERTIFICATION No : IECEx CML 18.0182X
IECEx CERTIFICATION CODE : Ex db IIC Gb / Ex eb IIC Gb / Ex ta IIIC Da
INSTALLATION INSTRUCTIONS
1. Installation should only be performed by a competent person using the correct tools. Spanners should be used for tightening. Read all instructions before beginning
installation.
2. The interface between a cable entry device and its associated enclosure / cable entry will require additional sealing to achieve ingress protection (IP) ratings higher than
IP54. The minimum protection level is IP54 for explosive gas atmospheres and IP6X for explosive dust atmospheres. Parallel threads (and tapered threads when using
a non-threaded entry) require a CMP sealing washer or integral O-ring face seal (where available) to maintain IP66, 67 and 68 (when applicable). It is the installer's
responsibility to ensure the IP rating is maintained at the interface.
Note: When fitted to a threaded entry, all tapered threads will automatically provide an ingress protection rating of IP68.
3. A CMP earth tag should be used when it is necessary to provide an earth bond connection. CMP earth tags have been independently tested to comply with Category
B rating specified in IEC 62444 (there are no ratings stated in IEC 60079-0). Ratings are shown in the associated table. CMP earth tags slip over the cable gland or
accessory entry thread from inside/outside the enclosure and must be secured with a locknut (if fitted internally).
4. Metric entry threads comply with ISO 965-1 and ISO 965-3 with a 6g tolerance as required by IEC 60079-1:2014. The CMP standard metric thread pitch is 1.5mm for
threads up to M75, and 2.0mm from M90 and above. Special thread pitches between 0.7 – 2.0mm are available on all products on request. See certificate for details
of other thread types. NPT threads are in accordance with ASME B1.20.1-2013 gauging to Cl 3.2 for external threads. For details of other thread types refer to IECEx
certificate.
5. Enclosures must be strong enough to support the cable and cable gland assembly. The enclosure surface finish must be smooth and flat to facilitate sealing with an
O-ring or Entry Thread Sealing Washer for the required IP rating.
6. Enclosure walls must be sufficiently strong enough to support the cable and cable gland assembly. Enclosure entries shall be perpendicular. Any draft angles from the
casting/moulding process should have a perpendicular flat spot machined to facilitate sealing with an O-ring or Entry Thread Sealing Washer.
7. CMP Products recommends that when using the cable gland with a through-hole, the hole must be circular, free of burrs and the diameter no larger than 0.7mm above
the thread major diameter. A suitable CMP Products locknut shall be used to secure the product. See CMP Products catalogue for locknut options.
8. Cable glands do not have any serviceable parts and are therefore not intended to be repaired.
Short Circuit Ratings Symmetrical Fault Current
CMP Earth Tag Size
(kA) for 1 second
20 3.06
25 4.06
32 5.40
40 7.20
50 10.40
63 10.40
75 10.40
SPECIFIC CONDITIONS OF USE
When assembled to flexible conduit, the conduit must be effectively clamped to prevent twisting and pulling.
ACCESSORIES
The following accessories are available from CMP Products, as optional extras, to assist with fixing, sealing and earthing :-
Locknut | Earth Tag | Serrated Washer | Entry Thread (I.P.) Sealing Washer | Shroud *
CMP Products Limited on its sole responsibility declares that the equipment referred to herein conforms to the requirements of the ATEX Directive 2014/34/EU and the following
standards: -
EN 60079-0: 2018; EN 60079-1: 2014; EN 60079-7: 2015; EN 60079-15: 2015+A1:2018; EN 60079-31: 2014; EN 62444: 2013; BS 6121: 1989
David Willcock – Certification Engineer (Authorised Person)
CMP Products Limited, Cramlington, NE23 1WH, UK
15 APRIL 2019
2776

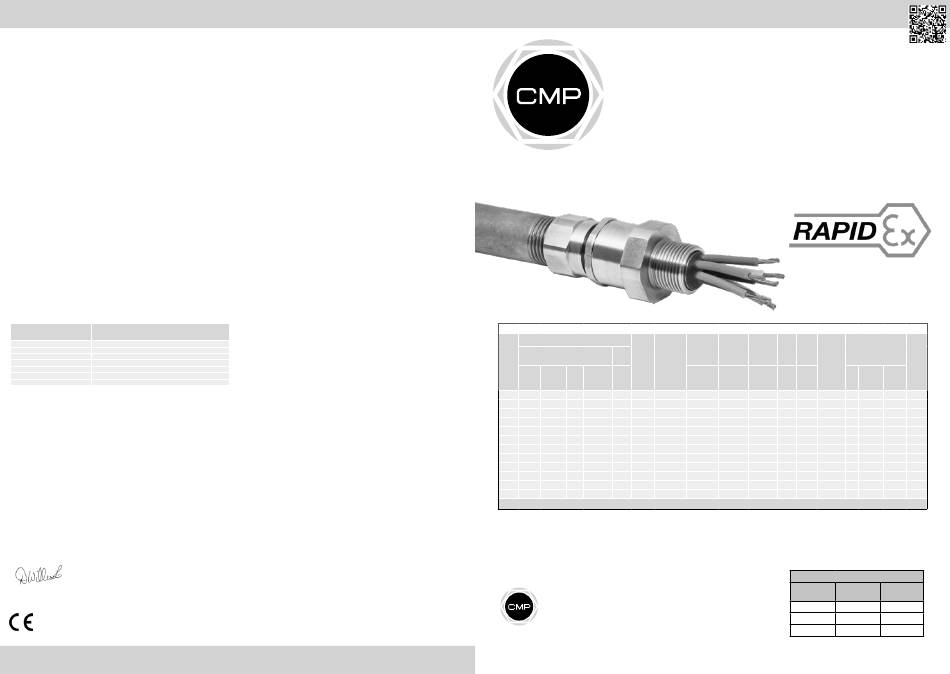

INSTALLATION INSTRUCTIONS FOR
CMP CABLE GLAND TYPE PXRC-REX
BARRIER CABLE GLAND FOR USE IN EXPLOSIVE ATMOSPHERES WITH BRAID,
UNARMOURED CABLE OR INDIVIDUAL CORES HOUSED IN CONDUIT.
INCORPORATING EU DECLARATION OF CONFORMITY TO DIRECTIVE [2014/34/EU]
Cable Gland Selection Table
Available Entry Threads
(Alternate Metric Thread Lengths Available)
Max Standard
Cable Standard Option
Number Female
Gland
Of Connection
Size
Thread Thread Cores Thread
Metric Length NPT Length NPT
(Metric) (NPT)
20 M20 15.0 1/2" 19.9 3/4" 21 M20
25 M25 15.0 3/4" 20.2 1" 30 M25
32 M32 15.0 1" 25.0 1 1/4" 50 M32
40 M40 15.0 1 1/4" 25.6 1 1/2" 59 M40
50S M50 15.0 1 1/2" 26.1 2" 89 M50
50 M50 15.0 2" 26.9 2 1/2" 115 M50
63S M63 15.0 2" 26.9 2 1/2" 115 M63
63 M63 15.0 2 1/2" 39.9 3" 115 M63
75S M75 15.0 2 1/2" 39.9 3" 140 M75
75 M75 15.0 3" 41.5 3 1/2" 140 M75
90 M90 24.0 3 1/2" 42.8 4" 140 M90
100 M100 24.0 3 1/2" 42.8 4" 200 M100
Dimensions are displayed in millimetres unless otherwise stated
