ABSCO SHEDS 30082SECOK Manual

Space saver shed
Hide thumbs

Advertisement

Quick Links

Download this manual
AU: 1800 029 701
N Z: 0800 466 444
When laying concrete slab, ensure there
is a rebated edge 25mm deep around the
perimeter. This will help water egress from
the base of the shed.
shed. For further assistance please visit our detailed
DOWNLOAD
OUR APP FOR
ASSEMBLY
At ABSCO Industries we are always looking to be
VIDEOS
number ONE, so please let us know what you think
ABSCO INDUSTRIES
Absco Industries
Assembly Instruction Manual

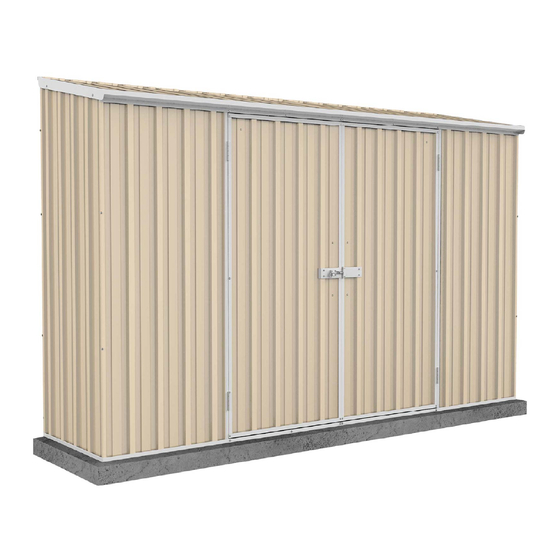

ABSCO SPACE SAVER SHED
MODEL: 30082SECOK
3.00mW x 0.78mD x 1.80mH, 1.95mH
admin@absco.com.au
www.abscosheds.com.au

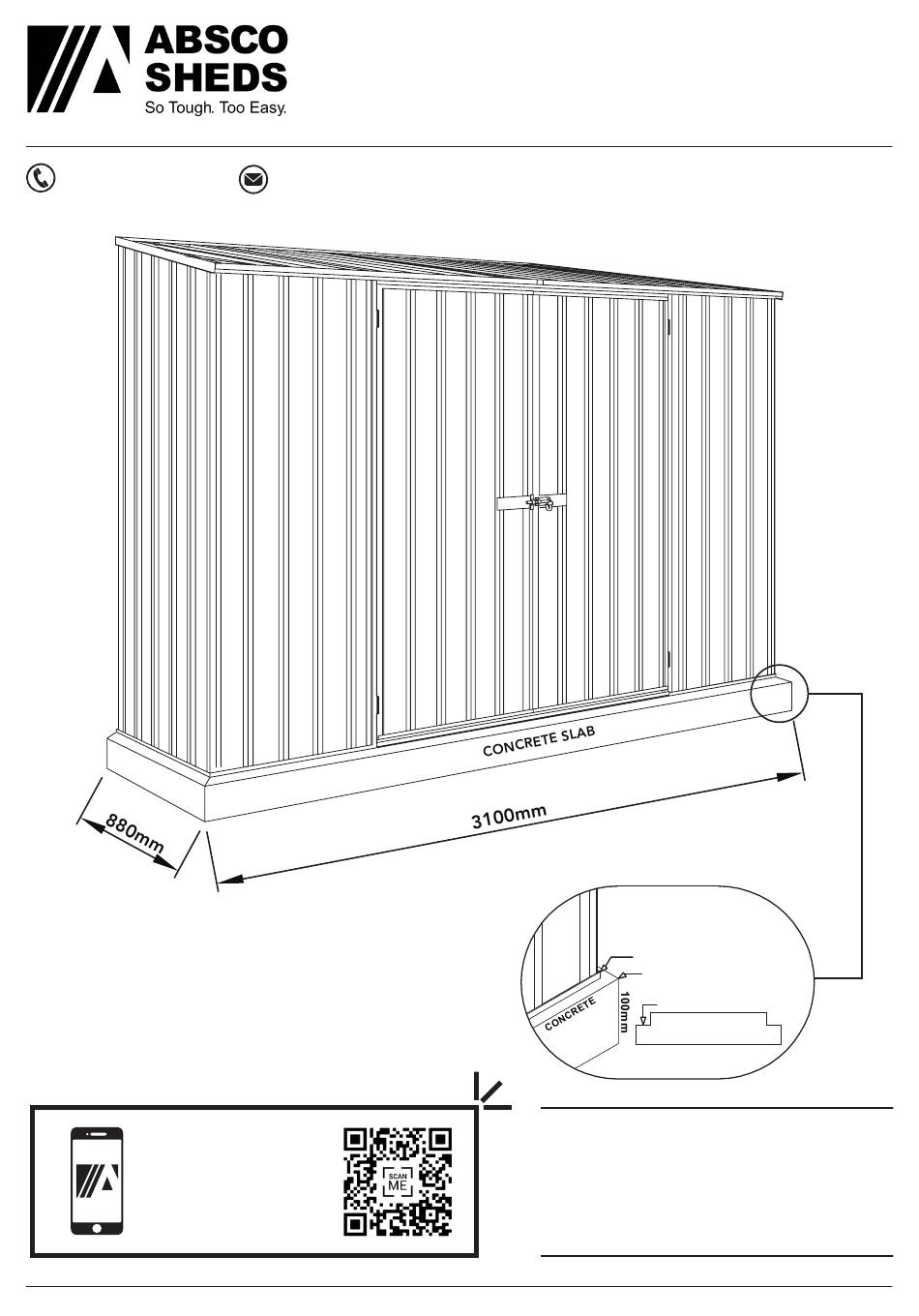

WHEN LAYING YOUR CONCRETE
SLAB, ENSURE THERE IS A
REBATED EDGE 25mm DEEP
AROUND THE PERIMETER
THIS WILL HELP WATER EGRESS
FROM THE BASE OF THE SHED
We thank you for choosing an Australian made
instructional video library at
Http://www.abscosheds.com.au/watch-videos
of our instructions. Feedback makes us better.
feedback@absco.com.au
ASSEMBLY INSTRUCTION MANUAL
Absco Industries
Premier Shed Model: 23151GK
Tell us about your experience!
Visit www.abscosheds.com.au/review
SHED MODEL: 23151GK
Model: 30082SECOK
FRONT: 2.26m
SIDE:
HEIGHT: 1.95m
BOTTOM CHANNEL
REBATED EDGE
75mm WIDE REBATE
CONCRETE SLAB
PLEASE LEAVE A REVIEW
21-11-2017
20/09/2023
1.52m
PAGE 01
1.1
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the 30082SECOK and is the answer not in the manual?

Questions and answers

Related Manuals for ABSCO SHEDS 30082SECOK

Summary of Contents for ABSCO SHEDS 30082SECOK

  • Page 1 ABSCO SPACE SAVER SHED MODEL: 30082SECOK 3.00mW x 0.78mD x 1.80mH, 1.95mH AU: 1800 029 701 admin@absco.com.au N Z: 0800 466 444 www.abscosheds.com.au Absco Industries Premier Shed Model: 23151GK FRONT: 2.26m SIDE: 1.52m HEIGHT: 1.95m WHEN LAYING YOUR CONCRETE SLAB, ENSURE THERE IS A...
  • Page 2 ABSCO SPACE SAVER SHED MODEL: 30082SECOK 3.00mW x 0.78mD x 1.80mH, 1.95mH GENERAL INSTRUCTIONS • Before commencing any assembly, read through these instructions in detail to gain a thorough understanding of assembly methods and associated details. • Unpack the carton and carefully identify and check off all the parts against the parts described and illustrated on "COMPONENTS PACKING LIST"...
  • Page 3 ABSCO SPACE SAVER SHED MODEL: 30082SECOK 3.00mW x 0.78mD x 1.80mH, 1.95mH COMPONENT PACKING LIST Check off all components. PART COMPONENT PART COMPONENT CHECK CHECK DESCRIPTION DESCRIPTION STEEL SHEET 1915 X 773mm CHANNEL L = 786mm STEEL SHEET CHANNEL 1915 X 773mm...
  • Page 4 ABSCO SPACE SAVER SHED MODEL: 30082SECOK 3.00mW x 0.78mD x 1.80mH, 1.95mH COMPONENT PACKING LIST Check off all components. PART COMPONENT PART COMPONENT CHECK CHECK DESCRIPTION DESCRIPTION 55AL 55AR CHANNEL CHANNEL L = 1496.5mm (58.9") L = 1496.5mm (58.9") 55CL...
  • Page 5 ABSCO SPACE SAVER SHED MODEL: 30082SECOK 3.00mW x 0.78mD x 1.80mH, 1.95mH COMPONENT PACKING LIST Check off all components. PART COMPONENT PART COMPONENT CHECK CHECK DESCRIPTION DESCRIPTION LIP TRIM L= 865mm JAMB L= 1568mm JAMB L= 1725mm JAMB L= 1120mm INSTRUCTIONS &...
  • Page 6 ABSCO SPACE SAVER SHED MODEL: 30082SECOK 3.00mW x 0.78mD x 1.80mH, 1.95mH SNAPTiTE ASSEMBLY GUIDE The Snaptite Assembly System locks end channels to all roof and wall sheets without the need for tools and fasteners. To assemble each panel, the perimeter channels are secured to the top and bottom of each panel.
  • Page 7 ABSCO SPACE SAVER SHED MODEL: 30082SECOK 3.00mW x 0.78mD x 1.80mH, 1.95mH Guide on Joining Spliced Channels The text marked on all parts must be shown on the same side as each other JOIN>> JOIN>> <<JOIN JOIN>> Step 1. Step 2.
  • Page 8 ABSCO SPACE SAVER SHED MODEL: 30082SECOK 3.00mW x 0.78mD x 1.80mH, 1.95mH PRE-ASSEMBLY OF SPLICED CHANNELS Join together 12 x channel sections using 6 x channel joiners (Part CSJ) NOTE: Some channels may have holes in them - You will need to redrill holes where CSJ joining channel covers them.
  • Page 9 ABSCO SPACE SAVER SHED MODEL: 30082SECOK 3.00mW x 0.78mD x 1.80mH, 1.95mH ROOF COMPONENT OVERVIEW Absco Industries Assembly Instruction Manual Model: 30082SECOK 20/09/2023...
  • Page 10 ABSCO SPACE SAVER SHED MODEL: 30082SECOK 3.00mW x 0.78mD x 1.80mH, 1.95mH WALL COMPONENT OVERVIEW Absco Industries Assembly Instruction Manual Model: 30082SECOK 20/09/2023...

  • Page 11: Rear Panel Assembly

    ABSCO SPACE SAVER SHED MODEL: 30082SECOK 3.00mW x 0.78mD x 1.80mH, 1.95mH REAR PANEL ASSEMBLY 1x required Absco Industries Assembly Instruction Manual Model: 30082SECOK 20/09/2023...

  • Page 12: Side Panel Assembly

    ABSCO SPACE SAVER SHED MODEL: 30082SECOK 3.00mW x 0.78mD x 1.80mH, 1.95mH SIDE PANEL ASSEMBLY 2x required. Absco Industries Assembly Instruction Manual Model: 30082SECOK 20/09/2023...
  • Page 13 ABSCO SPACE SAVER SHED MODEL: 30082SECOK 3.00mW x 0.78mD x 1.80mH, 1.95mH ROOF PANEL ASSEMBLY Absco Industries Assembly Instruction Manual Model: 30082SECOK 20/09/2023...
  • Page 14 ABSCO SPACE SAVER SHED MODEL: 30082SECOK 3.00mW x 0.78mD x 1.80mH, 1.95mH DOUBLE DOOR ASSEMBLY Vertical door channels are installed in the opposite orientation compared to the horizontal door channels. Long Short fl ange fl ange of of channel channel Four hole set for padbolt connection.

  • Page 15: Front Panel Assembly

    ABSCO SPACE SAVER SHED MODEL: 30082SECOK 3.00mW x 0.78mD x 1.80mH, 1.95mH FRONT PANEL ASSEMBLY Absco Industries Assembly Instruction Manual Model: 30082SECOK 20/09/2023...
  • Page 16 ABSCO SPACE SAVER SHED MODEL: 30082SECOK 3.00mW x 0.78mD x 1.80mH, 1.95mH FRONT PANEL ASSEMBLY (continued) NOTE: Nuts and bolts (supplied) may be used instead of pop rivets (supplied) by simply enlarging the hinge hole sets in the jamb using a 4mm drill bit NOTE: The two holes required to connect the padbolt hasp for each door have not been pre-punched, to allow for proper alignment.
  • Page 17 ABSCO SPACE SAVER SHED MODEL: 30082SECOK 3.00mW x 0.78mD x 1.80mH, 1.95mH FRONT PANEL ASSEMBLY (continued) NOTE: Nuts and bolts (supplied) may be used instead of pop rivets (supplied) by simply enlarging the hinge hole sets in the jamb using a 4mm drill bit NOTE: The two holes required to connect the padbolt hasp for each door have not been pre-punched, to allow for proper alignment.
  • Page 18 ABSCO SPACE SAVER SHED MODEL: 30082SECOK 3.00mW x 0.78mD x 1.80mH, 1.95mH PANEL CONSTRUCTION NOTE: Take care to ensure that all wall panels are not upside down. The top channels of each panel are pre-punched for attaching roof sheeting. The base channels are not pre-punched.
  • Page 19 ABSCO SPACE SAVER SHED MODEL: 30082SECOK 3.00mW x 0.78mD x 1.80mH, 1.95mH FINAL CONSTRUCTION ANCHORING OF SHED LOCATION OF 8 CONCRETE ANCHORS Bolt and Nut* M10 4.6/S Wall Sheet Steel Angle* 35 x 35 x 3 Each anchor consists of one nut, bolt, M10 dynabolt and steel angle.
  • Page 20 ABSCO SPACE SAVER SHED MODEL: 30082SECOK 3.00mW x 0.78mD x 1.80mH, 1.95mH Absco Skillion Roof Shed Notes General • 1.G This instruction manual shall be read in conjunction with other consultants drawings, specifi cations and written instructions provided by Absco and/or their representatives.
  • Page 21 ABSCO SPACE SAVER SHED MODEL: 30082SECOK 3.00mW x 0.78mD x 1.80mH, 1.95mH Absco Skillion Roof Shed Notes Steelwork • 1.S All structural steelwork shall have a corrosion protection system applied consistent with AS/NZS 2312- 2002. • 2.S All structural steelwork detailed within this installation manual shall be minimum Grade 550 for roll formed sections (including roof and wall sheeting) and Grade 250 for angle sections.
  • Page 22 Absco Sheds Storage Guidelines • Absco Sheds are designed to be weatherproof for normal weather conditions. In the event of extreme weather conditions such as heavy rain, combined with high wind gusts, the ridge capping, sheeting joins, screw fi xings etc., may exhibit minor deformations which may allow some water entry. These areas should be checked regularly to ensure that maximum strength and protection is maintained.
  • Page 23 3.00mW x 0.78mD x 1.80mH, 1.95mH Australia Product Warranty Against Defects • Absco Sheds, including garden sheds, garden beds, aviaries, storage units, garages, awnings and carports are made using high quality Australian made steel. • We are pleased to advise we warrant that the steel coating will not rust, crack, fl ake peel or blister for 20 years from date of purchase, when installed within Australia.
