Motomaster Eliminator Product Manual

300 w mobile power outlet
Hide thumbs Also See for Eliminator:

Advertisement

Table of Contents

Enlarged version

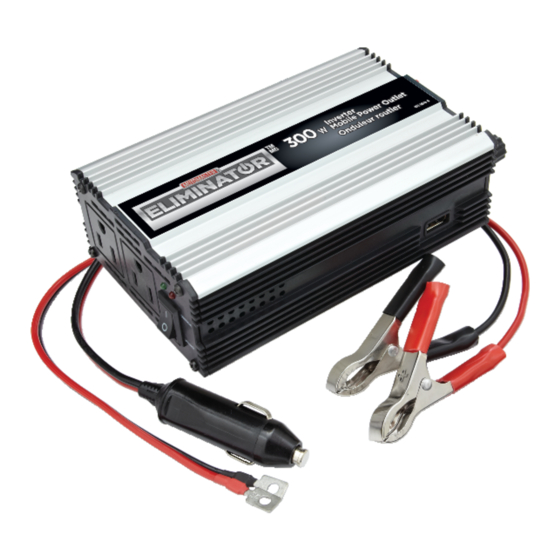

300 W Mobile Power Outlet
P
R
O
D
U
C
011-1870-6-Mobile-Power-Outlet_300W-EN-07.indd 1-2
011-1870-6
T
M
A
N
U
A
L
TECHNICAL SPECIFICATIONS ............................................................................................ 3
SAFETy INFORmATION ..................................................................................................... 4
KEy PARTS dIAgRAm ........................................................................................................ 7
INTENdEd USE .................................................................................................................. 9
Options for connecting devices to the power inverter ............................................... 9
OPERATION ..................................................................................................................... 10
determining the maximum load of connected devices ........................................... 10
Wattage of commonly used devices ........................................................................ 11
Before you start ...................................................................................................... 13
Connecting the connector cables to the power inverter .......................................... 14
Safety guidelines for handling batteries ................................................................. 17
Switching on/off ..................................................................................................... 19
Using the USB port ................................................................................................. 20
Automatic safety features ....................................................................................... 21
mAINTENANCE ............................................................................................................... 22
maintaining battery condition ................................................................................ 22
Fuse replacement .................................................................................................... 23
TROUBLESHOOTINg ....................................................................................................... 24
WARRANTy .................................................................................................................... 26
SAVE THESE INSTRUCTIONS!
This manual contains important safety and operating instructions. Read all instructions and follow
them with use of this product.
Questions? Call Customer Service Hotline: 1-877-466-8191
12/13/12 7:22 PM

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Eliminator and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Motomaster Eliminator

Summary of Contents for Motomaster Eliminator

  • Page 1: Table Of Contents

    Before you start ...................... 13 300 W Mobile Power Outlet Connecting the motomaster® Eliminator® mobile Power Outlet ......14 Connecting the connector cables to the power inverter .......... 14 Connecting the inverter to a lighter socket (loads under 100 W) ......16 Connecting the inverter to a 12 V vehicle battery (loads up to 300 W) ....
  • Page 2 This manual contains information that relates to PROTECTING PERSONAL Product Number 011-1870-6 SAFETY and PREVENTING EQUIPMENT PROBLEMS. It is very important to read AC POWER this manual carefully and understand it thoroughly before using the product. The symbols listed below are used to indicate this information. AC output voltage (nominal) 115 V, 60 Hz Maximum AC output power...
  • Page 3 WARNING! CAUTION! • HEATED SURFACE. The power inverter housing may become uncomfortably warm, and can • DO NOT USE the power inverter with the following equipment: reach up to 60 °C (140 °F) under extended high power operation. Small battery-operated devices such as rechargeable flashlights, some rechargeable shavers, and night lights that are plugged • do not use the inverter in a vehicle in which the plus pole of the car battery is connected to directly into an AC receptacle to recharge.
  • Page 4 RED INDICATOR (G) VENTILATION OPENINGS (A) GREEN INDICATOR (F) POSITIVE (+) DC CABLING TERMINAL (C) ON/OFF SWITCH (H) VENTILATION OPENINGS (A) VENTILATION OPENINGS (A) USB PORT (D) AC OUTLET (E) NEGATIVE (-) DC CABLING TERMINAL (B) DC CABLE WITH CIGARETTE DC CABLE WITH CLAMPS FOR DIRECT CONNECTION TO 12 V VEHICLE BATTERY (I) LIGHTER PLUG (J)

  • Page 5: Options For Connecting Devices To The Power Inverter

    Determining the maximum load of connected devices The MotoMaster® Eliminator® Mobile Power Outlet is an electronic device that converts the low voltage (direct current) from a battery, as can be found in cars, motor homes, boats or other WARNING! similar power sources, to the conventional 115 V (alternating current) like you have in your home.

  • Page 6: Wattage Of Commonly Used Devices

    Total wattage used PRODUCTS WATTS Portable music /MP3 player 1–5 W These devices usually CAN be connected to the MotoMaster® Eliminator® Mobile Power Outlet: Cell phone 10 W Digital camera 15 W Handheld gaming device...

  • Page 7: Before You Start

    Before you start Connecting the MotoMaster® Eliminator® Mobile Power Outlet • Unpack the power inverter. Inspect the unit for damage. If the unit has been damaged, contact CAUTION! the retailer immediately. Prior to connecting to the power source: The carton should contain: Make sure that the total wattage of the devices you are planning to connect to the power •...

  • Page 8: Connecting The Inverter To A Lighter Socket (Loads Under 100 W)

    Connecting the inverter to a lighter socket (loads under 100 W) • Connect the cable with the DC cabling terminals (B / C). • Follow the instructions in the previous section. Choose the D CAUTION! ( Connecting the connector cables to the power inverter). Make sure to connect the RED CABLE TO POSITIVE PORT (+) and the BLACK CABLE TO NEGATIVE PORT (-).

  • Page 9: Safety Guidelines For Handling Batteries

    Safety guidelines for handling batteries CAUTION! DANGER! Power connections from a 12 V battery to the power inverter must be POSITIVE (RED) TO POSITIVE AND NEGATIVE (BLACK) TO NEGATIVE. A reverse polarity connection (positive A spark may be visible when making the connection to a battery because a to negative) will blow a fuse in the inverter and may permanently damage the unit.

  • Page 10: Switching On/Off

    CAUTION! CAUTION! If you are going to disconnect the battery, switch the inverter off first (  Switching on/off). Switch the inverter off and disconnect it from the power source when it is not in use. IMPORTANT! CAUTION! Always disconnect the power cables from the vehicle battery when you are not using the device. When the inverter is switched off, it draws no current from the battery.

  • Page 11: Automatic Safety Features

    Automatic safety features WARNING! The MotoMaster® Eliminator® Mobile Power Outlet includes the following automatic safety features to ensure safe and trouble-free operation: • Vehicle battery low-voltage automatic alarm and shutdown: activated when the battery voltage the power source. drops to 10–11 V, to protect the battery from being damaged.

  • Page 12: Fuse Replacement

    Fuse replacement The inverter is equipped with protective shutdown features and an acoustic signal. The details are listed in the following table: WARNING! ERROR ALARM POSSIBLE CAUSE SOLUTION SIGNAL For continued protection against risk of fire or electric shock, replace only with a fuse of the same As the battery discharges, its Shut down sensitive loads such as Audible...
  • Page 13 This motomaster® Eliminator® product carries a one (1) year warranty against defects in PROBLEM POSSIBLE CAUSE SOLUTION workmanship and materials. At its discretion, motomaster Canada agrees to have any defective Check the battery and replace it if The battery is defective.
