Pyronix PCX-LCD/UK Manual page 3

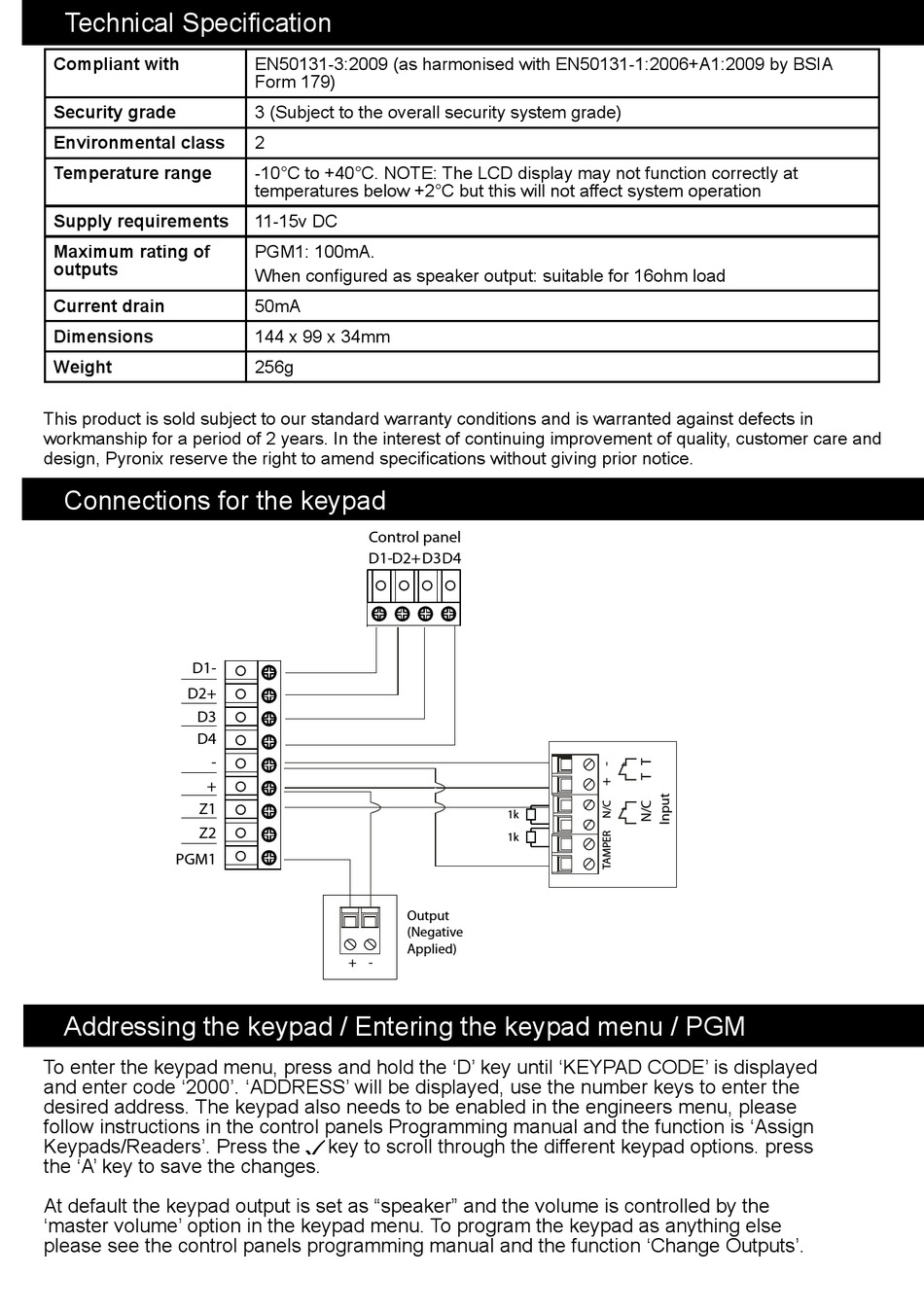

Technical Specification
Compliant with
Security grade
Environmental class
Temperature range
Supply requirements
Maximum rating of
outputs
Current drain
Dimensions
Keypad
Weight
This product is sold subject to our standard warranty conditions and is warranted against defects in
workmanship for a period of 2 years. In the interest of continuing improvement of quality, customer care and
design, Pyronix reserve the right to amend specifications without giving prior notice.
Connections for the keypad
D1- PCX KEYPAD
D2+
SILICONE RUBBER KEYPAD GRAPHICS
D3
D4
UK/EXPORT ARTWORK
-
+
Z1
Z2
PGM1
,
1
/
+
.
Addressing the keypad / Entering the keypad menu / PGM
G
4
H
I
To enter the keypad menu, press and hold the 'D' key until 'KEYPAD CODE' is displayed
P
and enter code '2000'. 'ADDRESS' will be displayed, use the number keys to enter the
7
Q
R
S
desired address. The keypad also needs to be enabled in the engineers menu, please
follow instructions in the control panels Programming manual and the function is 'Assign

Keypads/Readers'. Press the
the 'A' key to save the changes.
At default the keypad output is set as "speaker" and the volume is controlled by the
'master volume' option in the keypad menu. To program the keypad as anything else
please see the control panels programming manual and the function 'Change Outputs'.
EN50131-3:2009 (as harmonised with EN50131-1:2006+A1:2009 by BSIA
Form 179)
3 (Subject to the overall security system grade)
2
-10°C to +40°C. NOTE: The LCD display may not function correctly at
temperatures below +2°C but this will not affect system operation
11-15v DC
PGM1: 100mA.
When configured as speaker output: suitable for 16ohm load
50mA
D1-
144 x 99 x 34mm
D2+
256g
D3
D4
To the PCX
Control panel
D1-D2+D3D4
+ -
2
A 3 D
B E
C F
J
5 6 M
K
N
L
O
W
T
8 9
X
U
Y
V
Z
0
key to scroll through the different keypad options. press

SPACE
Actual Size (mm)
To the PCX
Control panel
D1- D2+ D3 D4
470ohm resistor connected
to the control panel and
to the device which is
furthest away
1k
1k
94.40
Output
(Negative
Applied)
A
B
C
D
,
1 2
A
/
B
+
C
.
G J
4 5
H K
I L
P
T
7 8
Q
U
R
V
S
0

SPACE
