Voltronic Power Axpert VM III-5000 Service Manual page 10

维修手册
专案名称： Axpert VM III-5000/VM III-3000
专案编号： S1711171

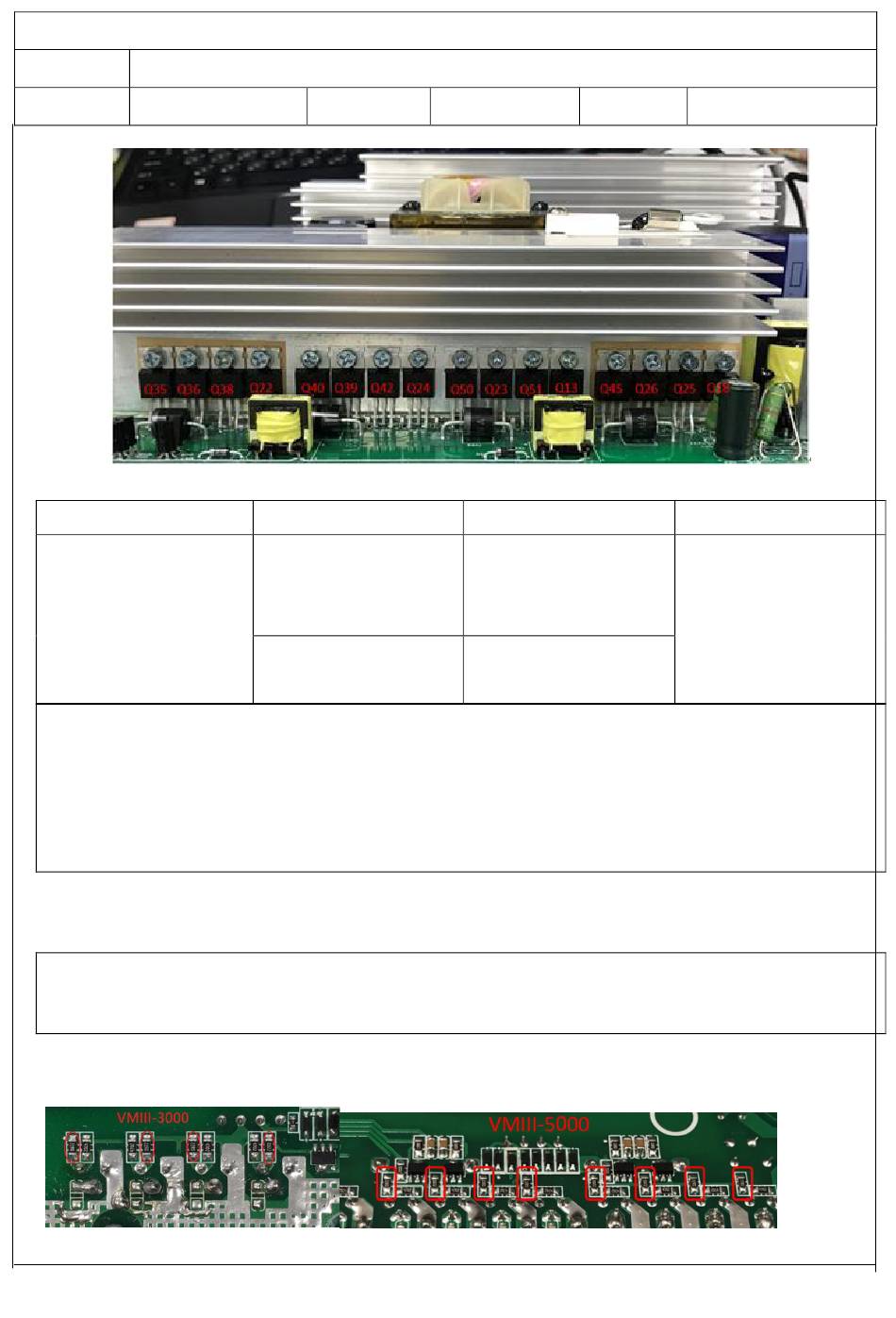

For VMIII-5000 ALL of the MOSFET are (
Parts
CSD19505KCS (VMIII-3200)
TK100E08N1 (VMIII-5200)
Note1: When you use the multimeter to measure the resistor of the transistor, because of
the capacitor in the circuit, it will cause the changing of the values when you measure the
DS and GD. So we recommend you measure the diode forward voltage of SD, and the
resistor of GS. These two values can reflect the situation of the transistor more correctly.
Note2: If one or more of them were damaged, please replace all of them.
3.1.1. Drivers (This part is only used for repair checking)
Note: Drivers usually need to be checked when users want to repair the boards. Because
when power devices were damaged, the high voltage will rush to driver circuit through the
gates of power devices.
The reference of the resistors list as below:
R52/R62/R81/R87/R92/R93/R115/R119 All of the resistors are (22R 1206)
V-RDP-004-73 A
修订版次：
MOSFET TOSHIBA/TK100E08N1 214A 80V N BULK TO-220
Attribute
Resistor
Diode
00
PAGE
Reference values
GS: 11.75k
GD: 115.8k
DS: OL
SD: 0.463V
DS: OL
)
Failure status
Short or explosion
