Voltronic Power 1KVA Quick Manual

Hide thumbs Also See for 1KVA:

Download this manual

Quick Guide

Inverter

1KVA/2KVA

1. Introduction

Thank you for purchasing the inverter. This simple solar inverter is designed to power your

home appliances or precious 3C electronics. It also can handle motor-type loads with high

surge power such as vacuums, small freezers, or drills. If the inverter is equipped with solar

charger, it becomes solar inverter which can convert solar power to battery power and provide

continuous power to connected equipment during night time.

2. Product Overview

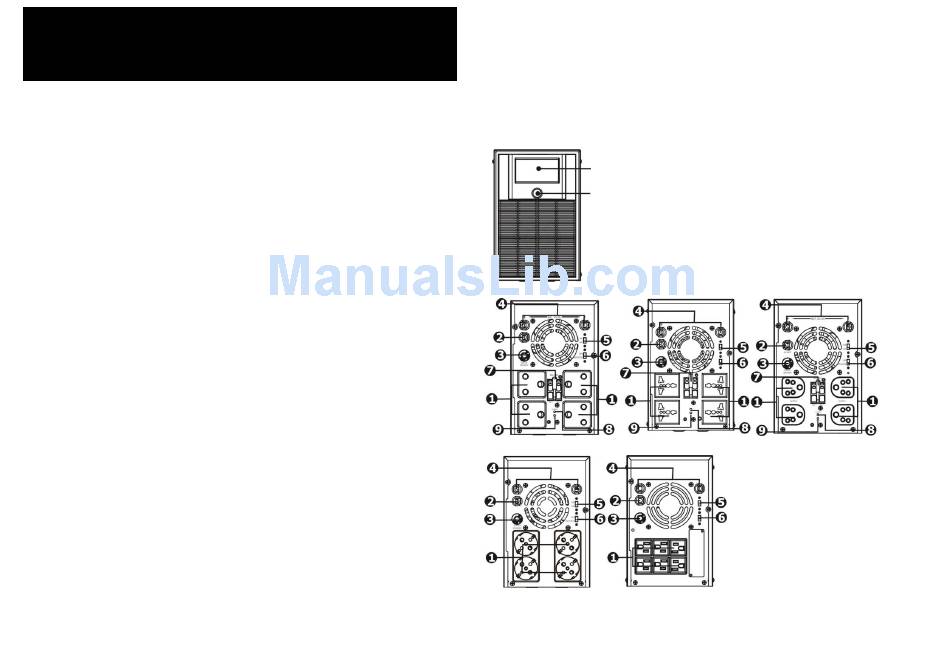

Front View

LCD display (Please see the Operation section for

the details of LCD display.

Power switch

Back View

V. 1.6

Output receptacles (4xschuko,

4xuniversal, 6xNEMA, 4xIndia or 4x

South Africa)

AC input

Circuit breaker

External battery connectors

Charge current selector: 10 A or 20

Operation mode selector: UPS or

Inverter

Solar panel terminal (option)

Solar charging indicator (option)

Charger fault indicator (option)
