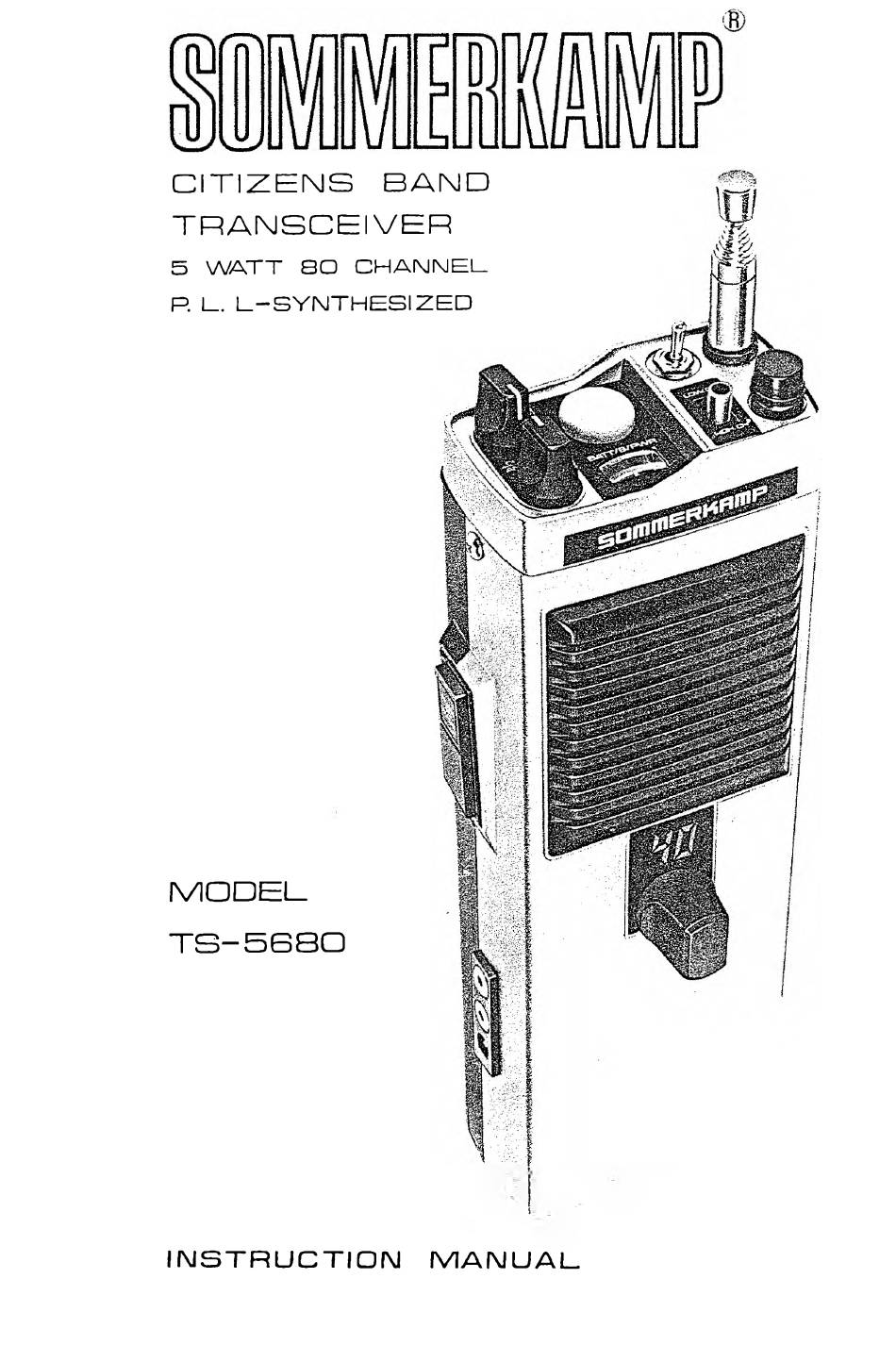

- Page 1 CITIZENS BAND TRANSCEIVER 5 WATT SO CHANNEL R L. L-SYNTHESIZEO MODEL TS-5BSO INSTRUCTION MANUAL...
-
Page 2: Control Locations
CONTROL LOCATIONS: LO-HI CHANNEL SWITCH BATTERY COMPARTMENT PACKING L IS T : Beside this manuał, the carton shall contain the following item s: 1 Transceiver T S -5680 1 Carrying case w ith Shoulder strap 1 Earphone case w ith earphone 2 pcs dummy batteries inside the batterie case 1 shortening plug in the accessory jack —... -
Page 3: General Description
GENERAL DESCRIPTION Your SOMMERKAMP TS-5680 transceiver has been désignée! for continous heavy duty portable application. It can be operated with external antenna, power supply, headset, telephoneset incorporating automatic voice operated transm it/receive switching, short type rubber antenna, external sélective calling w ith automatic answerback and many more. -
Page 4: Channel Display
TRANSMITTER &. MODULATOR SECTION: The transm itter section is designed for continous heavy duty transmission of amplitude modulated (AM/A3) signais in the 26.965 to 27.855 MHz. (11 meter) citizens band. The transm itter consists of a Phase Locked Loop circuit one-crystal controlled oscillator, of which output is synthesized in a dass B mixer, followed by a double tuned filte r, dass ABI buffers, and a highly efficient collector-... -
Page 5: Power Supply
POWER SUPPLY: This transceiver is designed to operate w ith a nominal 12V DC power supply such as the internal dry cells or nickel-cadmium rechargeable batteries or an external power supply delivering at least 1.5 amperes. The equipment w ill operate from 10-16V DC without any damage. -
Page 6: Operation
Rotate the channel selector step by step CHI to CH40 both for LO & HI CH. and check that some noise and/or signal is heard on each channel. Push the push-to-talk (PTT) switch and observe the meter needle. Itsh a ll move into the red field. -
Page 7: Microphone Jack
ACCESSORI ES To install N500AA rechargeable nickel-cadmium batteries, follow the instructions under the Chapter UNPACKING AND CHECKOUT of this manuał. Charge the N500AA nickel-cadmium batteries by plugging the 1236 charger into the charger jack. Charge for 14 hours. It is not possible to operate the transceiver during charging. - Page 8 6. Internal connection 2. Headset or Telephoneset with PTT. 6 0 0 -lOK ohm Microphone plug 3. External microphone 7. Parrot 76 4. Headset or Teiephoneset with VOX LIS T OF CHANNEL FREQUENCY LOW. CH. (MHz) HIGH. CH. (MHz) LOW. CH. (MHz) HIGH.
- Page 9 BLOCK DIAGRAM...
- Page 10 CIRCUIT DIAGRAM A 36 68к...
- Page 11 PRINTED CIRCUIT BOARD PARTS LAYOUT 7X23 is c ( 6 4 6 f8 > ТИП 2SC1741/Ü) & X U O J O O K TPS 2 S C 9 4 S ( a ) F f ć “ T £ , i c u i .
- Page 12 WIRING LAYOUT UPPER VIEW...
- Page 13 WIRING LAYOUT BOTTOM VIEW...
- Page 14 PARTS LIST for T S -5 6 8 0 PARTS NO. PARTS NAME DESIGNATION Integrated Circuit JM386 TDA1037 Integrated Circuit SM5104 Integrated Circuit Ceramic Filter SFE-10.7MS-2 CFI, 3 CFU-455-1 Ceramic Filter 2SK19-GR TRIO 2SK30-A T R14 3SK40-M 2SC496-0 Transistor TR21 Transistor 2SA934-Q TR16...
- Page 15 PARTS LIST for T S -5 6 8 0 DESIGNATION PARTS NAME PARTS NO. Output Transformer T - 5632 T10, 11, 12 TX Mixer & Buffer Tuning Coil 5KCW-0345 L5, 7 TX Final Choke, v Matching Coil 005-901 EXT. SP. Choke Coil 005-903 RX RF Tuning Coil 011-901...
- Page 16 PARTS LIST for T S -5 6 8 0 PARTS N0. DESIGNATION PARTS NAME 522066 MP-507 Cabinet Front 523064 MP-508 Cabinet Top 492021 MP-5603 Cabinet Back 493039 Cabinet Cover for Batt. MP-5604 493038 MP-5605 Speaker Grill 494198 Cabinet Bottom Plate MP-5609 494200 MP-5608...
-
Page 17: Specifications
SPEC IFIC ATIO N S G E N E R A L : 2 3 0 • ' h ’ '• 7 8 ' W ' ч 4 3 . 5 ' d ' D i m e n s i o n s 8 5 0 g r a m s w i t h o u t...
