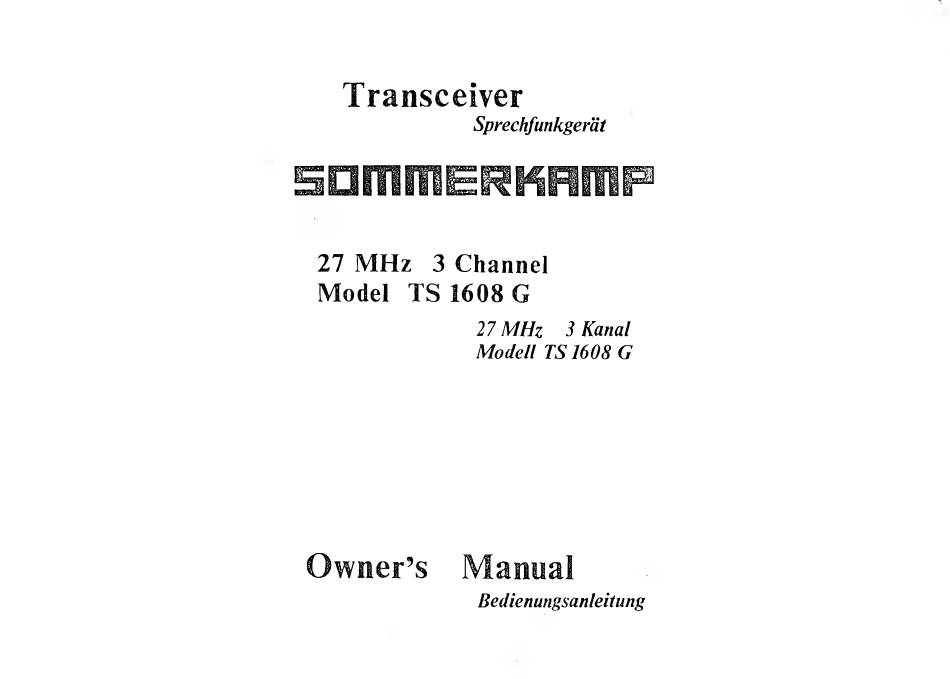

- Page 1 Transceiver Sprechfunkgerät 5om m ER K H m p 27 MHz 3 Channel Model TS 1608 G 27 M H z 3 Kanal M odell TS 1608 G Owner’s Manual Bedienungsanleitung...
- Page 2 CONTROL LOCATION: (8) (13) (12) Telescopic antenna. Microphone/speaker. Push-to-talk button. Earphone jack. External mic. jack. External power jack. Battery compartment cover. ON/OFF volume control. Squelch control. Battery meter. Call alert button. External antenna jack. Channel selector. Lage der Kontrollknöpfe: □ Teleskopantenne 2.
- Page 3 BATTERY INSTALLATION: Pressing your thumbs on the dent of the battery compartment cover, pull it out toward the bottom. Insert 8 penlight dry cells into the battery holder in the direction as shown inside the holder. Leave 2 dummy cells (connectors) in the holder as they are.
- Page 4 OPERATING INSTRUCTIONS: Be triebsanlei tung: Extend the antenna (1) to its fü ll length, Antenne in voller Länge ausziehen und and hold it in the vertical position during während des Gebrauchs in vertikaler Posi operation. (If the antenna is not extended tion halten (Wenn die Antenne nicht ganz to its füll length, the transistors may be ausgezogen ist, können die Transistoren...
- Page 5 EXTERNAL CONNECTIONS: Earphone jack (4) accepts a magnetic earphone of 50-ohm impédance. Externa! microphone jack (5) accepts a Positive (+) dynamie microphone of 600 to 10K ohms impédance. (10K-ohm impédance micro positiv (+) phone is recommended). External power jack (6) provides oper ation w ith stable external power source of 12VDC (of at least 0.5A).
- Page 6 CRYSTAL INSTALLATION: This transceiver can be operated on'any three channels of 27MHz band. The crystals for channel 'A ' position hâve been factory- installed. When you wish to operate on either or both of the alternate channels, or to change Quarzinstallation: the pre-installed crystals, install the crystals in the following manner.
- Page 7 SPECIFICATIONS: RECHARGEABLE BATTERIES: Transmit circuit: 3-stage crystal-controlled If rechargeable (nickel-cadmium) batteries are to be used, remove 2 dummy cells and insert 10 Receive circuit: Superheterodyne w ith FET penlight Ni.-Cad. batteries into the battery holder. When the batteries are discharged and RF amplifier, squelch contrat, noise the battery meter pointer falls o ff the green lim iter and IC audio circuits...
- Page 8 SCHEMATIC DIAGRAM Schaltbild Ol 2SKI9GR 0 2 2 S C 8 3 9 F Q4 2 S C 8 3 9 F Q5 2SC 839H оЗвЗвЗвСА...
