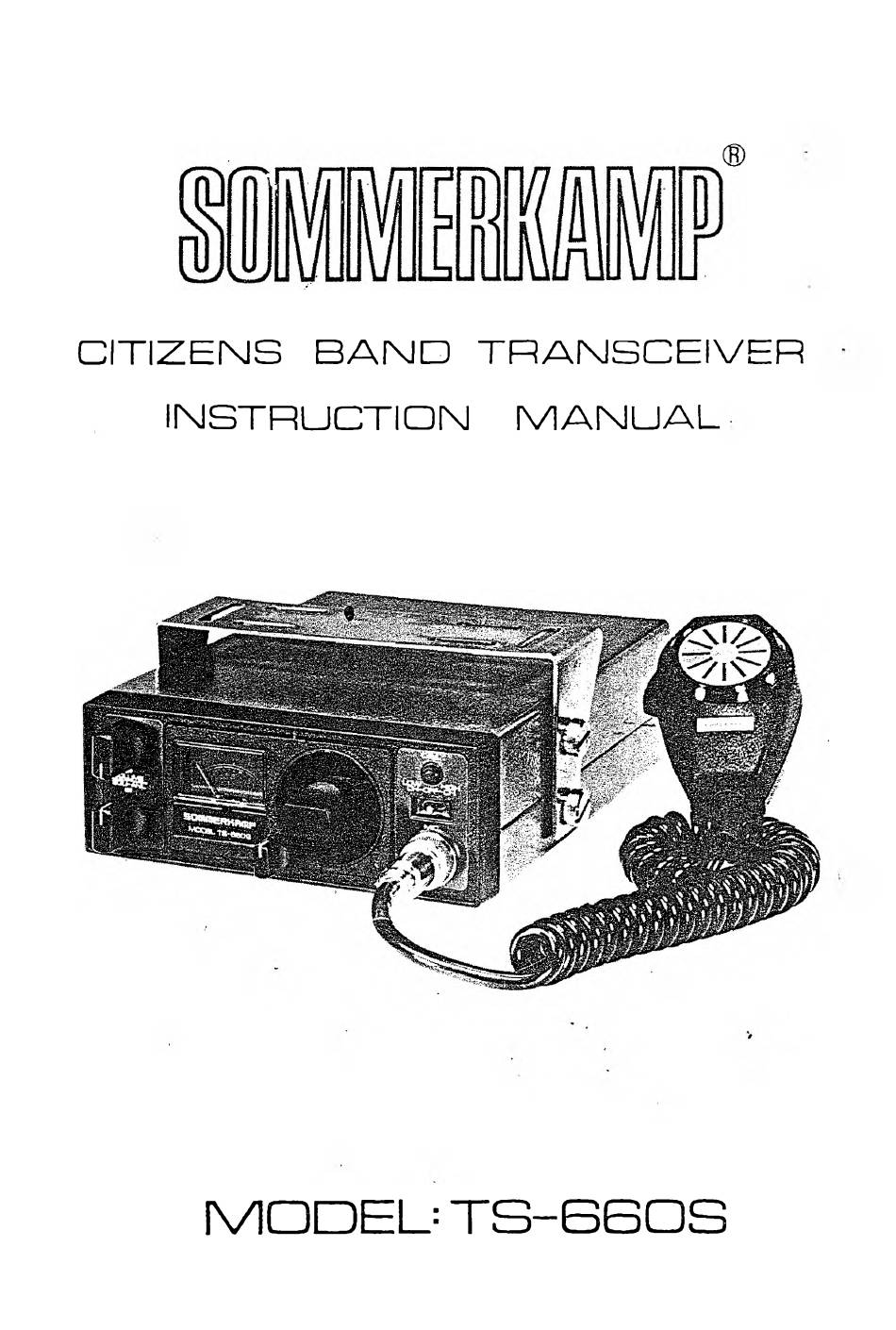

- Page 1 CITIZENS BAND TRANSCEIVER INSTRUCTION MANUAL MODED TS-S60S...
- Page 2 T S - 6 6 0 S S P E C IF IC A T IO N S fo r 22 transistors, 9 diode, 2 S. C. R. Semiconductors : Synthesied crystal controlledSfr Transmitter System: ColIector modulation AM. 60 channels on 27 MHz. Frequency: watts.
- Page 3 IN S T A L L A T IO N Mounting bracket and screws are supplied for mounting the transceiver under- neath the dashboard. Microphone hanger and screws are also supplied. For electrical connection, firs t make sure that the transceiver is turned off. Connect the red wire to the ACC terminal ignition switch...
- Page 4 DASHBOARD О INSULATED WASHER c) The mounting bracket MTG. BRACKET must be isolated from the chassis of the vehicle INSULATED WASHER in such a manner as WASHER shown in Fig. 3. ■ SCREW FIG. 3 A N T E N N A Antenna is one of the most important factors for the operation with maximum efficiency.
- Page 5 -D C POWER CORD -ANTENNA JACK — P. T. T. BUTTON MICROPHONE MOUNTiNG BRACKET VOLUME CONTROL SQUELCH CONTROL & ANL SW. CALL BUTTON DELTA TUNE CHANNEL SELECTOR POWER & H i-Lo CH. SW. MICROPHONE JACK -CIRCUIT PROTECTION LAMP 1) Turn the set on by Switching the LOW-OFF-HI snap switch to the desired channel range and the channel dial w ili be lighted.
- Page 6 T O N E -L IG H T C A L L IN G D E V IC E The Model TS-660S is equipped with a sélective tone-light calling device which works oft 1,750 Hz signal. To call the other station, push the push-to- talk button and the call button simultaneously, when the calling signal transmitted.
- Page 7 S C H E M A T IC D IA G R A M...
- Page 8 C O M P L E T E P A R T S L A Y O U T о < POWER & Lo-HiSW. SWZ-A~b MIC. JACK ÜJ — I—t — Ш < < Ш со ÜJ...
- Page 9 PRINTED CIRCUIT BOARD PARTS LAYOUT...
- Page 10 PARTS L IS T for T S - 6 6 0 S DESIGNATION PARTS NAME PARTS N0. 483014-660 Front Frame MR -301 482009-660 Chassis Frame MP-302 484100 Back Pannel MP-203 Cabinet Cover (Upper) 483016 MP-105 483015 Cabinet Cover (Lower) MP-106 Mounhing Bracket 484085 MP -107...
- Page 11 PARTS LIS T for T S - 6 6 0 S DESIGNATION PARTS NAME PARTS N0. TS8,9,10,11,12 Transistor 2SC945 T R13 Transistor 2SC900 T R14, 20 Transistor 2SC496 TR21 T ransistor 2SC1237 TR22 Transistor 2SC1307 T R15, 16 .Transistor 2SD235 D l, 2,3,13,15 Germanium Diode 1N60...
