Summary of Contents for Sommerkamp TS- 5632

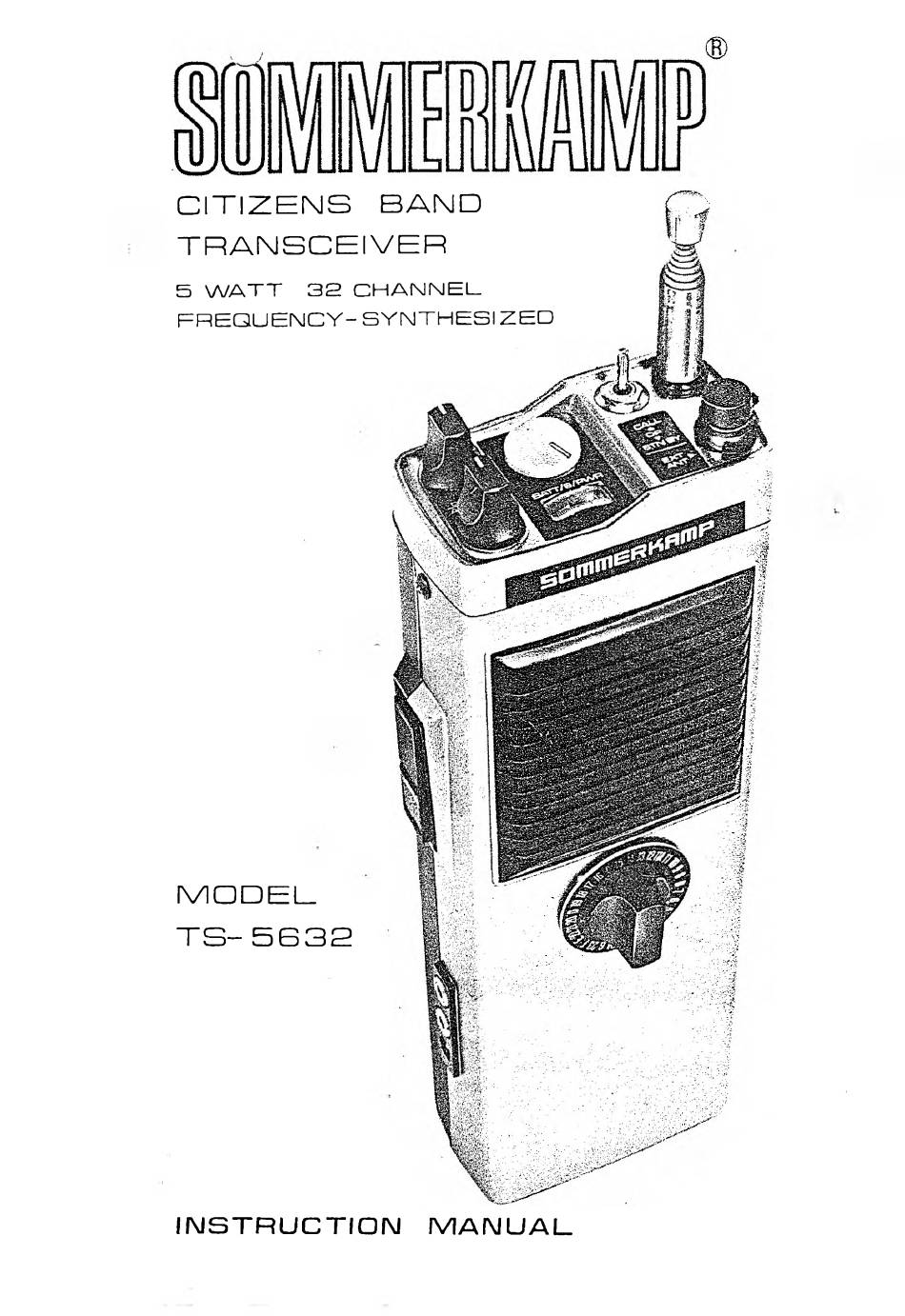

- Page 1 CITIZENS BAND TRANSCEIVER 5 WATT 32 CHANNEL FREQUENCY-SYNTHESIZED MODEL TS- 5 6 3 2 INSTRUCTION MANUAL...
-
Page 2: Control Locations
CONTROL LOCATIONS: CALL OPERATE STAND BY SWITCH or RUBBER ANTENNA EXTERNAL & ANTENNA JÄCK S-METER POWER/BATTERY MICROPHONE/SPEAKER CHANNEL SELECTOR BATTERY COMPARTIMENT PACKING LIST: Beside this manuał, the carton shall contain the following item s: 1 Transceiver TS-5632 1 Carrying case w ith shoulder strap 1 Earphone case w ith earphone 2 pcs dummy batteries inside the batterie case 1 shortening plug in the accessory jack... -
Page 3: General Description
GENERAL DESCRIPTION Your SOMMERKAMP TS-5632 transceiver has been désignée! for continous heavy duty portable application. It can be operated with external antenna, power supply, headset, telephoneset incorporating automatic voice operated transm it/receive switching, short type rubber antenna, external sélective calling w ith automatic answerback and many more. -
Page 4: Power Supply
TRANSMITTER &, MODULATOR SECTION: The transm itter section is designed for continous heavy duty transmission of amplitude modulated (AM/A3) signais in the 26.965 to 27.275 MHz. (11 meter) citizens band. The transm itter consists of 2 crystal controlled oscillators incorporating 12 crystals. - Page 5 UNPACKiNG AND CHECKOUT Unpack the carton carefully and check for exterior damages. Check that the volume control is in the OFF position, the squelch contro! in the ANL-OFF position and the standby-operate-call switch in OPERATE position. Press the dent of the battery compartment lid and pull it out toward the bottom. L ift out the battery holder and insert 8 dry cells into the holder as indicated, ©...
-
Page 6: Operation
Switch the standby-operate-call switch to STANDBY. The noise from speaker shall cease and the meter needle shall move black field. Within 10-15 seconds, the noise from the speaker shall be heard again and the meter needle moves to the red field. Wait for this cycle to repeat its e lf several times, then switch to OPERATE. -
Page 7: Accessory Jack
ACCESSORI ES To install N500AA rechargeable■ nickel-cadmium batteries,follow the instructions under the Chapter UNPACKING AND CHECKOUT of this manuał. Charge the N500AA nickel-cadmium batteries by plugging the 1236 charger into the charger jack. Charge for 14 hours. It is not possible to operate the transceiver during charging. - Page 8 4 . Headset or Telephoneset w ith VOX 3 . E xterna l microphone °5 2 4t>“| io L- iç = Ф — -o7 _ 6o Microphone 600 - 10k ohm 5. E x te rn a l m ic ro p h o n e /s p e a k e r w ith P T T . 6 .
- Page 9 BLOCK DIAGRAM Ä G C...
- Page 10 T r 6 2 S C 9 4 5 Ç R 3 6 3 1 К...
- Page 11 PRINTED CIRCUIT BOARD PARTS LAYOUT 10 -...
- Page 12 WIRING LAŸOUT UPPER VIEW...
- Page 13 WIRING LAYOUT BOTTOM VIEW влттш...
- Page 14 PARTS LIST for TS -5632 PARTS NO. DESIGNATION PARTS NAME 492023 Cabinet Front MP-5601 493037 MP-5602 Cabinet Top 492021 Cabinet Back MP-5603 493039 Cabinet Cover for ВАТТ. MP-5604 493038 Speaker Grill MP-5605. 494205 MP-5606 Bushing for Rod Antenna 494199 Knob for VOL/SQU Control MP-5607 494200 P.
- Page 15 P A R T S L IS T f o r T S - 5 6 3 2 DESIGNATION PARTS NAME PARTS NO. NE-555V IC-2 BA-501 IC-1 Slicon Diode 1 S -1555 02,3,4,6,7,8,10,13,15 IN-4002 D 9,12 Slicon Diode Slicon Diode M8513A Zener Diode WZ-110...
- Page 16 S P E C IF IC A T IO N S G E N E R A L : 230 (h) X 78 (w) X 43.5 (d) mm Dimensions 800 grams w ithout batteries Weight 8 penlight dry cells (12 volts) or 10 penlight Powersupply rechargeable nickel-cadm ium ba tte ries (12.5 volts) or 12 v o lt external DC supply.
- Page 17 SDMMERKAMP ELECTRONIC SAS СН-ВЭОЗ LUGANO, RO. BOX 106 SWITZERLAND TEL. Э1 B8B543 TELEX:73314...
