NTI SM-8X8-C6HDR-HDBT Manual

Hdmi matrix control interface
Hide thumbs
1
2
3
4
5
6

Advertisement

Quick Links

Download this manual
HDMI Matrix 8X8 Control Interface Operation Steps
(RS232 codes of remote control's key-press)

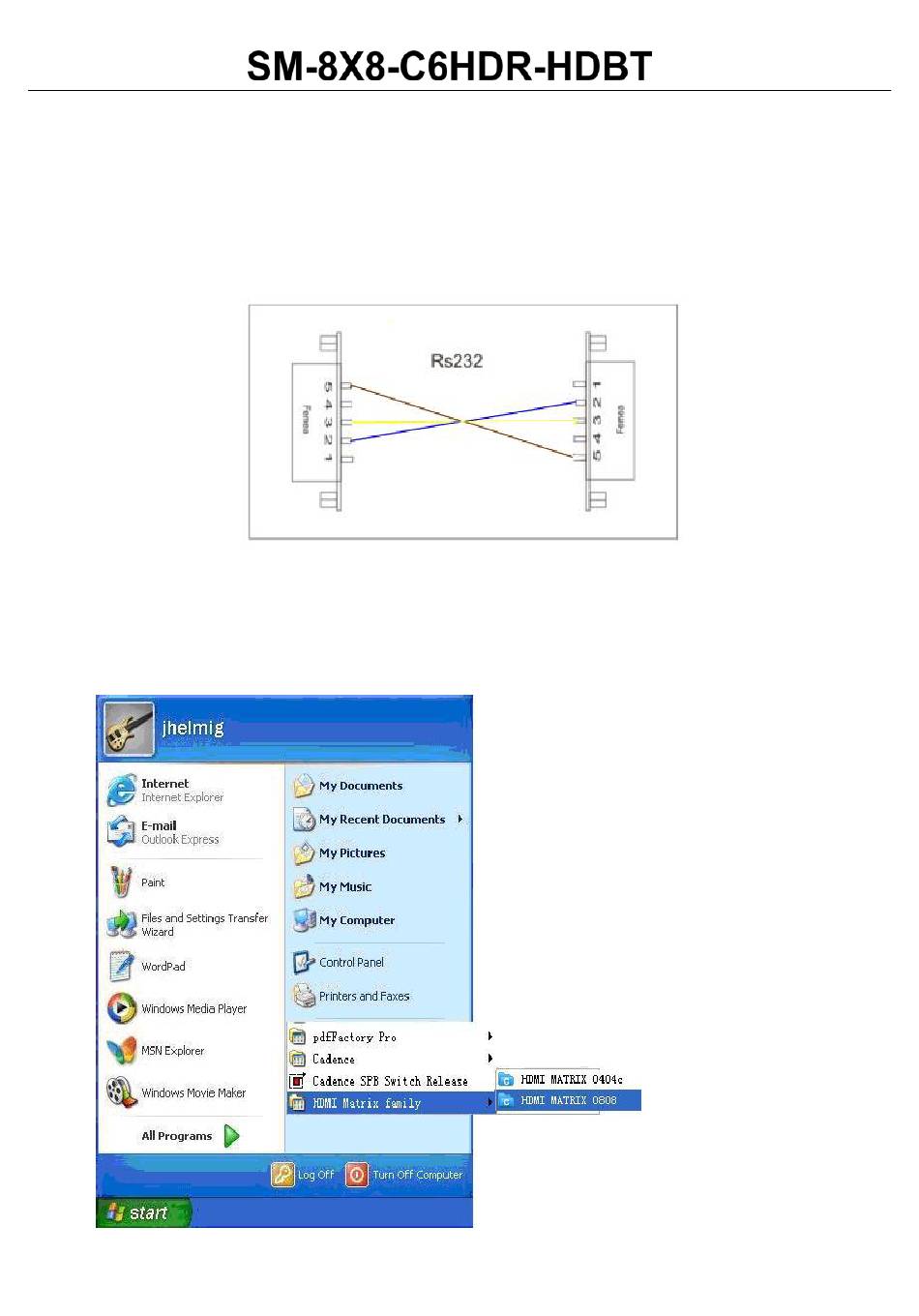

Step 1: You must have a RS232 cable like picture below. Then Connect
RS232 cable between your PC Serial port (default =COM 1) and the
HDMI Matrix 8X8's RS232 control port.
Step 2:
Install the RS232 interface program with your CD ROM which includes HDMI FamilySetupB.exe . After the " HDMI
FamilySetupB.exe" setup is successfull, the "All Programs" menu bar of "Start" menu will have an "HDMI Matrix family" menu
bar. Then you can select the HDMI MATRIX 0808 link to open the Matrix 8X8 control interface. See picture below.

Advertisement

loading
Need help?

Need help?

Do you have a question about the SM-8X8-C6HDR-HDBT and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for NTI SM-8X8-C6HDR-HDBT

Summary of Contents for NTI SM-8X8-C6HDR-HDBT

  • Page 1 HDMI Matrix 8X8 Control Interface Operation Steps (RS232 codes of remote control’s key-press) Step 1: You must have a RS232 cable like picture below. Then Connect RS232 cable between your PC Serial port (default =COM 1) and the HDMI Matrix 8X8’s RS232 control port. Step 2: Install the RS232 interface program with your CD ROM which includes HDMI FamilySetupB.exe .
  • Page 2 Step 3; You can directly press the simulation remote control’s key to switch the HDMI input source, provided all the input sources and output displays are connected. Below is the image shown on your computer:...
  • Page 3 How to set the HDMI input source to HDMI output sink.? Please follow the instruction below. For example, if you wish to connect the HDMI source Input6 to output 2, you must Press the output 2 button first ,then Press the input 6 button.
  • Page 4 The RS232 control interface supports the shortcut key function.. When you press ' file’(Menu bar-below), the system will automatically popup a shortcut key window. You can modify the shortcut key value as desired using the computer Keyboard. After modifying the value, press “ok” to confirm, then exit the shortcut key window.
  • Page 5 Notice: If you need to create the control interface yourself , the information below may be helpful. Codes and Marks shown below : The connection between PC and MCU uses RS232 communication; COM setting shows below: VB language: MSComm1.CommPort = 1 MSComm1.Settings = "600,n,8,1"...
  • Page 6 OUTPUT KEYS ： Output1“1” ： Sending data（Hexadecimal）：0xBA 0xBA 0xBF 0xC6 0x38 0x37 Output2“2” ： Sending data（Hexadecimal）：0xBA 0xBA 0xBF 0xC6 0x38 0x39 Output3“3” ： Sending data（Hexadecimal）：0xBA 0xBA 0xBF 0xC6 0x38 0x31 0x31 Output4“4” ： Sending data（Hexadecimal）：0xBA 0xBA 0xBF 0xC6 0x38 0x31 0x33 Output1“5”...
