Dataprobe iBootBar Installation And Operations page 20

iBootBar
Physical:
Height: 1U 1.75 in (4.5 cm)
Width: 19.0 in (48.25 cm)
Depth: 6.00 in (15.25 cm)
Weight: 7 lbs (3.25 Kg)
Environmental:
Temperature
Operating: 0 to 40
Storage: -10 to 85
Relative Humidity 0 to 95%
Non-Condensing
Input Required Model
iBB-N15
iBB-N15-M
iBB-2N15
iBB-2N15-M
iBB-N20
iBB-N20-M
iBB-2N20
iBB-2N20-M
iBB-C10
iBB-C10-M
iBB-2C10
iBB-2C10-M
iBB-C20
iBB-C20-M
iBB-2C20
iBB-2C20-M
Key:
Input: N15 NEMA 5-15 Linecord 115VAC 15 Amps combined total switched
N20 NEMA 5-20 Linecord 115VAC 20 Amps combined total switched
C14 IEC320 C14 Receptacle 100-240VAC 10 Amps total at 240VAC Max
C20 IEC320 C20 Receptacle 100-240VAC 20 Amps total at 240VAC Max
Outlet: N15 NEMA 5-15 Receptacle 115VAC 12 Amps Max
C13 IEC 320 C13 Receptacle 100-240VAC 10 Amps Max
Control I 10/100 Ethernet. Web, Telnet, SNMP.
Port Assignable for Web and Telnet. SSL on Web control.
S Serial Port. 115,200 bps. Command Line Interface
M Internal Modem. V.92 and below. Approved in 50 Countries
Supports data and DTMF tone control (with voice response)
ibootbar_v1.2x
o
C
o
C
Input
N15
N15
2 x N15
2 x N15
N20
N20
2 x N20
2 x N20
C14
C14
2 x C14
2 x C14
C20
C20
2 x C20
2 x C20

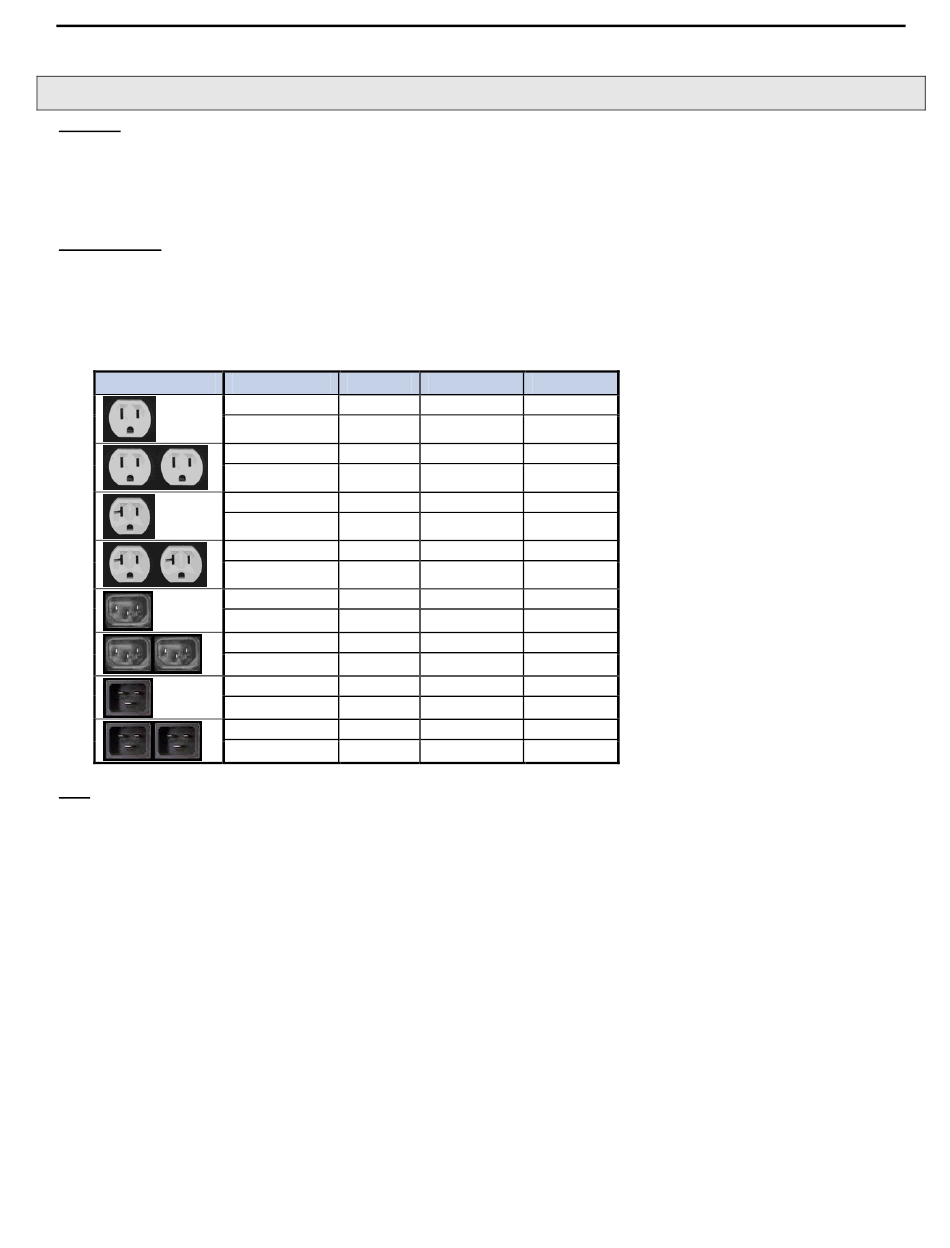

Specifications
Output Control
8 x N15 I, S,
8 x N15 I, S, M
8 x N15 I, S, L
8 x N15 I, S, M
8 x N15 I, S
8 x N15 I, S, M
8 x N15 I, S
8 x N15 I, S, M
8 x C13 I, S
8 x C13 I, S, M
8 x C13 I, S
8 x C13 I, S, M
8 x C13 I, S
8 x C13 I, S, M
8 x C13 I, S
8 x C13 I, S, M
Page 20
