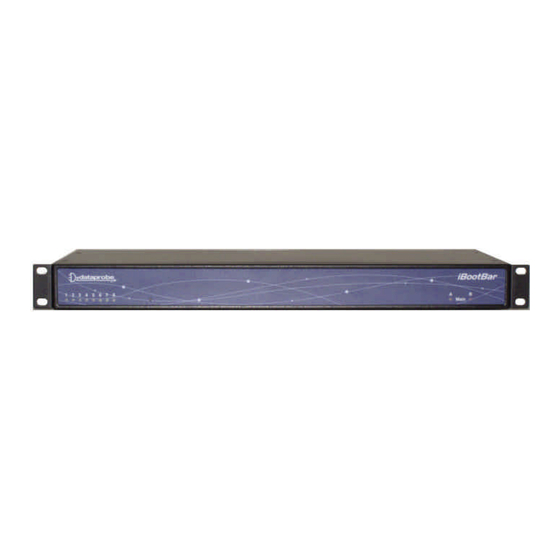

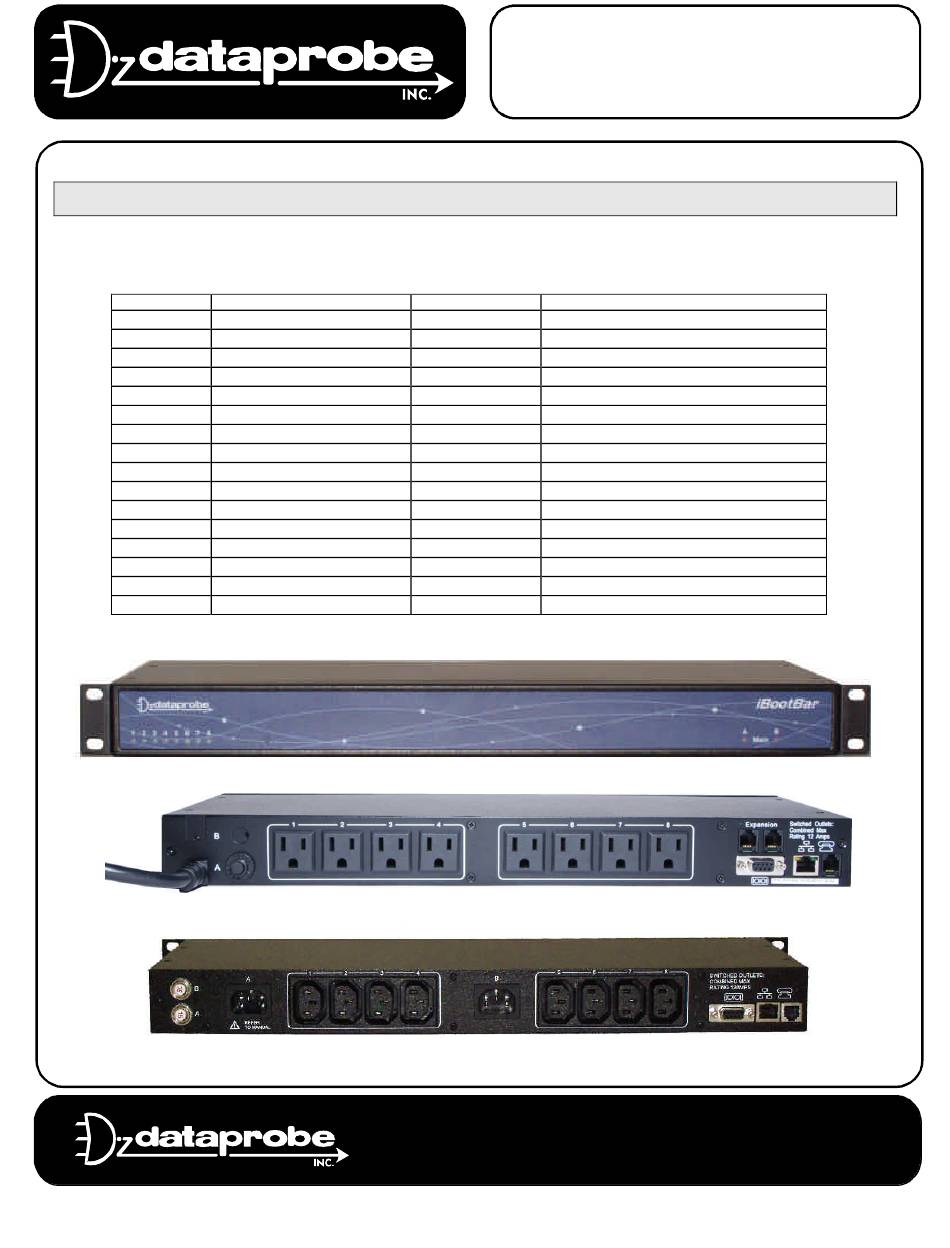

This document covers the installation and operations of Dataprobe's iBootBar series of remote power control units.
The following models are covered in this document:
Model
Power Feed / Total Capacity
NEMA 15 Amp
iBB-N15
NEMA 15 Amp
iBB-N15-M
2 x NEMA 30 Amp
iBB-2N15
2 x NEMA 30 Amp
iBB-2N15-M
NEMA 20 Amp
iBB-N20
NEMA 20 Amp
iBB-N20-M
2 x NEMA 40 Amp
iBB-2N20
2 x NEMA 40 Amp
iBB-2N20-M
IEC C14 10 Amp
iBB-C10
IEC C14 10 Amp
iBB-C10-M
2 x IEC C14 20 Amp
iBB-2C10
2 x IEC C14 20 Amp
iBB-2C10-M
IEC C20 20 Amp
iBB-C20
IEC C20 20 Amp
iBB-C20-M
2 x IEC C20 40 Amp
iBB-2C20
2 x IEC C20 40 Amp
iBB-2C20-M
Ref: iBootBar_v1.20
Scope of this Document:
Outlets
8 x NEMA 5-15
8 x NEMA 5-15
8 x NEMA 5-15
8 x NEMA 5-15
8 x NEMA 5-15
8 x NEMA 5-15
8 x NEMA 5-15
8 x NEMA 5-15
8 x IEC C13
8 x IEC C13
8 x IEC C13
8 x IEC C13
8 x IEC C13
8 x IEC C13
8 x IEC C13
8 x IEC C13
Technical Support Hotline: (201) 934-5111 tech@dataprobe.com
Main: 201-934-9944
iBootBar
Installation and Operations
Version 1.20
Control
IP Control, Serial Control
IP Control, Serial Control, Internal Modem
IP Control, Serial Control
IP Control, Serial Control, Internal Modem
IP Control, Serial Control
IP Control, Serial Control, Internal Modem
IP Control, Serial Control
IP Control, Serial Control, Internal Modem
IP Control, Serial Control
IP Control, Serial Control, Internal Modem
IP Control, Serial Control
IP Control, Serial Control, Internal Modem
IP Control, Serial Control
IP Control, Serial Control, Internal Modem
IP Control, Serial Control
IP Control, Serial Control, Internal Modem
Website: dataprobe.com
