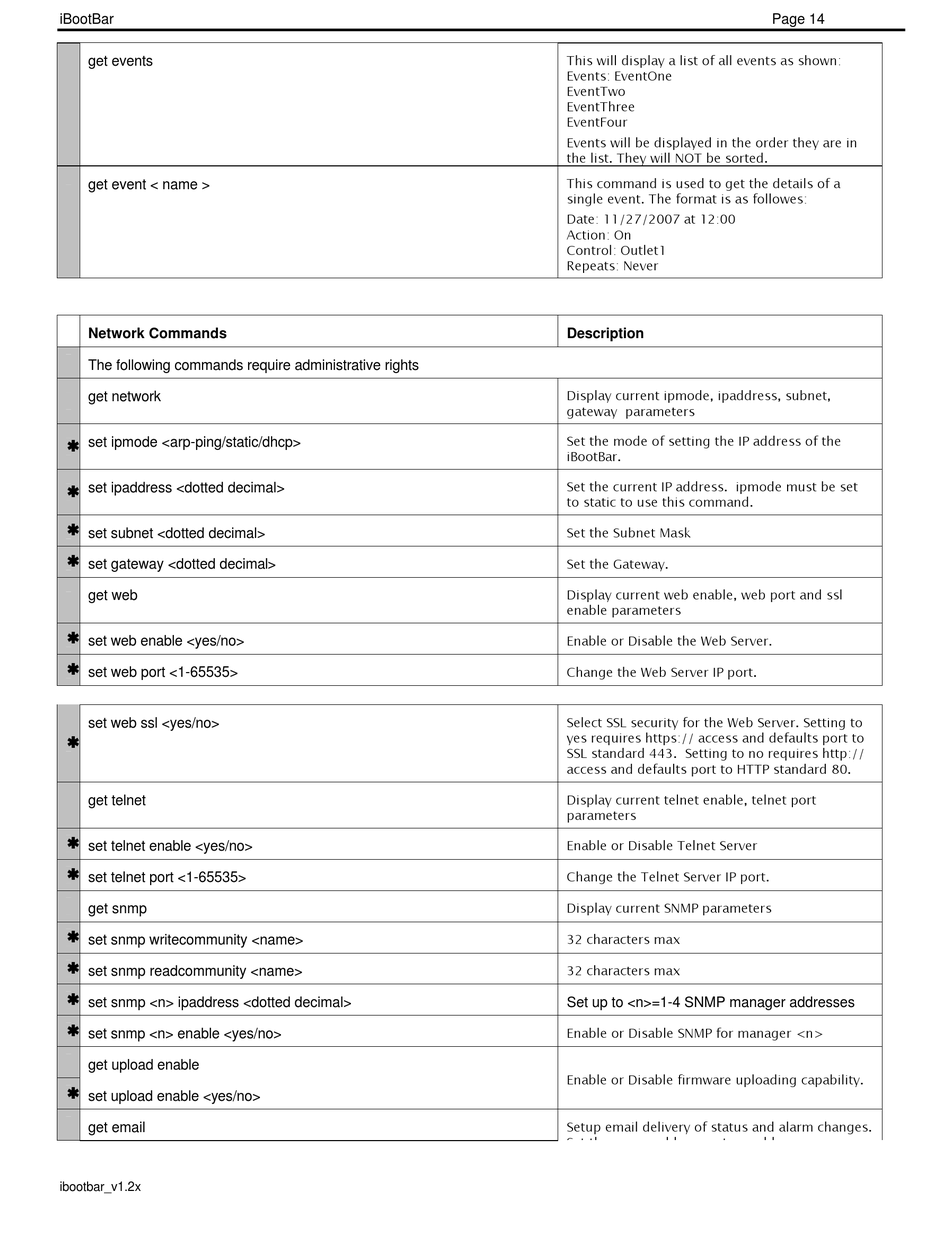

Dataprobe iBootBar Installation And Operations page 14

iBootBar
get events
get event < name >
Network Commands
The following commands require administrative rights
get network
set ipmode <arp-ping/static/dhcp>
ß
set ipaddress <dotted decimal>
ß
ß
set subnet <dotted decimal>
ß
set gateway <dotted decimal>
get web
ß
set web enable <yes/no>
ß
set web port <1-65535>
set web ssl <yes/no>
ß
get telnet
ß
set telnet enable <yes/no>
ß
set telnet port <1-65535>
get snmp
ß
set snmp writecommunity <name>
ß
set snmp readcommunity <name>
ß
set snmp <n> ipaddress <dotted decimal>
ß
set snmp <n> enable <yes/no>
get upload enable
ß
set upload enable <yes/no>
get email
ibootbar_v1.2x
This will display a list of all events as shown:
Events: EventOne
EventTwo
EventThree
EventFour
Events will be displayed in the order they are in
the list. They will NOT be sorted.
This command is used to get the details of a
single event. The format is as followes:
Date: 11/27/2007 at 12:00
Action: On
Control: Outlet1
Repeats: Never
Description
Display current ipmode, ipaddress, subnet,
gateway parameters
Set the mode of setting the IP address of the
iBootBar.
Set the current IP address. ipmode must be set
to static to use this command.
Set the Subnet Mask
Set the Gateway.
Display current web enable, web port and ssl
enable parameters
Enable or Disable the Web Server.
Change the Web Server IP port.
Select SSL security for the Web Server. Setting to
yes requires https:// access and defaults port to
SSL standard 443. Setting to no requires http://
access and defaults port to HTTP standard 80.
Display current telnet enable, telnet port
parameters
Enable or Disable Telnet Server
Change the Telnet Server IP port.
Display current SNMP parameters
32 characters max
32 characters max
Set up to <n>=1-4 SNMP manager addresses
Enable or Disable SNMP for manager <n>
Enable or Disable firmware uploading capability.
Setup email delivery of status and alarm changes.
Set the server address, return address, username
Page 14
