Summary of Contents for Yaasa Desk Pro II

  • Page 1 Yaasa Desk Pro II Translation of the original operating instructions...

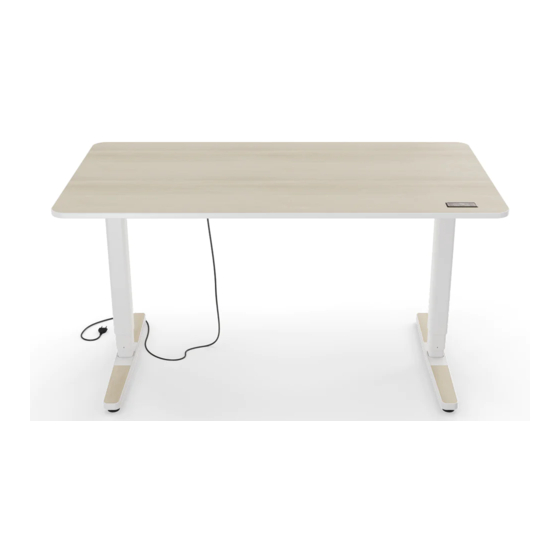

  • Page 2 The Yaasa Desk Pro II is a seating-standing desk (‘desk’) with electronic height adjustment for office and home use. The Yaasa Desk Pro II with electrical height adjustment has been tested, and complies with the requirements relating to safety, durability and stability defined in EN 527-2.
  • Page 3 The Yaasa Desk Pro II has a collision detection system, the Intelligent System Protection or ‘ISP’). The ISP function serves to minimise damage and injuries caused by crushing. The user remains responsible for using this product properly. This desk can be only used by children from the age of 8 and by people...
  • Page 4 or people. The person operating the desk needs to have an unrestricted range of view of the desk and its surrounding area in order to observe its movements and to prevent collisions, damage and injuries when adjusting the desk height upwards or downwards. Never place items under the desk that are higher than 54 cm.
  • Page 5 TECHNICAL PROPERTIES & PRODUCT DETAILS Table size Weight 139 cm x 75 cm 36,64 kg 54,5- 122,5 160 cm x 80 cm 39,50 kg 54,5- 122,5 180 cm x 80 cm 41,41 kg 10,8 54,5- 122,5...
  • Page 6 Frame: made of powder-coated steel for desk tops: 138x75 to 180x80 with aluminium base including 4 levelling slides with a 10 mm thread Height adjustment interval: 62 to 128 cm Lifting speed: 38 mm/s Lifting pillars: 3-stage Max. loading: 80 kg Input: 230 V / 50 Hz / 2 A Switching cycles:...

  • Page 7: Scope Of Delivery

    SCOPE OF DELIVERY F G J Package 1 of 2 A 1 x table frame with table legs B 2 x table feet with levelling sliders C 2 x side profiles D 4 x plastic cover for side profiles E 1 x pre-wired keypad handset with memory function (‘hand switch’) F 1 x power unit G 1 x power cable H 1 x cover plate for power unit...

  • Page 8: Installation

    INSTALLATION & ASSEMBLY INSTRUCTIONS Always assemble the desk in accordance with the Assembly Guide. The Assembly Guide is supplied with the desk on a separate sheet of paper (package 1 of 2).
  • Page 10 ONLY FOR SIZES M & L...
  • Page 13 The following cable routing is recommended: Power Motor 1 Motor 2 COMMISSIONING AND USE OF THE DESK After installation of the desk, the levelling slides on the feet must be adjusted until the desk is horizontal and stable. Position the desk near a power socket and plug the power cable into the socket. The desk is now ready to use.

  • Page 14: Faqs And Troubleshooting

    FAQs AND TROUBLESHOOTING A detailed set of troubleshooting instructions can be viewed at www.yaasa.eu. FUNCTIONS Setting the desk height Press the Up and Down arrow keys on the keypad handset to raise or lower the desk. The desktop moves up or down until you release the key, or until the maximum or minimum desk height is reached.
  • Page 15 Saving the memory position This function saves a desktop height defined by you. A desktop height can be saved to each memory position key on the keypad handset. Proceed as follows to save a desktop height: Move the desktop to the desired height (e.g. 73 cm). Press the memory key.
  • Page 16 Factory Reset Here is how to perform a factory reset of the Yaasa Desk Pro II using a memory keypad handset: Press and hold down the following keys for 3 seconds: (memory keys 1 and 2 and the ‘Desk up’...

  • Page 17: Cleaning And Care

    CLEANING AND CARE The power cable on desk must be unplugged from its mains socket before all care or maintenance work on the desk. For slight and normal levels of soiling, the desktop can be cleaned using a paper towel, a soft, clean cloth (dry / damp) or a non-abrasive sponge (damp).

  • Page 18: Return Of Goods

    Customer Service at our (online) shop (by phone or e-mail). For any further information, in the event of problems occurring as well as for any further questions you may have, please contact Yaasa Living AG Kornhausstrasse 28 9000 St. Gallen, Switzerland. www.yaasa.eu info@yaasa.com © Yaasa Living AG 2020...
  • Page 19 Yaasa Living AG Kornhausstrasse 28 CH-9000 St.Gallen www.yaasa.de www.yaasa.eu...
