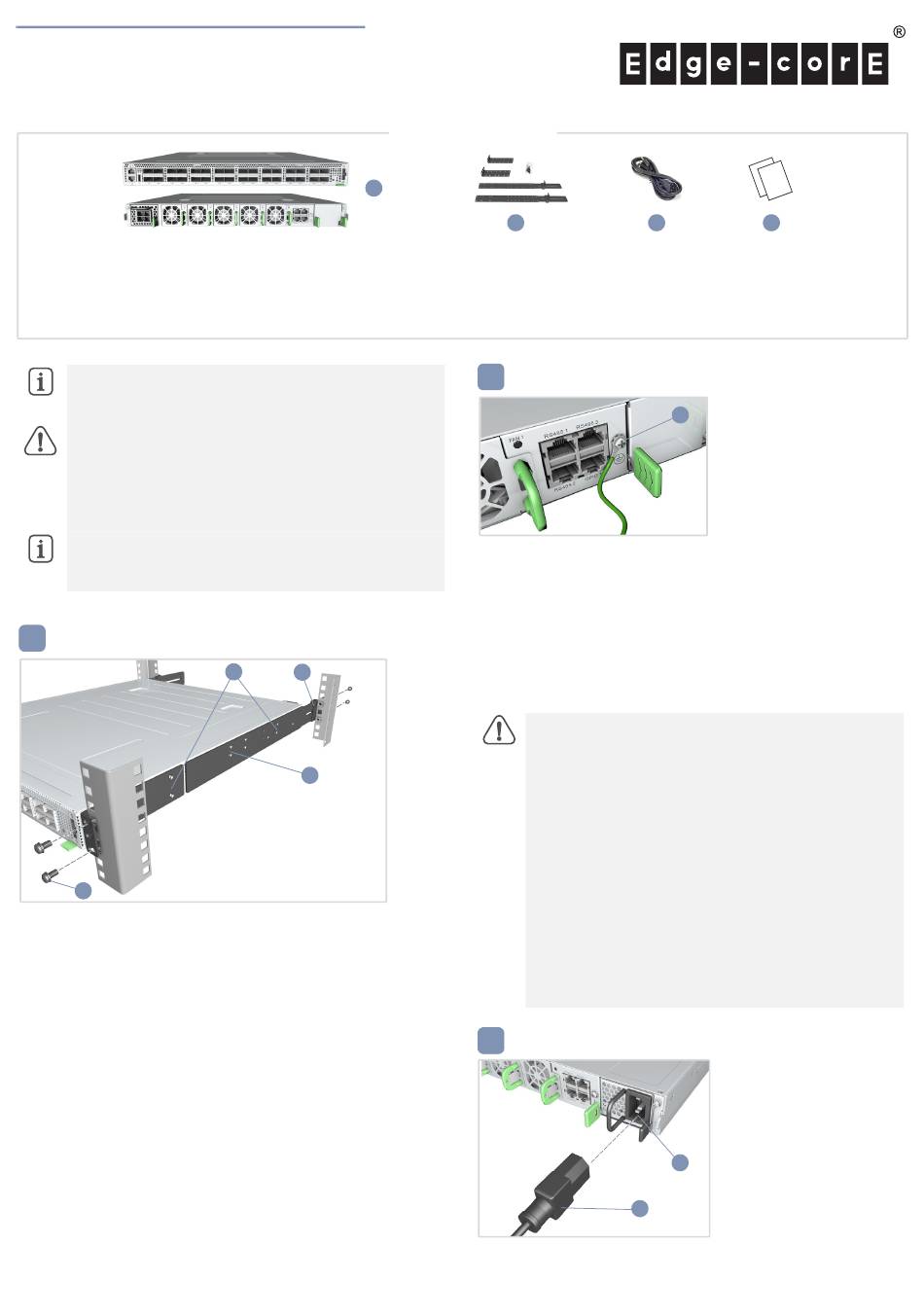

Edge-Core Wedge100BF-32QS Quick Start Manual

Quick Start Guide
32-Port 100G Ethernet Switch
Wedge100BF-32QS

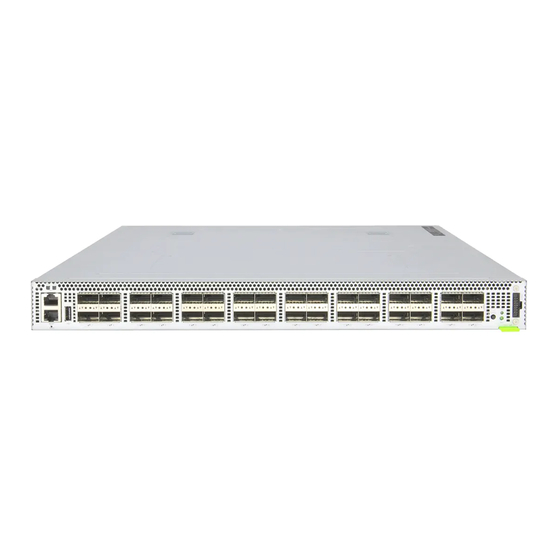

1. Wedge100BF-32QS
2. Rack Mounting Kit—2 front-post brackets, 2 rear-post
brackets, 20 screws, and 2 ear-locking screws
Note: For safety and regulatory information, refer to the
Safety and Regulatory Information document included with
the switch.
Caution: Risk of explosion if battery is replaced by an
incorrect type. Dispose of used batteries according to the
manufacturer's instructions.
Attention: Risque d'explosion si la batterie est remplacée
par un type incorrect. Éliminez les piles usagées
conformément aux instructions.
Note: The switch has the Open Network Install
Environment (ONIE) software installer pre-loaded on the
device, but no system software image.
1
Mount the Switch
3
1. Attach each of the front- and rear-post brackets to the device
using four of the included bracket screws.
2. Use an additional two screws to secure each of the rear-post
brackets at the mid-point on the sides of the device.
3. Use the screws and cage nuts supplied with the rack to secure
the device in the rack.
4. Lock the position of the rear-post bracket ears using the included
position-locking screws.
You can also adjust the rear-post bracket ears to fit different rack
depths from 56 cm to 85 cm.
*150200002265H_R01*
Package Contents
1
1 4
2
2
3. Power cord—either Japan, US, Continental Europe, UK or
China
4. Documentation—Quick Start Guide (this document) and
Safety and Regulatory Information
2
Ground the Switch
1. Ensure the rack on which the switch is to be mounted is properly
grounded and in compliance with ETSI ETS 300 253. Verify that
there is a good electrical connection to the grounding point on
the rack (no paint or isolating surface treatment).
2. Attach a lug (not provided) to a #16 AWG minimum grounding
wire (not provided), and connect it to the grounding point on the
switch rear panel. Then connect the other end of the wire to rack
ground.
Caution: The chassis ground connection must not be
removed unless all supply connections have been
disconnected.
Attention: Le raccordement à la terre ne doit pas être
retiré sauf si toutes les connexions d'alimentation ont été
débranchées.
Caution: The device must be installed in a restricted-
access location. It should have a separate protective ground
terminal on the chassis that must be permanently connected
to a well grounded chassis or frame to adequately ground
the device chassis and protect the operator from electrical
hazards.
Attention: L'appareil doit être installé dans un
emplacement à accès restreint. Il doit comporter une borne
de terre de protection distincte sur le châssis, qui doit être
connectée en permanence à la terre pour assurer une mise
à la terre adéquate du châssis et protéger l'opérateur des
risques électriques.
3
Connect Power
1. Install two universal AC power supply units (PSUs) in the switch.
– 1 –
www.edge-core.com
3 4
1
1
2
E072020-CS-R01
150200002265H
