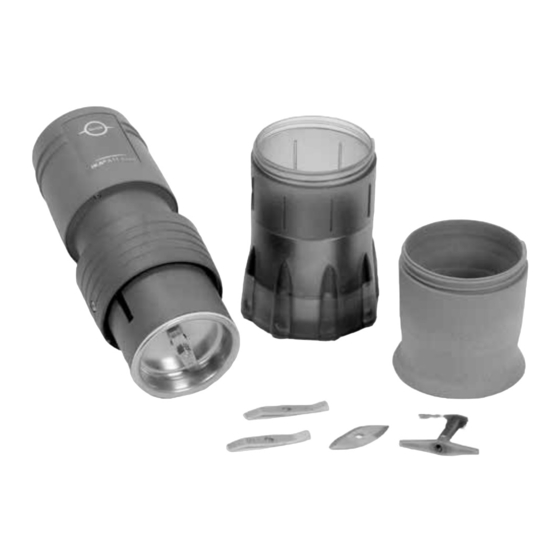

IKA A11 basic
Operating instructions
EN

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the A11 basic and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for IKA A11 basic

Summary of Contents for IKA A11 basic

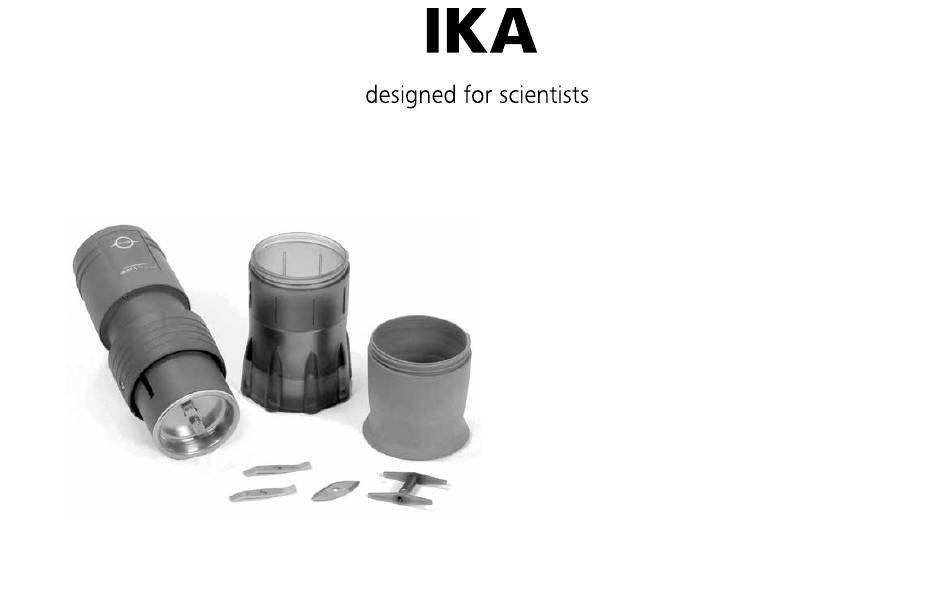

  • Page 1 IKA A11 basic Operating instructions...
  • Page 2 Fig. 3 Item Designation Guard ring O-ring Beater On/Off Hexagonal nut Pressure spring O-ring Maximale Füllhöhe Maximum filling height ® A11 basic Seal Guide screw Hexagonal nut Fig. 2 Druckrichtung Pressing direction On/Off-Taster On/Off-switch On/Off Störungsanzeige Malfunction display A11 basic ®...
  • Page 3 Cleaning information IKA A 11 basic Note: Prevent damage - keep clean! Tools STEP 1 Check STEP 2 Unscrew STEP 3 Remove STEP 4 Clean...

  • Page 4: Table Of Contents

    These operating instructions apply to all IKA- S versions (e.g. A 11 basic S 001). Explication of warning symbols Contents Page Indicates an imminently hazardous situation, which, if not DANGER avoided, will result in death, serious injury. EU Declaration of conformity...
  • Page 5 › Please note that wear debris from the device or rotating accessories can end up › With substances capable of forming an explosive mixture, appropriate safety mea- in the medium to be processed. Please contact IKA should you have any ques- sures must be applied, e.g. working under a fume hood.

  • Page 6: Intended Use

    Power supply / switching off the device: Intended use › The voltage stated on the type plate must correspond to the power voltage. › The device can only be disconnected from the power supply by pulling out the pow- Use: er plug or the connector plug.

  • Page 7: Unpacking

    WARNING reduced in the A 11 basic after confirmation from IKA, Everything that breaks, is dry, and does not have a high fat content can be ground.
  • Page 8 If the feed product has a fine fraction or if the same sample is cooled several Please follow the safety instructions. times, use filling funnel A 11.7 (IKA accessories). The funnel is attached to the Crushing causes the mill feed to heat up. This may not always be desirable as the grinding beaker before filling and prevents fines from the mill feed from swilling mill feed can change when heated (e.g.

  • Page 9: Commissioning

    The filling grinding container is screwed in onto the drive up to the stop (you can Commissioning hear a soft click just before reaching the stop). When electrical power has been connected, you can begin with the grinding Check whether the voltage specified on the type plate matches the mains voltage procedure.

  • Page 10: Exchanging And Replacing The Grinding Tools

    For this purpose, the thin end of the pin is inserted into the membrane grommet on the back of the A11 basic (above the power cord) to the stop. (see figure 6)
  • Page 11 Eliminating malfunctions: Remedy: The mill does not start up: - Release the On/Off - switch and remove the grinding container. If fragments of Causes: the grinding material have become stuck between the grinding tool and the guard - Power cord is not plugged into the socket correctly. ring, do not remove them until after you have disconnected the power cord.

  • Page 12: Maintenance And Cleaning

    - Screw in the grinding container up to the stop. water or in a dishwasher. - Check the power supply. Use only cleaning agents which have been approved by IKA to clean the device: Water The lifting motion is blocked: containing surfactant / isopropyl alcohol.
  • Page 13 For repair, please request the “Decontamination Clearance Certificate” from IKA, or download printout of it from the IKA website www.ika.com. Maintenance: If you require servicing, return the device in its original packaging. Storage pack- If beaters or blades wear out over the course of time, especially as a result of aging is not sufficient.

  • Page 14: Accessories

    Grinding process: Accessories As the double beater is already immersed in the mill feed when the grinding beaker is being screwed on, it is important that the sample is well shredded (maximum A 11.1 Beater 1.4034) A 11.5 Grinding container 80 ml particle size ø...

  • Page 15: Technical Data

    Technical data Design voltage 220 ... 230 ± 10% Parts in contact with product: 100 ... 115 ± 10% Grinding beaker A 11.5 (80 ml) Stainless steel 1.4571 (outer shell fluoroplastic ETFE) Frequency 50 / 60 Grinding beaker A 11.4 (250 ml) Stainless steel 1.4571 Power consumption (outer shell polycarbonate PC)

  • Page 16: Warranty

    Warranty In accordance with IKA warranty conditions, the warranty period is 24 months. For claims under the warranty please contact your local dealer. You may also send the machine direct to our factory, enclosing the delivery invoice and giving reasons for the claim.
  • Page 17 IKA Vietnam Company Limited IKA England LTD. Phone: +84 28 38202142 Phone: +44 1865 986 162 eMail: sales.lab-vietnam@ika.com eMail: sales.england@ika.com Discover and order the fascinating products of IKA online: www.ika.com IKAworldwide IKAworldwide /// #lookattheblue @IKAworldwide Technical specifications may be changed without prior notice.
