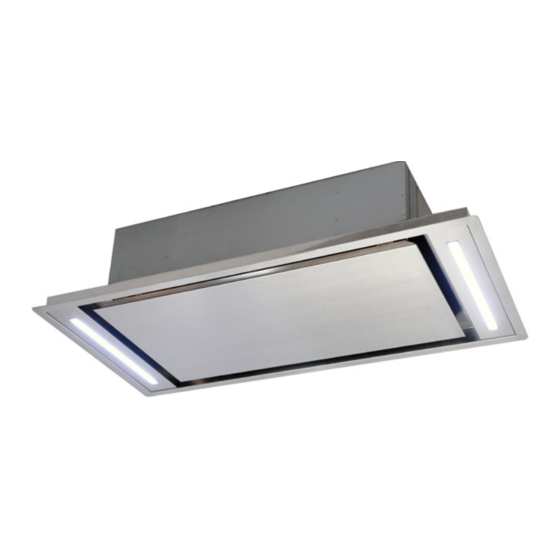

Ceiling hood
Hide thumbs
Also See for SUT950:
- Installation instructions manual (28 pages) ,
- Installation instructions manual (14 pages)
Table of Contents
Advertisement
Quick Links
Advertisement
Table of Contents
Related Manuals for Sirius Satellite Radio SUT950
Summary of Contents for Sirius Satellite Radio SUT950
- Page 1 INSTRUCTIONS CARE AND USE MANUAL FOR: Ceiling Hood Models covered by this instructions: SUT950 - SUT951 - SUT958 - SUT968 *** BEFORE INSTALLATION *** ENSURE THERE IS NO VISIBLE OR HIDDEN DAMAGE SUSTAINED DURING SHIPPING *** SHIPPING DAMAGE *** MUST BE REPORTED WITHIN 5 DAYS OF RECEIPT...
- Page 2 WAR NIN G Thank you for purchasing a Sirius Range Hood. Please read all the instructions in this manual before installing the appliance. Save these instructions for future reference. Only use this appliance as an exhaust ventilation system for the re- moval of cooking vapors.
-
Page 3: Table Of Contents
TABLE OF CONTENTS BEFORE YOU BEGIN DUCTING ELECTRICAL Electrical Supply INSTALLATION Before the installation Panels opening Installation OPERATING PROCEDURES General Advice Technical data Standard configuration Generating a new transmission code Learning the new transmission code MAINTENANCE Cleaning the Filter Cleaning the Hood Substitution of the LED bar WARRANTY SERVICE... -
Page 4: Before You Begin
B E FOR E Y O U B E G IN The manufacturer declines all responsibility BEFORE YOU BEGIN: It is advisable to in the event of failure to observe the instruc- test run the range hood before installa- tions given here for installation, maintenan- tion. -
Page 5: Electrical
E L E C T RIC A L WARNING: All electrical work must be Electrical Supply. performed by a qualified electrician. This appliance requires 120V/60Hz, 3amp electrical supply - ensure an appropriately Please ensure that the appropriate electrical qualified person completes the electrical ho- codes or prevailing local building codes and ok-up. -
Page 6: Installation
INSTALLATION Fit a false ceiling with an opening that has the following dimensions: SUT950: 57” 43/ x 37” 63/ Make 4 holes in the ceiling according to the distance of 12” between the ceiling and the dimensions as shown in Fig. - Page 7 5. SUT950 SUT950 SUT951 SUT958: The threaded bars are 9” 27/ long and ser- ve to install the ceiling-mounted hood at a distance from the solid ceiling of between 10”...
- Page 8 in case of a larger gap between the hood and the ceiling, you need to use longer th- readed bars. Connect the power supply into the metal box placed inside the hood as shown in fig. 7. FOR SUT968 MODEL ONLY: The appliance has the motor air out-let po- sitioned on its short side;...
- Page 9 Fig. 10 Fig. 7 Fig. 11 Fig. 8 Fig. 12 Fig. 9...
- Page 10 Fig. 13 Fig. 14...
-
Page 11: Operating Procedures
O PE R AT I N G PR O C E DU RES Read all the instructions before operating the appliance. Save these instructions for future reference. General Advice. Ensure that the grease filters are in place. Without these components, operating blo- wers could catch on to hair, fingers and lo- ose clothing. -
Page 12: Technical Data
SUT950 - SUT951 - SUT958 - SUT968 INITIAL OPERATING CONDITION The manufacturer supplies the radio control unit ready to be used with codes preset in the Factory RC001 ADIO ONTROL Radio control used for the remote operation of ducted cooker hoods. - Page 13 Reset of the Factory configuration: Warning The battery should be replaced eve- To restore the Factory configuration, follow the ry year to guarantee the optimal range of the procedure described below: press simultaneously transmitter. To replace the exhausted battery, buttons: take the plastic lid off, remove the battery and replace it with a new one, observing the cor- rect battery polarities.
-
Page 14: Maintenance
M A I N TE N A NCE The hood-fan should provide many years of FOR SUT950 - SUT951 trouble free service provided it is maintained properly. Turn blower and lights off. Make sure the lights are cool. Cleaning the Filter. -
Page 16: Warranty Service
Three Year Limited Warranty YOU MUST REGISTER THE PURCHASE OF YOUR PRODUCT ON LINE AT www.siriuscappe.com/usa/warranty.htm TO CONVALIDATE YOUR WARRANTY. YOU CAN FIND THE DATA OF YOUR HOODS ON A LABEL INSIDE THE HOOD. JUST REMOVE THE GREASE FILTER TO READ IT. WARRANTY SERVICE To qualify for warranty service, you must notify Sirius After sale service at the email address stated below or call toll free USA 1-877-474-8770 and provide the model number, description...
