INSTALLATION
INSTRUCTIONS
CARE AND USE MANUAL FOR:

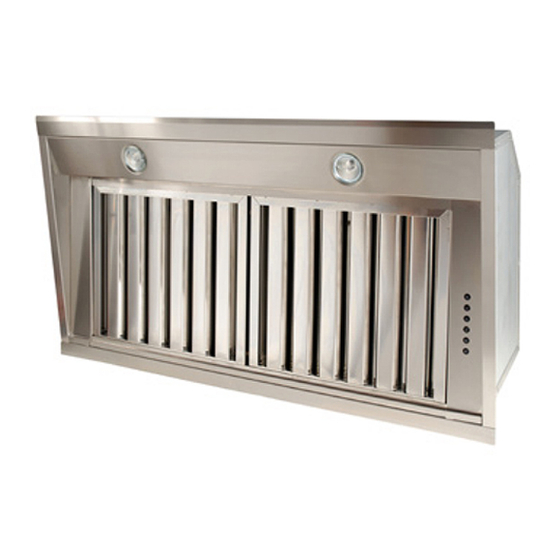

BUILT-IN RANGE HOODS
Models covered by this instructions:
SU900 - SUT900 - SUE900 - SU901 - SU902 - SU903
SU908 - SU906 - SU913 - SU923 - SUE923
*** BEFORE INSTALLATION ***
ENSURE THERE IS NO VISIBLE OR HIDDEN DAMAGE SUSTAI-
NED DURING SHIPPING
*** SHIPPING DAMAGE ***
MUST BE REPORTED WITHIN 5 DAYS OF RECEIPT
Advertisement
Table of Contents
Related Manuals for Sirius Satellite Radio SU900
Summary of Contents for Sirius Satellite Radio SU900
- Page 1 CARE AND USE MANUAL FOR: BUILT-IN RANGE HOODS Models covered by this instructions: SU900 - SUT900 - SUE900 - SU901 - SU902 - SU903 SU908 - SU906 - SU913 - SU923 - SUE923 *** BEFORE INSTALLATION *** ENSURE THERE IS NO VISIBLE OR HIDDEN DAMAGE SUSTAI-...
- Page 2 WAR NIN G Thank you for purchasing a Sirius Range Hood. Please read all the instructions in this manual before installing the appliance. Save these instructions for future reference. Only use this appliance as an exhaust ventilation system for the removal of coo- king vapors.
-
Page 3: Table Of Contents
TABLE OF CONTENTS BEFORE YOU BEGIN DUCTING External venting Requirements Duct Run Calculation ELECTRICAL Electrical Supply INSTALLATION Applications Connecting Electricity and Ducting Re-Circulating Requirements OPERATING PROCEDURES General Advice Functions MAINTENANCE Cleaning the Filter Cleaning the Hood Replace led lamp WARRANTY... -
Page 4: Before You Begin
B E FOR E Y O U B E G IN The manufacturer declines all responsibility BEFORE YOU BEGIN: It is advisable to in the event of failure to observe the instruc- test run the range hood before installa- tions given here for installation, maintenan- tion. -
Page 5: Duct Run Calculation
The ducting connection to the hood must Duct Run Calculation. be in line with the central vertical axis of the The maximum duct run before effecting the range hood 1” away from the back wall on performance of the hood is 100’. Calculate which the hood is to be mounted. -
Page 6: Installation
X 16” 13/32 3/16 Applications SU902 10” X 26” ½ The SU900, SUT900, SUE900 can either be SU903 27” 9” X 25” installed inside a wall cabinet (provided the 15/16 9/16 inside depth is greater than 11”) or used in SU903 36”... - Page 7 Installing a SCH31A with SU900 - SUT900 - SUE900. Hold the Sch31A under the cabinet and Screw it to the 4 hole locations. Make sure it lines up with the cut out in your cabinet. The power pack has pressure springs (to be adjusted) on the front and back that will “hook”...
- Page 8 Installing a Adjustable Pro Liner with SU901. Once the cut out has been done in- stall the Adjustable Pro Liner and make sure it lines up with the cut out in your cabinet. Screw it to the 4 hole locations (refer to fi- gure 5).
-
Page 9: Connecting Electricity And Ducting
The power pack has pressure springs (to There are six holes on the inside of the SU903 to fix the unit into the edge of the be adjusted) on the front and back that will base of the wooden cabinet (refer to figure “hook”... - Page 10 INSTALLATION SU906 To install the appliance please respect the Before installing the appliance, make sure follow instructions. that none of the parts is damaged in any The appliance must be install by competent way. In case of damaged parts, contact your authorities.
- Page 11 At this point, insert the range hood inside the Insert the LED bar on the appropriate hole kitchen cabinet until the fixed springs will be until it will be hooked into. hooked into. Fix the range hood to the cabinet, in the front and rear sides, using by the screws equipped.
-
Page 12: Re-Circulating Requirements
At the end, place the grease filters that were Connect the appropriate length of ducting to removed before. the fan exhaust point and join up with the ducting to the exterior. Do not fix the ducting to the range hood exhaust outlet with screws-use duct tape. -
Page 13: Operating Procedures
O PE R AT I N G PR O C E DU RES Read all the instructions before operating FUNCTION the appliance. Save these instructions for future reference. SU900–SU901–SU902–SU903-SU908- SU906-SU913-SU923 General Advice. Ensure that the grease filters are in place. A: Light ON/OFF button... - Page 14 RC001 Generating a new transmission code: The radio control system is provided with preset ADIO ONTROL codes. Should new codes be required, proceed Radio control used for the remote operation of as follows: Press simultaneously buttons: ducted cooker hoods. TECHNICAL DATA - Alkaline battery powered: 12 V mod.
- Page 15 WARNING The battery should be replaced every year to guarantee the optimal range of the transmitter. To replace the exhausted battery, take the pla- stic lid off, remove the battery and replace it with a new one, observing the correct battery polarities.
-
Page 16: Maintenance
Warning The battery should be replaced Filter requires washing indicator: after 30 every year to guarantee the optimal range hours of use, all the buttons will light up to of the transmitter. To replace the exhau- remind you that the grease filter should be sted battery, take the plastic lid off, remo- cleaned. -
Page 17: Replace Led Lamp
Replace led lamp SU900–SUT900- Take out the led lamp from its connector and SUE900-SU901–SU902-SU908 replace it with an another one with similar To replace the led lamp, remove the lamp characteristics. (Fig. 15) inserting a screwdriver or another To find the correct led lamp please check on sharp tool between the lamp and its chro the replacement part list. -
Page 20: Warranty
Three Year Limited Warranty YOU MUST REGISTER THE PURCHASE OF YOUR PRODUCT ON LINE AT www.siriuscappe.com/usa/warranty.htm TO CONVALIDATE YOUR WARRANTY. YOU CAN FIND THE DATA OF YOUR HOODS ON A LABEL INSIDE THE HOOD. JUST REMOVE THE GREASE FILTER TO READ IT. WARRANTY SERVICE To qualify for warranty service, you must notify Sirius After sale service at the email address stated below or call toll free USA 1-877-474-8770 and provide the model number, description...
