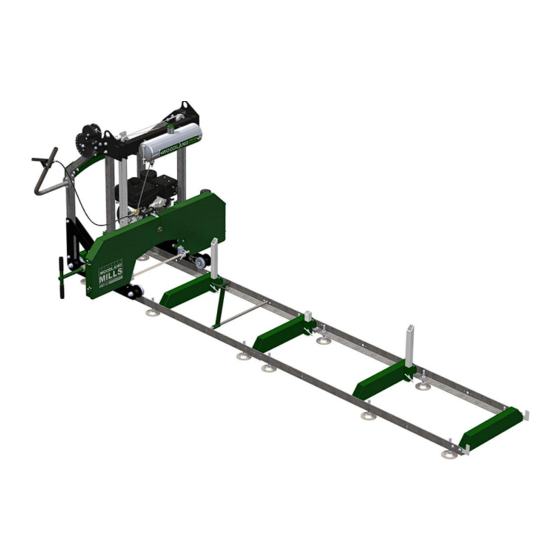

Woodland Mills HM122 Series Operator's Manual
Portable sawmill 7 and 9.5 horsepower models
Hide thumbs
Also See for HM122 Series:
- Operator's manual (108 pages) ,
- Owner's manual (52 pages) ,
- Assembly instructions manual (20 pages)
Table of Contents
Advertisement
Advertisement
Table of Contents
Related Manuals for Woodland Mills HM122 Series
Summary of Contents for Woodland Mills HM122 Series
- Page 1 HM122 PORTABLE SAWMILL 7 and 9.5 Horsepower Models OPERATOR’S MANUAL...
- Page 2 This page intentionally left blank.
-
Page 3: Table Of Contents
HM122 Operator’s Manual TABLE OF CONTENTS TABLE OF CONTENTS _______________________________________ INTRODUCTION _____________________________________________ INTENDED USE _____________________________________________ SAFETY GUIDELINES ________________________________________ WORK AREA __________________________________________________ INTERNAL COMBUSTION ENGINE SAFETY _________________________ PERSONAL SAFETY ____________________________________________ TOOL USE AND CARE __________________________________________ EQUIPMENT OPERATION ________________________________________ MAINTENANCE _______________________________________________ TECHNICAL SPECIFICATIONS ________________________________ OVERALL DIMENSIONS ________________________________________... -
Page 4: Method
HM122 Operator’s Manual THROTTLE HANDLE AND CABLE ________________________________ BAND WHEEL DOOR LATCHES __________________________________ TIGHTEN CARRIAGE WHEEL BOLTS _____________________________ 6. PLACING THE HEAD ON THE TRACK __________________________ METHOD 1 ____________________________________________________ METHOD 2 ____________________________________________________ ROLLING THE SAWMILL HEAD ASSEMBLY _______________________ LEVELLING THE SAWMILL HEAD ASSEMBLY _____________________ GREASING THREADS __________________________________________... - Page 5 HM122 Operator’s Manual ENGINE COMPONENTS—9.5 hp _________________________________ ENGINE COMPONENTS—7 hp ___________________________________ CARRIAGE ___________________________________________________ CROSS BEAM ________________________________________________ CARRIAGE LEG, WHEEL, AND SWEEPER _________________________ WINCH ______________________________________________________ THROTTLE HANDLE ___________________________________________ CABLES, TUBING & LABELS ____________________________________ NOTES ___________________________________________________ HM122-MY2020: Rev A Page 22-Oct-2019...
-
Page 6: Introduction
For technical questions and replacement parts, please contact Woodland Mills Inc. INTENDED USE Woodland Mills wood sawmills are designed for acreage owners to aid in the milling of natural, untreated wood with the mill firmly supported on the ground. Materials that are processed may contain chemicals or by-products that could corrode the machine or damage it, resulting in safety concerns. -
Page 7: Safety Guidelines
HM122 Operator’s Manual SAFETY GUIDELINES **SAVE THESE INSTRUCTIONS** WARNING! Read and understand all instructions. Failure to follow all instructions listed below may result in electric shock, fire, and/or serious injury. WARNING! The warnings, cautions, and instructions discussed in this instruction manual cannot cover all possible conditions or situations that could occur. -
Page 8: Work Area
HM122 Operator’s Manual WORK AREA Keep work area clean, free of clutter and well lit. Cluttered and dark work areas can • cause accidents. Do not use your sawmill where there is a risk of causing a fire or an explosion; e.g. in •... -
Page 9: Personal Safety
HM122 Operator’s Manual PERSONAL SAFETY • Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool when you are tired or under the influence of drugs, alcohol, or medication. -
Page 10: Tool Use And Care
HM122 Operator’s Manual TOOL USE AND CARE Always be sure the operator is familiar with proper safety precautions and operation • techniques before using machine. Never touch the engine or muffler while the engine is on or immediately after it has been •... -
Page 11: Equipment Operation
HM122 Operator’s Manual EQUIPMENT OPERATION Wear heavy-duty work gloves, ANSI-approved goggles behind a full face shield, steel-toed work boots, and a dust mask. Operate only with assistance. Cut-off branches from the lumber to be processed. Place the lumber to be cut on the track supports. Clamp the lumber firmly in place using the included log clamp and supports. -
Page 12: Maintenance
HM122 Operator’s Manual MAINTENANCE Proper and routine maintenance is critical to operator safety, achieving good milling results, and to prolong the life of your investment. Band Wheel Bearings — Inspect before use to ensure they are not worn. Bearings are •... -
Page 13: Technical Specifications
HM122 Operator’s Manual TECHNICAL SPECIFICATIONS The HM122 sawmill comes in two variants: the HM122-7 that utilizes a 7 horsepower engine and the HM122-9.5 with a 9.5 horsepower engine. Both versions are assembled and operated in the same manner. Pictures and graphics used in this manual display the HM122-9.5 sawmill but the instructions still apply to both. -
Page 14: Overall Dimensions
HM122 Operator’s Manual OVERALL DIMENSIONS HM122-MY2020: Rev A Page 22-Oct-2019... -
Page 15: Assembly
HM122 Operator’s Manual ASSEMBLY 1. TOOLS REQUIRED TOOL SPECIFICATION Wrench/Socket 7 mm (2X) Wrench/Socket 10 mm (2X) Wrench/Socket 13 mm (2X) Wrench/Socket 14 mm (2X) Wrench/Socket 15 mm (2X) Wrench/Socket 16 mm (2X) Wrench/Socket 17 mm (2X) Wrench/Socket 18 mm (2X) Wrench/Socket 19 mm (2X) Wrench... -
Page 16: Unpacking
HM122 Operator’s Manual 2. UNPACKING Unpack the contents of the crate except for the sawhead and the two long boxes in the bottom that contain the sections of track. Unfasten the two (2) M8 bolts/nuts on the front of the crate using a socket/wrench. -
Page 17: Track
M10 Flanged Carriage Stop Lock Nut End Bunk Mid Bunk Track Foot If a Woodland Mills sawmill trailer was purchased with this sawmill, skip this track assembly section and follow the track assembly instructions in those manuals. HM122-MY2020: Rev A Page... - Page 18 HM122 Operator’s Manual The track comes completely disassembled from the factory. Lay out all the components on a flat piece of level ground prior to assembly. See the TRACK exploded view for a more detailed part breakdown. HM122-MY2020: Rev A Page 22-Oct-2019...
- Page 19 HM122 Operator’s Manual When assembling the log bunks to the rails, ensure that the two end bunks are square (90°) as 90° shown in Figure 1. Use sixteen (16) M10 X 25 mm bolts at both end bunks and the two(2) mid bunks excluding the mid bunk at the rail joint (Figures 1 &...
- Page 20 HM122 Operator’s Manual 90.0° Attach the twelve (12) levelling feet to the track at the locations shown below. The bolt can be turned to either raise or lower the foot to adjust the level of the track (Figure 4). If setting the track on wooden blocks, use wood screws in the four holes in the foot base to secure each foot in place.
-
Page 21: Log Clamp And Supports
HM122 Operator’s Manual 4. LOG CLAMP AND SUPPORTS Assemble the log clamp components as shown below. Attach the completed assembly to the track using two (2) M10 X 25 mm bolts with lock nuts. Fully tighten these bolts. Log Clamp M8 X 20 mm Connecting Hex Bolt... - Page 22 HM122 Operator’s Manual Attach the log dog assembly to the track as shown below using the two (2) bolts and nuts provided. Note that there are various locations along the track where the log dog can be bolted. Depending on how many track sections are being used, select a log clamp position that will secure the log firmly against the log supports.
-
Page 23: Sawmill Head Assembly
HM122 Operator’s Manual 5. SAWMILL HEAD ASSEMBLY The sawmill head assembly is built in multiple steps. Follow the steps in the sub-sections below using the parts tables at the top of each sub-section to gather the necessary components and hardware for each step. FRONT POSTS M6 X 16 mm Front Post... -
Page 24: Carriage Legs
HM122 Operator’s Manual CARRIAGE LEGS The carriage leg sub-assemblies come loosely assembled from the factory. Final tightening of these bolts will be done in a later step. See the CARRIAGE LEG, WHEEL, AND SWEEPER exploded view for a more detailed part breakdown. M12 X 80 mm M12 Flat Hex Bolt... -
Page 25: Head Lock-Down Plates
HEAD LOCK-DOWN PLATES Woodland Mills sawmill trailer owners only If a Woodland Mills sawmill trailer was purchased with this sawmill, the head lock-down plates can be loosely installed prior to standing the sawhead upright. The lock-down plates come with the sawmill trailers and are not included with the sawmill. -
Page 26: Standing The Sawhead Upright
HM122 Operator’s Manual STANDING THE SAWHEAD UPRIGHT With the help of another person, stand the sawhead upright by rotating it around the rounded profiles at the front of the carriage legs. Do not set the sawhead on the track until instructed to do so later in the assembly process. -
Page 27: Rear Posts
HM122 Operator’s Manual REAR POSTS Using the hardware listed below, attach the rear posts between the carriage leg plates using only one (1) M12 X 80 mm bolt, flat washer, and lock nut per post. M12 X 80 mm Hex Bolt M12 Lock Nut Rear Post M12 Flat... -
Page 28: Cross Beam
HM122 Operator’s Manual CROSS BEAM With the hardware listed below, assemble the cross beam to the carriage posts. Cross Beam M12 X 90 mm and Pulley Hex Bolt Assembly Log Scale M12 X 80 mm Indicator Hex Bolt Bracket M12 X 30 mm Spacer ... - Page 29 HM122 Operator’s Manual With the help of a second person, slide the cross beam over the carriage posts. Use seven (7) M12 X 80 mm bolts and one (1) M12 X 90 mm bolt (@ log scale indicator bracket) to fasten it in place.
-
Page 30: Lift Mechanism & Lift Cable
HM122 Operator’s Manual LIFT MECHANISM & LIFT CABLE Assemble the winch assembly to the right-rear post using the hardware listed below. The wire rope lift cable, crank arm, and index plate come pre-assembled to the winch. Winch and M8 X 70 mm Crank Arm Hex Bolt Assembly... - Page 31 HM122 Operator’s Manual Route the lift cable as shown in the steps below. [Engine removed from some views for clarity.] Cable crimp joint Lift cable comes pre- assembled to winch. Short cable end Long cable end Long cable routed around rear pulley Short cable routed around front pulley...
- Page 32 HM122 Operator’s Manual Connect the shorter end of the lift cable to the bolt in front of the left-front post. Connect the longer end of the lift cable to the turnbuckle next to the front-right post by removing the upper clevis pin and locking ring. The turnbuckle will be adjusted later when the sawhead is levelled.
-
Page 33: Lubrication Tank & Tubing
HM122 Operator’s Manual LUBRICATION TANK & TUBING With the hardware listed below, assemble the lubrication tank to the front of the cross beam. M8 X 16 mm Lubrication Hex Bolt Tank Tubing: Tank- M8 Lock Nut to-Valve Tubing: Valve- Lubrication to-Guide Tank Cap Block... - Page 34 HM122 Operator’s Manual Route the tank-to-valve tubing from the blue ring fitting on the tank to the vertical barbed fitting on the auto-lube valve. Route the valve-to-guide block tubing from the horizontal barbed fitting on the auto-lube valve, down to the copper drip nozzle on the guide block holder shaft. Route tube from valve on tank Route tubing...
-
Page 35: Log Scale
HM122 Operator’s Manual LOG SCALE With the hardware listed below, assemble the log scale components. M6 X 15 mm Log Scale Hex Bolt Bracket Magnetic M6 Lock Nut Scale [White] M6 Flat Magnetic Washer Scale [Yellow] Log Scale Guide Lock Scale Locking Plate Log Scale Indicator... - Page 36 HM122 Operator’s Manual Bolt the log scale bracket—through the end with only two (2) slots—to the back beam with two (2) M6 X 15 mm bolts, flat washers, and lock nuts as shown below. Bolt log scale bracket to back beam through end with only 2 slots Note: the sawmill comes with two (2) different magnetic scales: one yellow, one white.
- Page 37 HM122 Operator’s Manual Assemble the guide, locking plate, and indicator arrow to the log scale indicator bracket using the M8 threaded knob. Adjust the position of the indicator bracket forwards or backwards if the guide and locking plate bind on the log scale bracket as the sawhead is raised and lowered. Adjust position of indicator bracket Store the other magnetic scale on the front side of the log scale bracket when not in use.
-
Page 38: Dashboard & Hour Meter
39.88 HM122 Operator’s Manual 1-9/16 DASHBOARD & HOUR METER 20.32 With the hardware listed below, assemble the dashboard to the rear carriage posts. 13/16 M12 X 80 mm M12 Flat Hex Bolt Washer M4 X 30 mm 20.32 M4 Flat Pan Head Washer 13/16... - Page 39 HM122 Operator’s Manual Assemble the hour meter to the right-side of the dashboard through the two (2) small holes. Use two (2) M4 X 30 mm pan head screws, four (4) flat washers (2 per screw), and two (2) lock nuts.
-
Page 40: Push Handle
HM122 Operator’s Manual PUSH HANDLE With the hardware listed below, assemble the push handle to the right rear carriage leg. M10 X 70 mm Flanged Hex Push Handle Bolt M10 Flanged Lock Nut The push handle is installed in an upward position when the sawmill is ground-mounted (below- left). - Page 41 HM122 Operator’s Manual When a desired push handle orientation has been decided upon, attach the push handle to the side of the post using two (2) M10 X 70 mm bolts and lock nuts as shown below. Fully tighten these bolts. The push handle can be adjusted/rotated forwards or backwards to suit the ergonomics of the operator in either ground-mount or sawmill trailer configurations.
-
Page 42: Throttle Handle And Cable
HM122 Operator’s Manual THROTTLE HANDLE AND CABLE Use the hardware listed below to assemble the throttle handle to the push handle and route the throttle cable to the engine. M4 X 12 mm Phillips Pan Head Screw Throttle Handle Assembly Throttle Cable Barrel Clamp The throttle handle comes loosely pre-assembled. - Page 43 HM122 Operator’s Manual With the throttle lever in the idle position (fully open), route the cable around the front-right carriage post. Pass the cable through the thimble in the auto-lube bracket and pull the unsheathed portion of the cable through the hole in the actuator tab, then to the engine. Next, route the unsheathed end of the cable through the hole in the barrel clamp, pull it tight while ensuring the throttle handle is still fully open, and then tighten the M4 Phillips pan head screw to secure it in place.
-
Page 44: Band Wheel Door Latches
HM122 Operator’s Manual BAND WHEEL DOOR LATCHES Using the hardware listed below, assemble the two (2) bottom band wheel door latches. M4 X 10 mm Phillips Flat Latch Head Screw M4 Lock Nut Use two (2) M4 X 10 mm flat head screws per latch. Assemble the latches to the pre-installed spacers on the bottom of the band wheel housing. -
Page 45: Tighten Carriage Wheel Bolts
HM122 Operator’s Manual TIGHTEN CARRIAGE WHEEL BOLTS Tighten the four (4) M20 X 120 mm bolts that fasten the carriage wheels to the carriage side plates. HM122-MY2020: Rev A Page 22-Oct-2019... -
Page 46: Placing The Head On The Track
HM122 Operator’s Manual 6. PLACING THE HEAD ON THE TRACK Before placing the head on the track, the carriage wheel spacing can be set to ensure they will fit properly on the rails. Check the wheel spacing to ensure that a distance of 26in [660 mm] is measured from outside to outside of the wheel grooves as shown below. -
Page 47: Method 1
HM122 Operator’s Manual At this point, most of the sawmill head bolts should only be hand tight. They will be fully tightened when the head is on the track and has settled in to a true and square state. There are two methods in which the sawmill head can be lifted onto the track assembly: METHOD 1 If a tractor or forklift is available, the head can be lifted onto the track with a lifting strap or chain... - Page 48 HM122 Operator’s Manual METHOD 2 At least two people are required for this step. Start by removing the two (2) carriage stops from one end of the track. The head can be walked over to the track until positioned behind it (Figure 1).
-
Page 49: Rolling The Sawmill Head Assembly
HM122 Operator’s Manual ROLLING THE SAWMILL HEAD ASSEMBLY Roll the sawmill head assembly along the full length of the track to ensure it moves freely. If it binds or is difficult to push it is likely the track is not square, straight, and/or level. Make the necessary adjustments to the track and roll the head assembly again. -
Page 50: Levelling The Sawmill Head Assembly
HM122 Operator’s Manual LEVELLING THE SAWMILL HEAD ASSEMBLY Using a tape measure, measure the distance from the blade to the top of the log bunk on both the left and right side. The distance must be equal. If the measurements are not equal, adjust the lift cable hook end to either raise or lower the right side until it matches the left. -
Page 51: Greasing Threads
HM122 Operator’s Manual GREASING THREADS Add waterproof grease to the threads of the blade tension T-handle and to the mating bearing face prior to use. **Note: It is very important to take the tension off the blade by turning the T-handle in the counter-clockwise direction when the sawmill is not in use. -
Page 52: Engine Oil
HM122 Operator’s Manual ENGINE OIL Refer to the engine manual before using your sawmill. Please note that the engine does not contain any gasoline or engine oil when it is shipped. Furthermore, the engine is equipped with an oil alert system, meaning that if the crankcase oil level is low or empty, the power is cut to the spark plug and it will not start. - Page 53 HM122 Operator’s Manual The engine comes with a brass oil drain extension to make oil changes easier. When removing the drain plug, use a wrench to hold the brass extension stationary while a second wrench loosens the plug. Failure to follow this procedure could damage the threads in the aluminum engine block and void the warranty.
-
Page 54: Direction Of Cut
HM122 Operator’s Manual DIRECTION OF CUT Always cut in the direction shown below. The log clamp is located to the right side of the log with the log supports on the left. Failure to cut in this direction can cause the log to come loose and possibly cause damage or injury. -
Page 55: Sawmill Set-Up Procedures
HM122 Operator’s Manual SAWMILL SET-UP PROCEDURES DRIVE BELT TENSION Make sure the blade is under proper tension when setting the drive belt tension. This ensures the belt is fully seated into the pulley grooves when the deflection is checked. See section, BLADE TENSION, for more information. - Page 56 HM122 Operator’s Manual Once both bolts are loose, firmly push the belt tensioner towards the band wheel until the belt is tight (#1), then tighten the upper bolt in the curved slot in a clockwise direction using a 13 mm socket (#2).
-
Page 57: Blade Tension
HM122 Operator’s Manual BLADE TENSION Proper blade tension is achieved when the thrust bearing is flush with the outer face of the spring washer holder after turning the T-handle clockwise. Spring Washer Holder Flush Proper Tension Thrust Bearing No Tension If the spring washer holder is removed for maintenance (e.g. -
Page 58: Blade Tracking
HM122 Operator’s Manual BLADE TRACKING Never attempt to adjust the blade tracking with the engine running. As a safety precaution, remove the spark plug cap. Gloves and safety glasses should be worn when working with the blade as it is extremely sharp. Right Side of Sawmill Left Side of Sawmill The blade should run with the same tooth-to-front band wheel face distance on both the drive... -
Page 59: Reducing The Blade Tension
HM122 Operator’s Manual REDUCING THE BLADE TENSION Loosen the blade guide holder assembly bolt using a socket/wrench. The shaft should now be free to slide rearward and out of the way. Perform this step on both blade guide assemblies. This ensures the guide bearings will not influence the tracking of the blade whilst being adjusted. -
Page 60: Adjusting The Follower Side Tracking
HM122 Operator’s Manual ADJUSTING THE FOLLOWER SIDE TRACKING The follower side band wheel shaft is connected to an auto-tracking system. Once the tracking is set, it maintains these settings even without a blade on the sawmill, allowing for quick and simple blade/belt changes. - Page 61 HM122 Operator’s Manual Turn the T-handle clockwise until proper blade tension is achieved. While wearing gloves, spin the band wheel by hand and observe how the blade tracking has changed. Measure the distance again and repeat the above step to further compensate if required. The ideal measurement is ⅜...
-
Page 62: Blade Guide Adjustment
HM122 Operator’s Manual BLADE GUIDE ADJUSTMENT Never attempt to adjust the guide blocks or the guide bearing with the engine running. As a safety precaution, remove the spark plug cap. It is also advised to confirm that the blade is tracking properly before performing the steps below. - Page 63 HM122 Operator’s Manual Using a feeler gauge or thick piece of paper (.020 in / 0.5 mm), place it between the blade and both guide blocks and then tighten the set screws. .020 in [0.5 mm] gap .040 in [1 mm] gap HM122-MY2020: Rev A Page 22-Oct-2019...
-
Page 64: Sawmill Maintenance
HM122 Operator’s Manual SAWMILL MAINTENANCE CHANGING THE BLADE Never attempt to change the blade with the engine running. As a safety precaution, remove the spark plug cap. Gloves and safety glasses must be worn when changing the blade. Follow these steps to remove an old/worn blade from the sawmill: 1. -
Page 65: Replacing Belts
Never attempt to replace the belts with the engine running. As a safety precaution, remove the spark plug cap. Gloves and safety glasses must be worn when replacing the belts. There are two V-belts on the sawmill: a BX71 cogged belt on the drive side and a Woodland Mills polyurethane belt on the follower side. - Page 66 HM122 Operator’s Manual Next, remove the tension from the drive belt by loosening the M8 hex bolt (#1) and the M16 hex bolt (#2) by approximately one (1) turn—do not remove the bolts. Once both bolts are loose, the belt tensioner will rotate counter- clockwise until the idler pulley comes to rest on the band wheel housing.
- Page 67 HM122 Operator’s Manual The follower belt is changed by prying it off and installing a new one with the aid of slotted screw drivers. The blade can now be re-installed, band wheel housing doors closed, and proper blade tension set. **Note that blade tracking should not have changed after replacing the belts.
-
Page 68: Troubleshooting
HM122 Operator’s Manual TROUBLESHOOTING Problem/Issue Possible Causes Resolution Options 1. Inadequate blade tension. 1. Tighten blade. Refer to page 55. 2. Improper blade guide set 2. Gap between guide blocks and blade are incorrect. Refer to page 60. Producing wavy 3. -
Page 69: Parts List
HM122 Operator’s Manual PARTS LIST Highlighted rows are items specific to HM122-9.5 (9.5 Horsepower) sawmill. Quantity Item Part No. Description 9.5 hp 7 hp 0001459 TRACK RAIL 0001457 LOG BUNK, END 0001458 LOG BUNK 0001463 REINFORCEMENT PLATE 0001055 CARRIAGE STOP 0001070 LEVELLING FOOT 0001460... - Page 70 HM122 Operator’s Manual Quantity Item Part No. Description 9.5 hp 7 hp 0002248 ADJUSTABLE DRAW LATCH 0001659 KNOB, MULTI-LOBE, 48 mm OD, M8 X 1.25, 17 mm LG 0001104 DRIVE SHAFT 0001993 FOLLOWER SHAFT, AUTO-TRACKING 0001482 BAND WHEEL, 16 in 0001483 V-BELT, FOLLOWER, B1206Li, 16 in DIA 0002017...
- Page 71 HM122 Operator’s Manual Quantity Item Part No. Description 9.5 hp 7 hp 0003233 MAGNETIC SCALE, 27 in, YELLOW 0003235 MAGNETIC SCALE, 27 in, WHITE 0002034 LUBRICANT TANK, 10 L [2.6 gal], MANOMETER/BADGE MOUNT 0001132 TANK CAP 0002109 HM122 NAMEPLATE 0002809 MANOMETER PIPE, LUBRICATION TANK 0002691 LUBRICATION TUBING, TANK-TO-ELBOW, 2-3/16 in [55 mm] LG...
- Page 72 HM122 Operator’s Manual Quantity Item Part No. Description 9.5 hp 7 hp HEX BOLT, M5 X 0.8, 10 mm LG HEX BOLT, M6 X 1, 15 mm LG HEX BOLT, M6 X 1, 20 mm LG HEX BOLT, M6 X 1, 35 mm LG HEX BOLT, M6 X 1, 45 mm LG HEX BOLT, M6 X 1, 50 mm LG HEX BOLT, M6 X 1, 55 mm LG, 18 mm LG THD...
- Page 73 HM122 Operator’s Manual Quantity Item Part No. Description 9.5 hp 7 hp SET SCREW, FLAT TIP, M8 X 1.25, 8 mm LG, SST SELF-TAPPING SCREW, PPH, #10, 5/8 in LG FLAT WASHER, M4 FLAT WASHER, M5 FLAT WASHER, M6 FLAT WASHER, M8 FLAT WASHER, M8, NYLON FLAT WASHER, M10 FLAT WASHER, M12...
-
Page 74: Exploded Assembly Views
HM122 Operator’s Manual EXPLODED ASSEMBLY VIEWS TRACK HM122-MY2020: Rev A Page 22-Oct-2019... -
Page 75: Sawhead
HM122 Operator’s Manual SAWHEAD HM122-MY2020: Rev A Page 22-Oct-2019... -
Page 76: Back Beam
HM122 Operator’s Manual BACK BEAM HM122-MY2020: Rev A Page 22-Oct-2019... -
Page 77: Guide Blocks
HM122 Operator’s Manual GUIDE BLOCKS HM122-MY2020: Rev A Page 22-Oct-2019... -
Page 78: Band Wheel Housing
HM122 Operator’s Manual BAND WHEEL HOUSING HM122-MY2020: Rev A Page 22-Oct-2019... -
Page 79: Band Wheel Housing Doors
HM122 Operator’s Manual BAND WHEEL HOUSING DOORS HM122-MY2020: Rev A Page 22-Oct-2019... -
Page 80: Band Wheels And Belt Tensioner
HM122 Operator’s Manual BAND WHEELS AND BELT TENSIONER HM122-MY2020: Rev A Page 22-Oct-2019... -
Page 81: Engine Components-9.5 Hp
HM122 Operator’s Manual ENGINE COMPONENTS—9.5 hp HM122-MY2020: Rev A Page 22-Oct-2019... -
Page 82: Engine Components-7 Hp
HM122 Operator’s Manual ENGINE COMPONENTS—7 hp HM122-MY2020: Rev A Page 22-Oct-2019... -
Page 83: Carriage
HM122 Operator’s Manual CARRIAGE HM122-MY2020: Rev A Page 22-Oct-2019... -
Page 84: Cross Beam
HM122 Operator’s Manual CROSS BEAM HM122-MY2020: Rev A Page 22-Oct-2019... -
Page 85: Carriage Leg, Wheel, And Sweeper
HM122 Operator’s Manual CARRIAGE LEG, WHEEL, AND SWEEPER HM122-MY2020: Rev A Page 22-Oct-2019... -
Page 86: Winch
HM122 Operator’s Manual WINCH HM122-MY2020: Rev A Page 22-Oct-2019... -
Page 87: Throttle Handle
HM122 Operator’s Manual THROTTLE HANDLE 188 2X 217 2X 188 2X 217 17X HM122-MY2020: Rev A Page 22-Oct-2019... -
Page 88: Cables, Tubing & Labels
HM122 Operator’s Manual CABLES, TUBING & LABELS HM122-MY2020: Rev A Page 22-Oct-2019... -
Page 89: Notes
HM122 Operator’s Manual NOTES HM122-MY2020: Rev A Page 22-Oct-2019... - Page 90 HM122 Operator’s Manual HM122-MY2020: Rev A Page 22-Oct-2019...
- Page 91 This page intentionally left blank.
