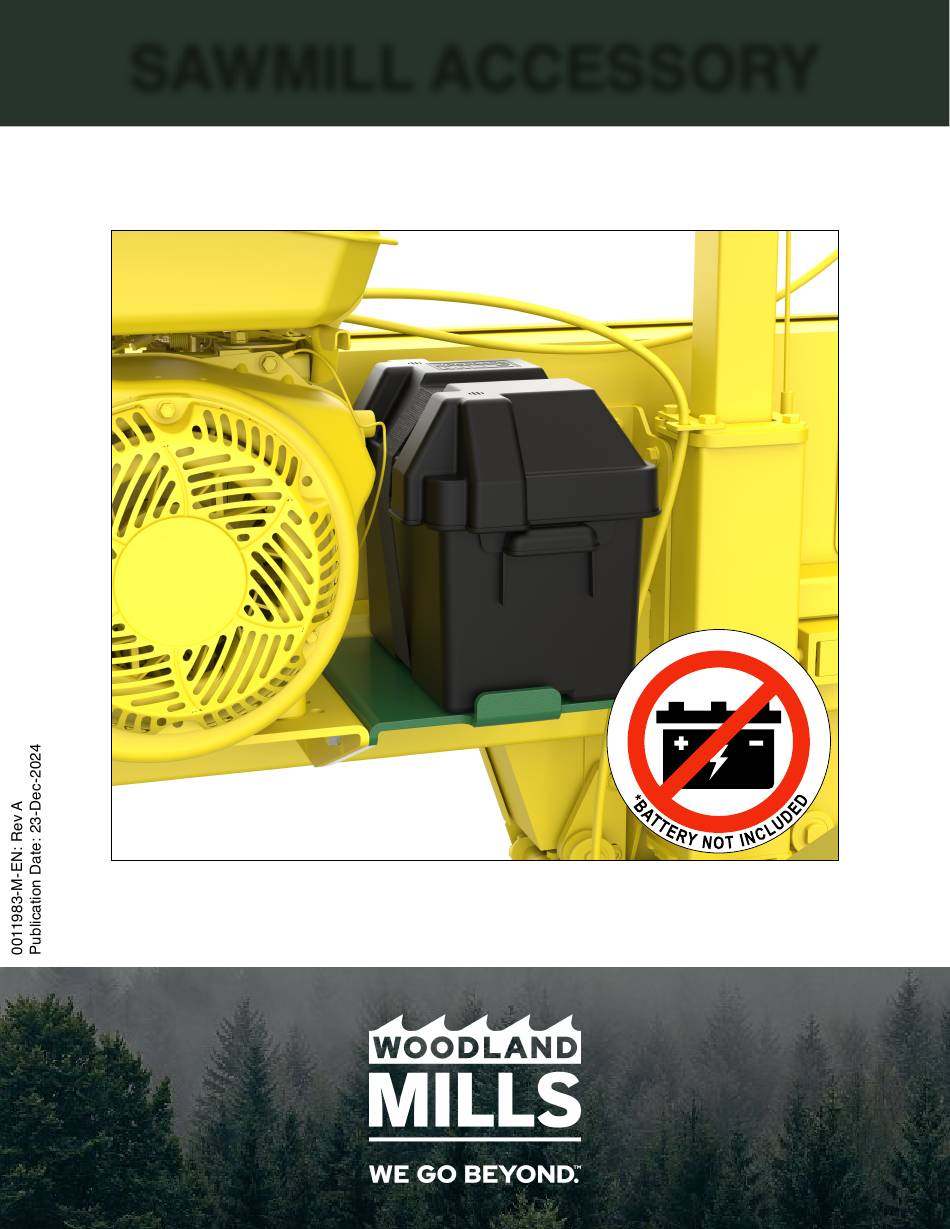

- Page 1 SAWMILL ACCESSORY HM126 and HM130 Sawmills without Electric Start Follow the instructions in this manual prior to installing Power Head 80 BATTERY MOUNT KIT: PH80...
-
Page 3: Table Of Contents
COMPATIBILTY________________________________________________________2 TOOLS REQUIRED ____________________________________________________2 ASSEMBLY ___________________________________________________________3 1. BATTERY MOUNT ________________________________________________3 2020 AND NEWER HM126 SAWMILLS _________________________________3 2019 AND OLDER HM126 SAWMILLS / HM130 SAWMILLS WITHOUT ELECTRIC START ___________________________________________________4 2. BATTERY BOX___________________________________________________7 3. BATTERY _______________________________________________________8 EXPLODED ASSEMBLY VIEW ___________________________________________9 PARTS LIST _________________________________________________________10... -
Page 4: Compatibilty
Battery Mount Kit: Power Head 80 HM126 and HM130 Sawmills COMPATIBILTY The battery mount kit is intended for owners of HM126 sawmills and HM130 sawmills without electric start who purchased a Power Head kit to raise and lower the sawhead. -
Page 5: Assembly
Power Head. 2020 AND NEWER HM126 SAWMILLS On 2020 and newer HM126 sawmills, assemble the battery mount to the side of the engine mount on the back beam using the components listed below. M10 X 30 mm... -
Page 6: 2019 And Older Hm126 Sawmills / Hm130 Sawmills Without Electric Start
HM126 and HM130 Sawmills 2019 AND OLDER HM126 SAWMILLS / HM130 SAWMILLS WITHOUT ELECTRIC START On 2019 and older HM126 sawmills—and HM130 sawmills without electric start—remove the belt tensioner lock nut and washer from the side of the engine mount. M10 Flat... - Page 7 Battery Mount Kit: Power Head 80 HM126 and HM130 Sawmills The engine mount varies in size/shape depending on the model year. Hold the battery mount up against the side of the engine mount, ensuring the belt tensioner bolt protrudes through the slot. The top surfaces of both mounts should be in-line with a noticeable gap at the front to clear any welds.
- Page 8 Battery Mount Kit: Power Head 80 HM126 and HM130 Sawmills Once the holes are drilled, secure the battery mount to the engine mount using three (3) M10 X 30 mm hex bolts, six (6) M10 flat washers, and three (3) M10 lock nuts.
-
Page 9: Battery Box
Battery Mount Kit: Power Head 80 HM126 and HM130 Sawmills 2. BATTERY BOX With the battery mount fully secured to the engine mount on the sawmill back beam, assemble the battery box base to the battery mount using the components listed below. -
Page 10: Battery
Battery Mount Kit: Power Head 80 HM126 and HM130 Sawmills 3. BATTERY Note: the battery is not included and will require charging. A battery that meets the minimum specifications listed below is recommended and can be purchased locally: Size Voltage... -
Page 11: Exploded Assembly View
Battery Mount Kit: Power Head 80 HM126 and HM130 Sawmills EXPLODED ASSEMBLY VIEW Battery not included. Shown for reference only. 0011983-M-EN: Rev A Page 23-Dec-2024... -
Page 12: Parts List
Battery Mount Kit: Power Head 80 HM126 and HM130 Sawmills PARTS LIST Item Part No. Description 0007512 BATTERY SUPPORT, REMOVABLE, PRE-2020 0005558 BATTERY BOX BASE, U1 BATTERY SIZE 0005559 BATTERY BOX LID, U1 BATTERY SIZE 0005734 BATTERY BOX STRAP, 38 mm WD, 1050 mm LG... -
Page 13: Notes
Battery Mount Kit: Power Head 80 HM126 and HM130 Sawmills NOTES 0011983-M-EN: Rev A Page 23-Dec-2024... - Page 14 Battery Mount Kit: Power Head 80 HM126 and HM130 Sawmills 0011983-M-EN: Rev A Page 23-Dec-2024...
