• Instructions in this Setup Guide show the TM-305 printer. Note that your printer may look different from these illustrations in some cases. However, the basic
operations are the same.
Important
Before Setting Up the Printer
In order to ensure that this product is used safely, be sure to read the precautions.
-> Quick Guide (separate manual)

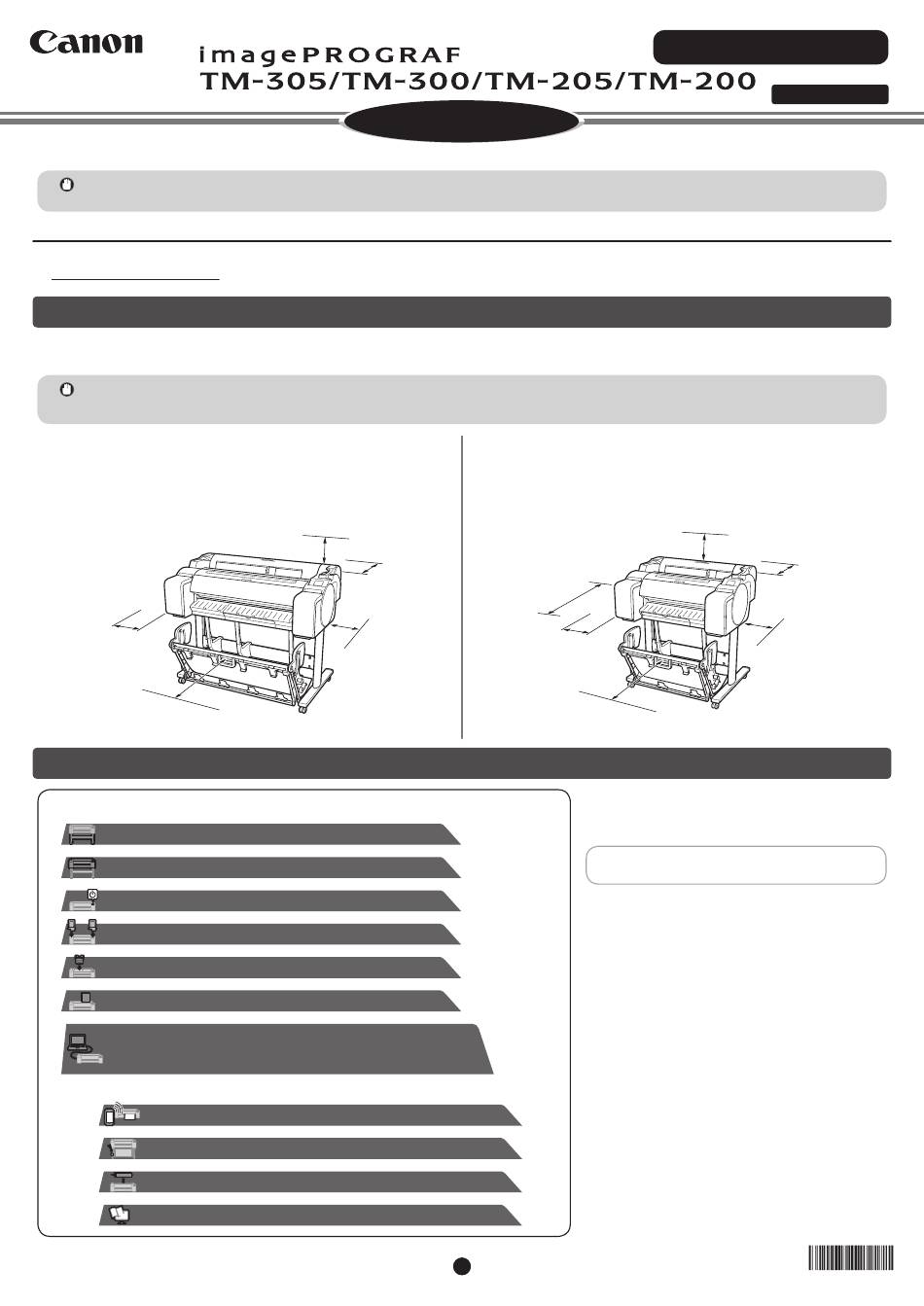

It is recommended that you reserve space of the following dimensions to allow you to work around the printer.
The images below show the space required to install each printer.
• The printer stand may not be included with your model.
• The space required in front of the printer differs on how the basket supplied with the printer stand is used. This shows the installation space when used in the
Important
position in the illustration.
TM-305/TM-300
Installation space (W x D x H)
∙ When using SD-32
66.5 x 67.0 x 53.6 inches (1689 x 1700 x 1360 mm)
7.9 inches
(200 mm)
23.6 inches
(600 mm)
(When using the stand)
Set up the printer using the following procedure.
*
Assembling the Stand
Installing the Printer
Turning On the Printer
Installing the Ink Tanks
Installing the Print Head
Loading Paper
∙ Performing Print Head Adjustment and
Selecting the Connection Method
∙ Connecting to the Printer
∙ Check this also after setup is complete.
Printing From a Smartphone or Tablet
Storing Accessories
Loading Roll Paper After Setup
Displaying the Online Manual
QT6-2699-V01
XXXXXXXX
Setup Guide
Installation Space
TM-205/TM-200
Installation space (W x D x H)
∙ When not using the stand
54.5 x 53.5 x 29.1 inches (1382 x 1358 x 739 mm)
∙ When using SD-23
54.5 x 67.0 x 53.6 inches (1382 x 1700 x 1360 mm)
11.8 inches (300 mm)
0.4 inches
(10 mm)
7.9 inches
(200 mm)
Overview of Setup
* Refer to the
(P.3)
separate manual
(P.3)
(P.5)
(P.6)
(P.7)
(P.9)
(on p.11 to p.13)
(P.13)
(P.13)
(P.13)
(P.14)
1
© CANON INC. 2018
Introductory Information
Read this manual before attempting to operate the printer.
Keep this manual for future reference.
23.6 inches
(600 mm)
(When not using
the stand)
7.9 inches
(200 mm)
23.6 inches
(600 mm)
(When using the stand)
If an error message appears during setup or other problems
occur, refer to "Responding to Messages" on p.14.
• Windows is a trademark or registered trademark of Microsoft
Corporation in the U.S. and/or other countries.
RMC (Regulatory Model Code): K10489
RMC (Regulatory Model Code): K10490
RMC (Regulatory Model Code): K10487
RMC (Regulatory Model Code): K10488
PRINTED IN XXXXXXXX
ENGLISH
11.8 inches (300 mm)
0.4 inches
(10 mm)
7.9 inches
(200 mm)
QT62699V01

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the imagePROGRAF TM-305 and is the answer not in the manual?

Questions and answers

Related Manuals for Canon imagePROGRAF TM-305

Summary of Contents for Canon imagePROGRAF TM-305

  • Page 1 Loading Roll Paper After Setup (P.13) RMC (Regulatory Model Code): K10489 RMC (Regulatory Model Code): K10490 Displaying the Online Manual (P.14) RMC (Regulatory Model Code): K10487 RMC (Regulatory Model Code): K10488 QT6-2699-V01 XXXXXXXX © CANON INC. 2018 PRINTED IN XXXXXXXX QT62699V01...

  • Page 2: Package Contents

    Package Contents A. Printer B. Roll holder: Already mounted on printer C. Holder stopper (*1) D. 3-inch paper core attachment (R, L) E. Print head F. Starter ink tanks (for first-time installation) (C, M, Y, MBK, BK) G. Paper for adjustment H.

  • Page 3: Assembling The Stand

    Assembling the Stand ∙ When using the stand Printer Stand Setup Guide (separate manual) -> Assemble the stand on which you will install the printer by referring to the ∙ When not using the stand "Installing the Printer" -> Proceed to Installing the Printer Remove the packaging material.
  • Page 4 • When setting the printer down temporarily make sure to put the printer on • Supporting only the center of the printer when carrying or setting the Caution a flat, stable surface. printer down may damage the printer. Place the printer on the stand such that the rear bottom corners of Affix the printer to the stand.

  • Page 5: Turning On The Printer

    Turning On the Printer Insert the power cord into the power connector on the side of the Plug the power cord into the outlet. printer, and attach an earth wire to the earth terminal on the back of the printer using a screwdriver. Turn on the printer.

  • Page 6: Installing The Ink Tanks

    Installing the Ink Tanks Install the 5 ink tanks by following the instructions on the screen. Instructions on ink tank installation are While pushing the tip of the ink tank lock Shake each ink tank gently 1 or 2 times shown on the touch screen.

  • Page 7: Installing The Print Head

    Installing the Print Head When the instruction to open the top cover appears on the touch Tilt the print head lock lever towards you. screen, open the top cover. Instructions are now shown on the touch screen regarding print head installation.
  • Page 8 Insert the print head into the carriage (B) with the ink holes (A) Pull the print head locking cover down toward the front to lock the on the upper side and facing towards you as shown in the figure. print head in place. Carefully push the print head firmly into the carriage (B), ensuring that the part covered by the protective caps does not touch the carriage.

  • Page 9: Loading Paper

    Loading Paper Load the paper for adjustment. When Select the paper on which to Slide the width guide (A) to align it with a Prepare 1 sheet of paper for adjustment. print the print head alignment pattern. marker indicating the size of the loaded Identify the printed side by referring to appears on the touch screen, select paper.
  • Page 10 When the paper feed is finished, the printer automatically starts When the print head adjustment is complete, the paper with the charging the ink for the first time and adjusting the print head. adjustment pattern printed on it is ejected. This takes about 25 minutes.
  • Page 11 Perform Print Head Adjustment and Select the Connection Method When the screen for selecting the connection method appears, select the connection method to use. • If you are connecting the printer to the network using a fixed IP address, select Do not connect. Configure the settings from the Note touch screen of the printer after the printer has finished charging the ink for the first time and adjusting the print head.

  • Page 12: Connecting To The Printer

    Connecting to the Printer The printer connection settings and software installation are performed using a computer. You can download the setup file from our website. If you are using a Windows PC, you can also run the file from the CD-ROM. However, if you selected No in step 3 for Wi-Fi connection on p.11, configure the Wi-Fi settings only using the printer.

  • Page 13: Storing Accessories

    Printer" on p.12. Printing From a Smartphone or Tablet With the “Canon PRINT Inkjet/SELPHY” application software, you can easily, wirelessly print photos stored on your smartphone or tablet (running iOS or Android). You can download this application by accessing the QR code to the right.

  • Page 14: Responding To Messages

    Displaying the Online Manual The Online Manual describes how to use the printer. It can be accessed from the Canon website as shown below. Access the Canon website by any of the following methods. Select Read Online Manual. Perform the remaining operations by following the instructions on the ∙...
