Summary of Contents for PXN 9607 PRO

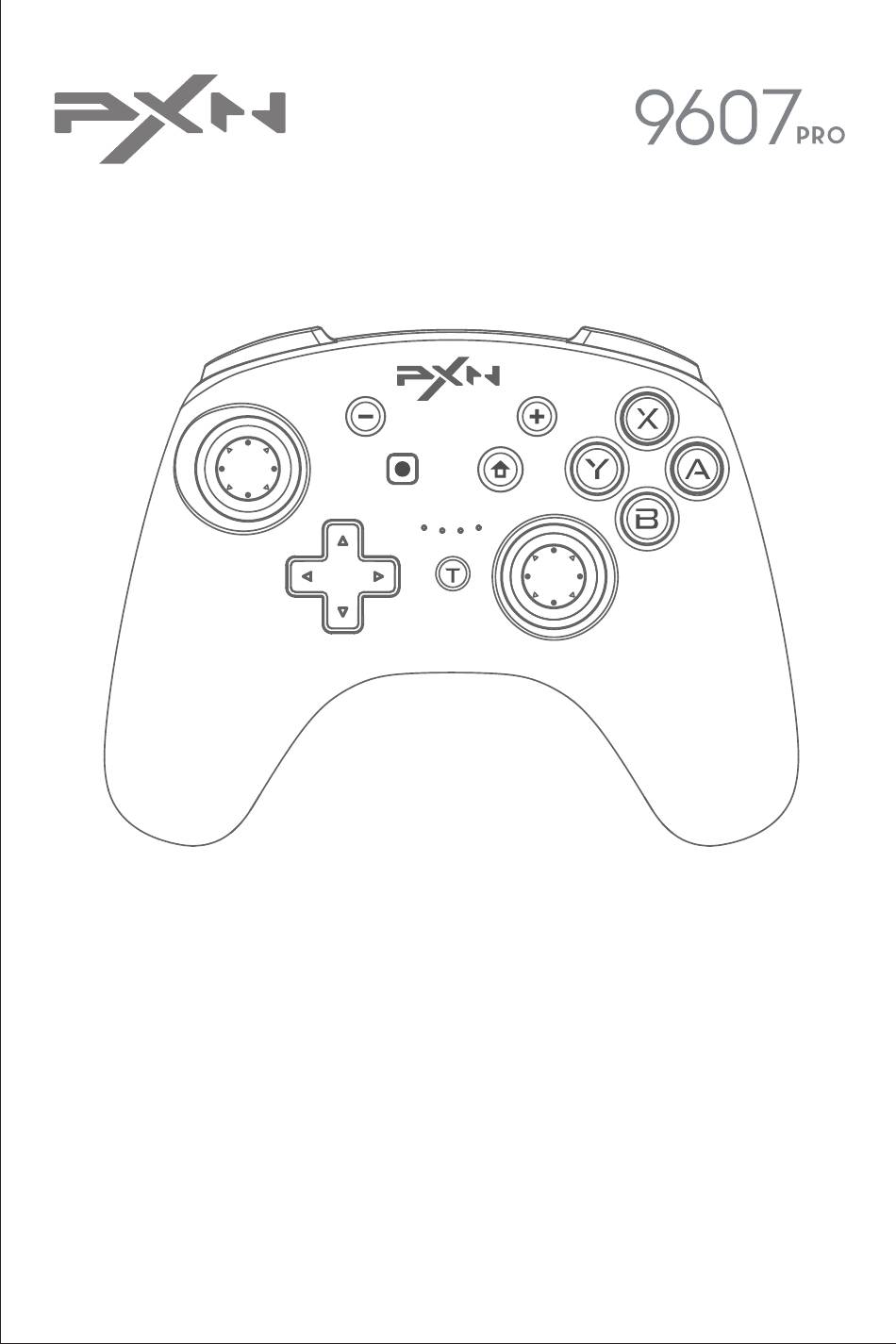

  • Page 1 W i r e l e s s C o n t r o l l e r Q u i c k S t a r t G u i d e...

  • Page 2: Product Overview

    Thank you for choosing PXN’sproduct and supporting our brand. Please read the manual carefully before using. Product Overview USB Charging Port HOME Joystick （ON/OFF） Indicator TURBO Functional Features Compatible with SWITCH console and PC. Wireless connection with SWITCH console by Bluetooth.

  • Page 3: System Requirement

    Support NFC function on SWITCH. High-efficiency lithium battery with smart power saving technology, providing longer playing time. System Requirement Support Platform: SWITCH console/PC Support System: SWITCH console system, Windows 7/8/10 SWITCH Console Wireless Connection Step ①: Clicking (Home) button of Switch console to enter homepage, Select Controller icon Change Grip/Order;...
  • Page 4 Step ③: Connect successfully when LED1 indicator flashes. Adjustable Vibration (Switch console Only) The controller vibration frequency have three levels of adjustments. -How to adjust it? After the controller connect with switch console successfully, Press L+R+ZL+ZR at same time. Three Levels of Vibration Vibration Levels Indicator Weak...

  • Page 5: Charging Function

    Step ②: LED 1+ LED 4 indicator light flashing; Step ③: Gamepad Checking WIN7/8/10, enter control interface device and printer controlller icon game control setting, choose feature test. POWER OFF/ON Power On: Long press (Home) button 1 second to power on. Power Off: Long press (Home) button 3 seconds to power off.

  • Page 6: Reset Function

    action. Under sleeping state, Press (Home) button of gamepad to power on. Reset Function When the controlller occurs to functional disorder, dead halt or other abnormalities, it can be reset power-off by pressing the switch in the reset slot on the back of the controlller and press the HOME button to restart connecting.

  • Page 7: Firmware Update

    ① Go to the official website (www.e-pxn.com) Service Download center Game tool find the firmware upgrade software of PXN-9607 Pro download and release the software. ② Open the firmware software, the interface is as follows: ③ Long- Press left stick ↓ and connect the controlller...
  • Page 8 time. The Update Firmware option on the interface is activated to indicate that the connection is successful, and click this option to upgrade. ④ Click ‘YES’ to confirm the upgrade. ⑤ Follow the on screen prompt to request and your update. Reboot the controlller, connect with Switch console.

  • Page 9: Specification

    4. Don't drop the controlller into fire or explosion danger may be caused by built-in battery. 5. Children should be under the custody of adults to use this product. Specification Product Mode PXN-9607 PRO Connection Pattern Bluetooth/wired connection Working Power Built-in 550mAh lithium battery Working Current...
