Item # 1003 954 809
1003 954 579
Model # FRS80938A
FRS80938AG
USE AND CARE GUIDE

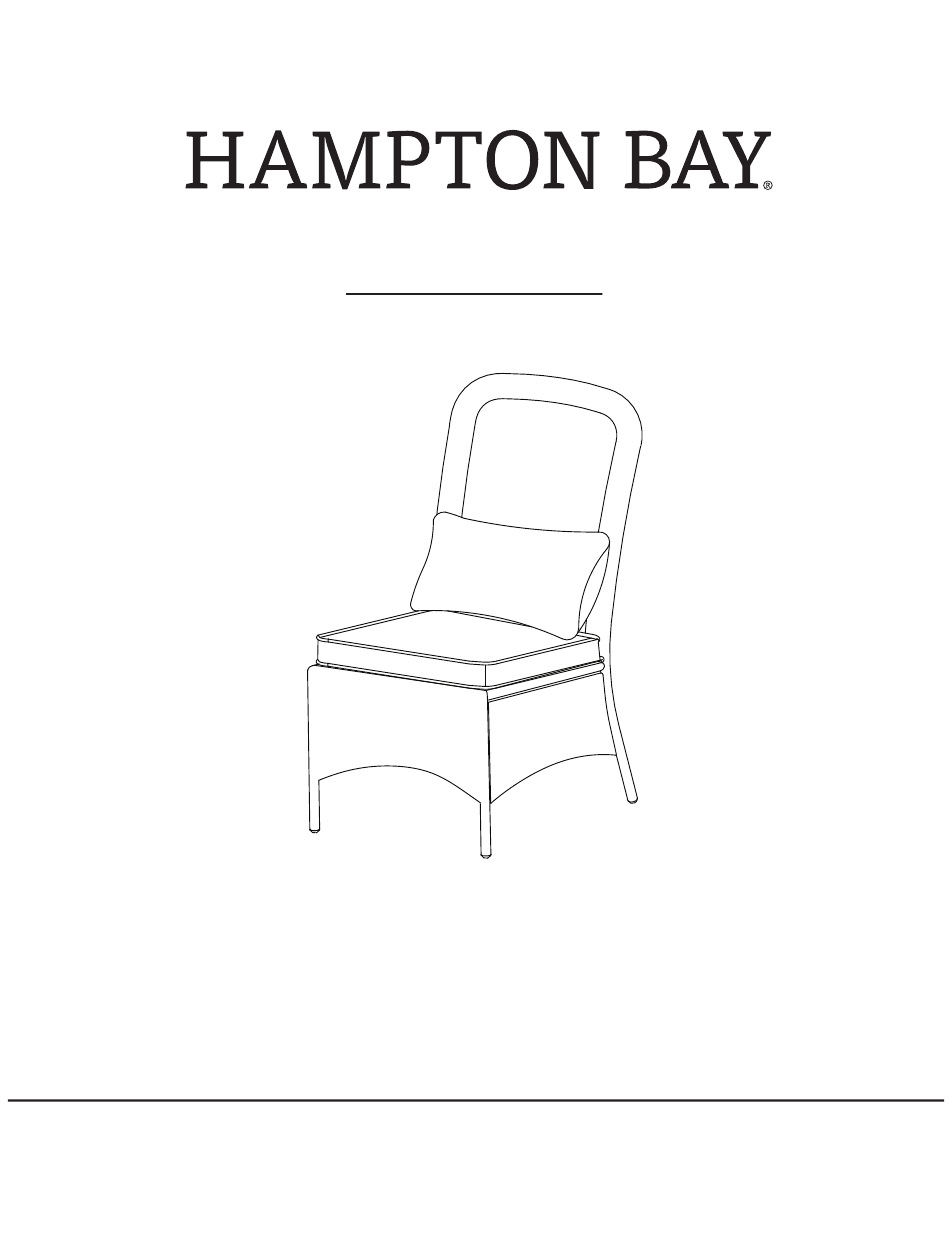

BEACON PARK WICKER 2-PACK ARMLESS CHAIR
Questions, problems, missing parts? Before returning to the store
call Hampton Bay Customer Service.
8 a.m. - 7 p.m., EST, Monday - Friday, 9 a.m. - 6 p.m., EST, Saturday
1-855-HD-HAMPTON
HAMPTONBAY.COM
THANK YOU
We appreciate the trust and confidence you have placed in Hampton Bay through the purchase of this chair. We strive to continually create
quality products designed to enhance your home. Visit us online to see our full line of products available for your home improvement needs.
Thank you for choosing Hampton Bay!
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for HAMPTON BAY BEACON PARK FRS80938A
Summary of Contents for HAMPTON BAY BEACON PARK FRS80938A
- Page 1 THANK YOU We appreciate the trust and confidence you have placed in Hampton Bay through the purchase of this chair. We strive to continually create quality products designed to enhance your home. Visit us online to see our full line of products available for your home improvement needs.
- Page 2 Table of Contents Table of Contents ............2 Pre-Assembly ..............3 Planning Assembly ..............3 Important Safety Instructions ........2 Hardware Included ..............Save These Instructions ............2 Package Contents ..............Read All Instructions Before Use ..........2 Assembly ................
- Page 3 Warranty 3 YEAR FRAME AND 3 YEAR FABRIC LIMITED WARRANTY WHAT IS COVERED We warrant the frames to be free of manufacturing defects to the original purchaser for three years, and a three year limited warranty for the fabric. WHAT IS NOT COVERED It remains the customer’s responsibility for freight and packaging charges to and from our service center.
- Page 4 Pre-Assembly (continued) PACKAGE CONTENTS Part Description Quantity Back Left side panel Right side panel Seat Seat cushion Accent pillow...
- Page 5 Assembly CONNECTING THE SEAT TO THE BACK Attach the seat (D) to the back (A) using an M6x50 combination bolt (BB). Do not fully tighten all the bolts at this step. NOTE : Loosely tighten all bolts using the hex wrench (CC). HAMPTONBAY.COM Please contact 1-855-HD-HAMPTON...
- Page 6 Assembly (continued) CONNECTING THE SIDE PANELS TO THE SEAT AND THE BACK Attach the left side panel (B) to the seat (D) using an M6x20 combination bolt (AA). Attach the left side panel (B) to the back (A) using M6x20 combination bolts (AA). Repeat above steps to assemble the right side panel (C) to the seat (D) and the back (A).
- Page 7 Assembly (continued) TIGHTENING THE BOLTS Once all of the bolts are in place, fully tighten the bolts using the hex wrench (CC). Turn the chair right side up. Place the seat cushion (E) and the accent pillow (F) to finish the assembly of the chair. Ensure all connections are secure before use.
- Page 8 Questions, problems, missing parts? Before returning to the store, call Hampton Bay Customer Service. 8 a.m. - 7 p.m., EST, Monday - Friday, 9 a.m. - 6 p.m., EST, Saturday 1-855-HD-HAMPTON HAMPTONBAY.COM Retain this manual for future use. Factory chair ID # FRS80938A...
