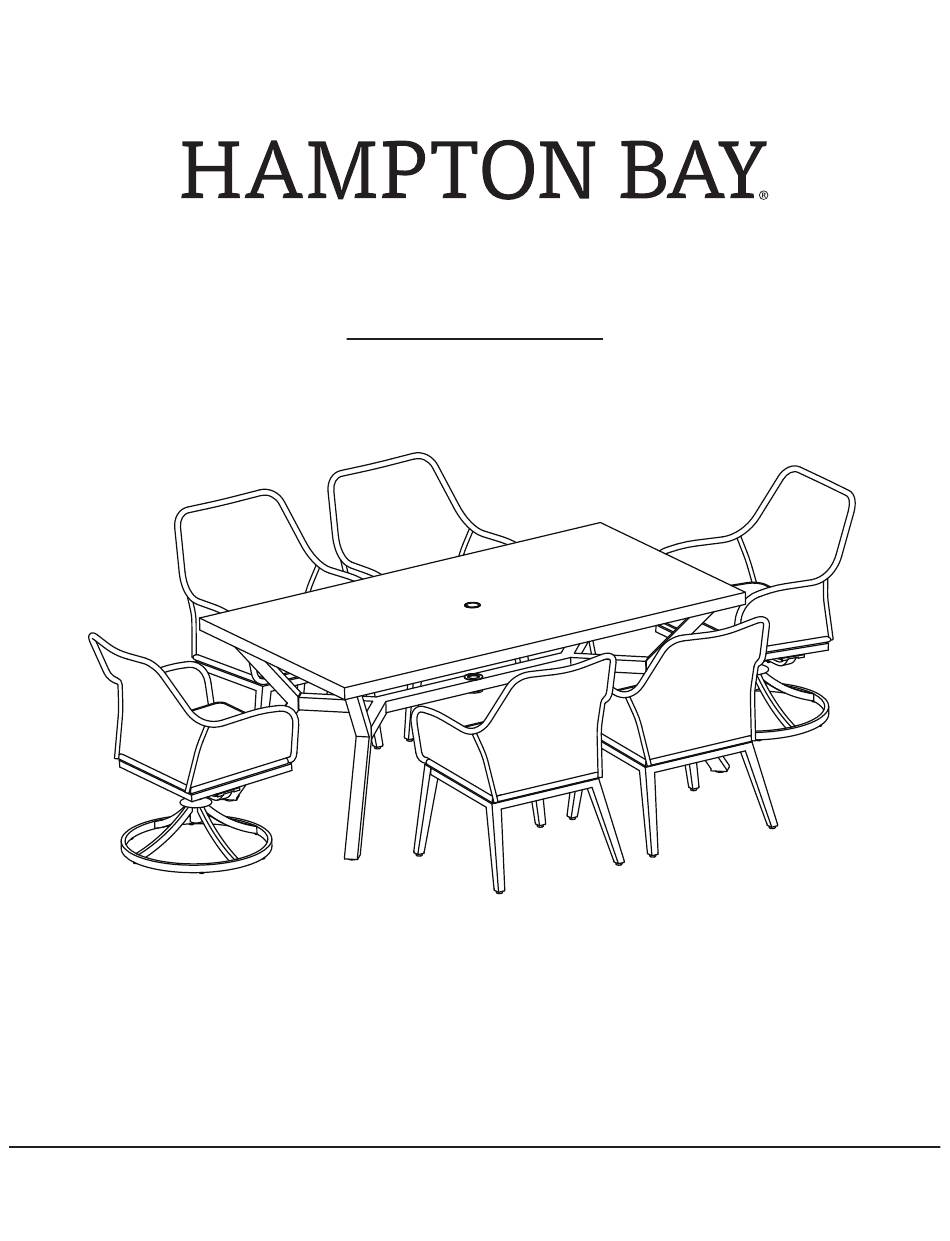

Page 1
THANK YOU We appreciate the trust and confidence you have placed in Hampton Bay through the purchase of this set. We strive to continually create quality products designed to enhance your home. Visit us onlineto see our full line of products available for your home improvement needs.
Warranty 2 YEAR FRAME AND 2 YEAR FABRIC LIMITED WARRANTY WHAT IS COVERED We warrant the frames to be free of manufacturing defects to the original purchaser for two years, and a two year limited warranty for the fabric. WHAT IS NOT COVERED Its remains the customer’s responsibility for freight and packaging charges to and from our service center.
Pre-Assembly (continued) SWIVEL CHAIR PACKAGE CONTENTS Part Description Quantity Seat Cushion Swivel Chair Bucket Support Tube Swivel Base TABLE PACKAGE CONTENTS Part Description Quantity Table Top Table Leg Leg Connector Umbrella Ring HOMEDEPOT.CA Please contact 1-855-HD-HAMPTON for further assistance.
Stationary Chair Assembly Attaching The Chair Base To The Chair Bucket Place the chair bucket (A) upside down on a soft surface. Attach the chair base (B) to the chair bucket (A) using the hand knob (CC). NOTE: Loosely tighten all the bolts using the hex wrench (DD). Tightening All Bolts Once all of the bolts are in place, fully tighten all the bolts using the hex wrench (DD).
Swivel Chair Assembly Attaching The Support Tube To The Swivel Chair Bucket Place the swivel chair bucket (D) upside down on a soft surface. Attach the support tube (E) to the swivel chair bucket (D) using M8x20 combination hex bolts (AA). NOTE: Loosely tighten all the bolts using the wrench (EE).
Page 8
Table Assembly Connecting The Table Leg To The Table Top Place the table top (G) upside down on a soft surface. Attach the table legs (H) to the table top (G) using M6x20 combination bolts (BB). NOTE: Loosely tighten all the bolts using the hex wrench (DD). Connecting The Leg Connector To The Table Leg Connect the leg connector (I) to the table legs (H) using M6x20 combination bolts (BB).
Table Assembly (continued) Tightening The Bolts Once all of the bolts are in place, fully tighten all the bolts using the hex wrench (DD). Turn the table right side up and put the umbrella ring (J) on the table top (G). Ensure all connections are secure before use.
Page 10
Questions, problems, missing parts? Before returning to the store, call Hampton Bay Customer Service 8 a.m. – 7 p.m., EST, Monday – Friday, 9 a.m. – 6 p.m., EST, Saturday 1-855-HD-HAMPTON HOMEDEPOT.CA Retain this manual for future use. For certification use only...
Page 11
MERCI Nous vous remercions d’avoir fait confiance à Hampton Bay en achetant cet ensemble. Nous nous efforçons en permanence de créer des produits de qualité conçus pour perfectionner votre maison. Vous pouvez visiter notre site Web pour consulter l’ensemble de notre gamme de produits et trouver des solutions à...
Page 12
Table des matières Table des matières ........2 Pré-assemblage.
Garantie GARANTIE DE 2 ANS SUR L’ARMATURE ET GARANTIE LIMITÉE DE 2 ANS SUR LE TISSU CE QUI EST COUVERT CE QUI EST COUVERT Nous garantissons à l’acheteur initial que les armatures seront exemptes de tout défaut de fabrication pendant deux ans et nous offrons une garantie limitée de deux ans sur le tissu.
Pré-assemblage (suite) QUINCAILLERIE FOURNIE REMARQUE : Les pièces de quincaillerie ne sont pas illustrées à leur taille réelle. Pièce Description Quantité Boulon mixte à tête hexagonale M8x20 16+1 Boulon mixte M6x20 Bouton manuel 12+1 Clé hexagonale Clé CONTENU DE L’EMBALLAGE DES CHAISES STATIONNAIRES Pièce Description Quantité...
Pré-assemblage (suite) CONTENU DE L’EMBALLAGE DES CHAISES PIVOTANTES Pièce Description Quantité Coussin de siège Baquet de chaise pivotante Tube de soutien Socle pivotant CONTENU DE L’EMBALLAGE DE LA TABLE Pièce Description Quantité Plateau de table Pied de table Connecteur de pieds Bague pour parasol HOMEDEPOT.CA Veuillez composer le 1 855 HD-HAMPTON pour une assistance supplémentaire.
Assemblage des chaises stationnaires Fixation Du Socle De Chaise Au Baquet De Chaise Placez le baquet de chaise (A) à l’envers sur une surface molle. Fixez le socle de chaise (B) au baquet de chaise (A) à l’aide du bouton manuel (CC). REMARQUE : Serrez légèrement tous les boulons à...
Assemblage des chaises pivotantes Fixation Du Tube De Soutien Au Baquet De Chaise Pivotante Placez le baquet de chaise pivotante (D) à l’envers sur une surface molle. Fixez le tube de soutien (E) au baquet de chaise pivotante (D) à l’aide de boulons mixtes à tête hexagonale M8x20 (AA). REMARQUE : Serrez légèrement tous les boulons à...
Assemblage de la table Fixation Du Pied De Table Supérieur Au Plateau De Table 20 Serrez légèrement tous les boulons à l’aide Fixation Du Connecteur De Pieds Aux Pieds De Table 20 Serrez légèrement tous les boulons à l’aide de...
Assemblage de la table (suite) Serrage Des Boulons Une fois que tous les boulons sont en place, serrez-les à fond à l’aide de la clé hexagonale (DD). Remettez la table à l’endroit et placez la bague de parasol (J) sur le plateau de table (G). Assurez-vous que toutes les fixations sont bien solides avant l’utilisation.
Page 20
Questions, problèmes, pièces manquantes? Avant de retourner au magasin, appelez le Service à la clientèle Hampton Bay. de 8 h à 19 h, HNE, du lundi au vendredi, et de 9 h à 18 h, HNE, le samedi 1-855-HD-HAMPTON HOMEDEPOT.CA Conservez ce guide pour un usage ultérieur.
