Leviton 20A Quick Install Manual

WARNINGS

•
TO AVOID FIRE SHOCK, OR DEATH, TURN OFF POWER AT CIRCUIT BREAKER OR FUSE,
TEST THAT POWER IS OFF BEFORE SERVICING OR WIRING!
• These devices conform to IEC standards 60309-1 and 60309-2. The construction is such that each
device cannot be mated with another IEC device of different specifications (i.e., voltage, amperage
or system rating). For safety purposes, do not use a non-IEC device with these pin and sleeve
devices. The specifions for non-IEC devices are established by the individual manufacturers, and
may not meet IEC standards. IMPROPER MATING OF DEVICES MAY CAUSE AN ELECTRICAL
HAZARD WHICH MAY CAUSE FIRE, SHOCK OR DEATH.

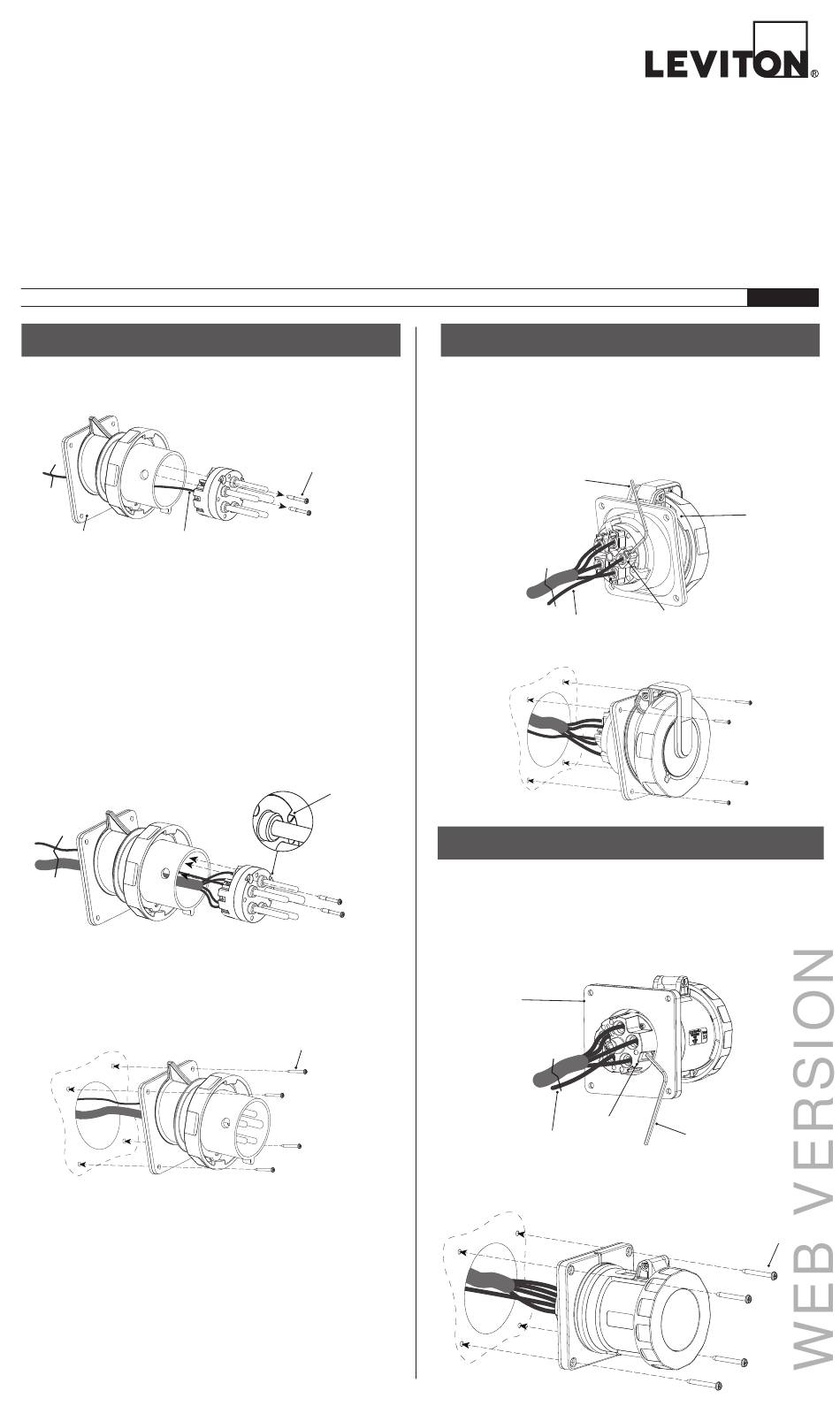

20A and 30A Inlet Installation

1.
Unscrew contact carrier.
gasket grounding wire
(pre-attached) (pre-attached)
2.
Wire.
Cut and strip cable jacket and conductors (Table 1 and Stripping and
Wiring Diagram).
WARNING: TO AVOID FIRE, SHOCK OR DEATH, connections must
be made in the same sequence as existing device connections.
Thread and connect wires (Table 2 and Stripping and Wiring Diagram).
Tighten terminal screws (Table 4). NOTE: Allen key included.
NOTE: Separate grounding wire has been pre-installed. Connect
ground wire first.
3.
Reconnect contact carrier.
Tighten terminal screws (Table 4).
4.
Mount.
Mount (Table 5) and tighten mounting screws.
If mounting to a backbox,
use Leviton:
BX230LEV - non-metallic
BX230LEVM metallic
© 2019 Leviton Mfg. Co., Inc.
Watertight Pin and Sleeve
Inlets and Receptacles
20A, 30A, 60A and 100A
QUICK INSTALL GUIDE
assembly screws
NOTE: Line up key with
key notch.
mounting screws
(not included)
• Examine devices periodically for any foreign matter that may contaminate the contacts or the insulation
material separating the contacts. Contamination decreases the device's insulation properties. This
increases the potential for arcing and possibly decreases the product's life and may cause fire and/or
shock hazard. The frequency of inspection depends upon the degree of contamination.
• If you are unsure about any part of these instructions, consult an electrician.
• To be installed and/or used in accordance with electrical codes and regulations (Including NEC/CEC,
as applicable).
CAUTION
• Use this device only with copper or copper clad wire.

20A and 30A Receptacle Installation

1.
Wire.
Cut and strip cable jacket and conductors (Table 1 and Stripping and
Wiring Diagram).
WARNING: TO AVOID FIRE, SHOCK OR DEATH, connections must be made
in the same sequence as existing device connections.
Connect wires (Table 2 and Stripping and Wiring Diagram). Tighten terminal
screws (Table 4).
NOTE: Separate grounding wire has been pre-installed. Connect ground wire first.
Allen key
(included)
grounding wire
(pre-attached)
2.
Mount.
Mount (Table 5) and tighten mounting screws (Table 4).

60A and 100A Receptacle Installation

1.
Wire.
Cut and strip cable jacket and conductors (Table 1 and Stripping and Wiring
Diagram).
WARNING: TO AVOID FIRE, SHOCK OR DEATH, connections must be made
in the same sequence as existing device connections. Connect wires (Table 2
and Stripping and Wiring Diagram). Tighten terminal screws (Table 4).
NOTE: Separate grounding wire has been pre-installed. Connect ground wire first.
gasket
(pre-attached)
terminal screws
grounding wire
(pre-attached)
2.
Mount.
Mount (Table 5) and tighten mounting screws.
PK-A3279-10-00-0A
ENGLISH
gasket
(pre-attached)
terminal screws
mounting screws
(not included)
Allen key
(included)
mounting screws
(not included)
