Leviton 123 Installation Instructions

WARNINGS AND CAUTIONS

• WARNING: TO AVOID FIRE, SHOCK, DEATH OR SERIOUS INJURY, DO
NOT:
- use on TPT or XT CORDS (extra flexible, as on shavers, toothbrushes, etc.)
- use on cords on heat-generating appliances (toasters, heaters, rated above
1250 watts).
- use on cloth covered cords (as on irons, etc.).
• To be installed and/or used in accordance with appropriate electrical codes and
regulations.

SPECIFICATIONS

RATED: 1250 Watts (10A-125V)
375 Watts (3A-125V)
on #18-2 SPT-1 Cords
(0.115" to 0.215" max. dimensions)

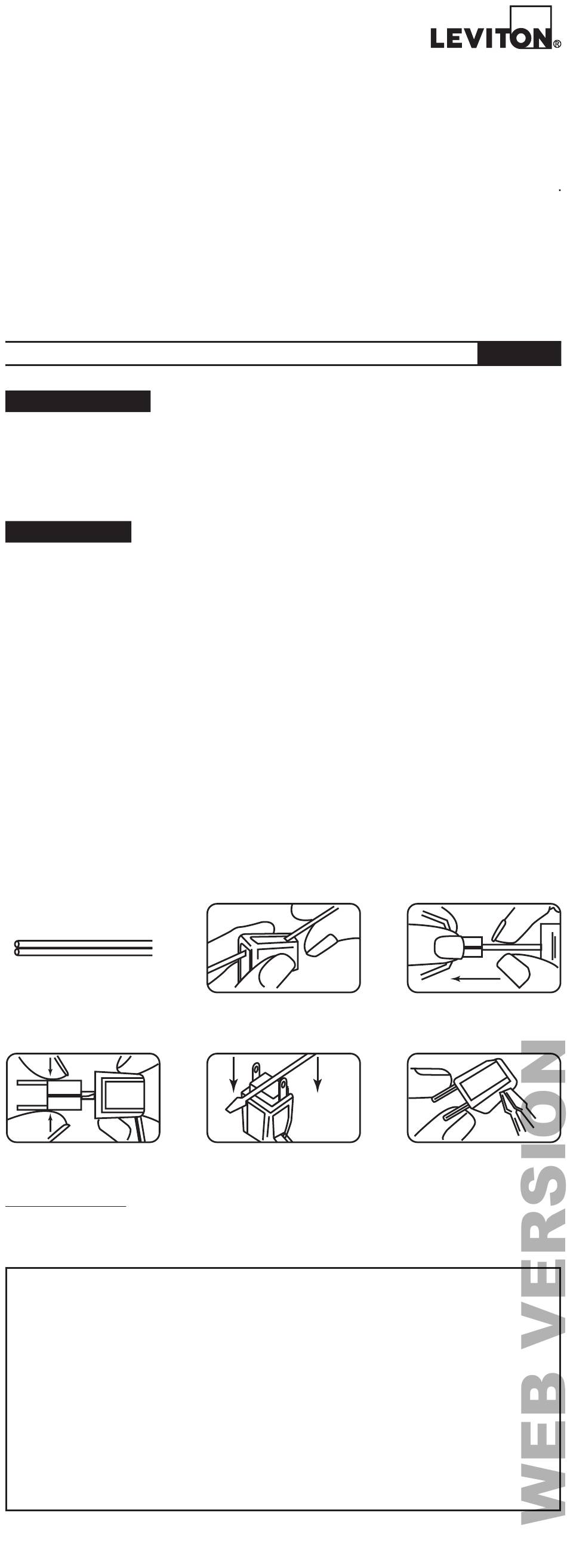

INSTALLATION
TO WIRE:
1. Cut end of cord even and clean. DO NOT slit or remove insulation.
ATTACH TO PARALLEL CORDS ONLY. CAUTION: DO NOT strip wires.
2. Remove blade holder from cover and thread cord through opening in cover.
3. Spread blades apart and push cord into opening in blade holder all the way
(about as far as length of blade holder).
4. Squeeze by pushing where shown on tops of wire piercing prongs until blades are
almost parallel. Slide blade-a cord assembly into cover until blades lock in place.
5. Alternate assembly method: Place plug against hard surface with blades facing
upward and press downward with a screwdriver or similar object between blades till
blades lock in place.
6. To Disassemble: While squeezing blades together, gently pry blade holder out of
cover with small screwdriver pushed into cord set.
1.
4.
FOR CANADA ONLY
For warranty information and/or product returns, residents of Canada should contact Leviton in writing
at Leviton Manufacturing of Canada Ltd to the attention of the Quality Assurance Department,
165 Hymus Blvd, Pointe-Claire (Quebec), Canada H9R 1E9 or by telephone at 1 800 405-5320.
Leviton warrants to the original consumer purchaser and not for the benefit of anyone else that
this product at the time of its sale by Leviton is free of defects in materials and workmanship under
normal and proper use for two years from the purchase date. Leviton's only obligation is to correct
such defects by repair or replacement, at its option. For details visit www.leviton.com or call
1-800-824-3005. This warranty excludes and there is disclaimed liability for labor for removal of
this product or reinstallation. This warranty is void if this product is installed improperly or in an
improper environment, overloaded, misused, opened, abused, or altered in any manner, or is not
used under normal operating conditions or not in accordance with any labels or instructions. There
are no other or implied warranties of any kind, including merchantability and fitness for
a particular purpose, but if any implied warranty is required by the applicable jurisdiction, the
duration of any such implied warranty, including merchantability and fitness for a particular purpose,
is limited to two years. Leviton is not liable for incidental, indirect, special, or consequential
damages, including without limitation, damage to, or loss of use of, any equipment, lost
sales or profits or delay or failure to perform this warranty obligation. The remedies provided
herein are the exclusive remedies under this warranty, whether based on contract, tort or otherwise.
For Technical Assistance Call: 1-800-824-3005 (U.S.A. Only) www.leviton.com

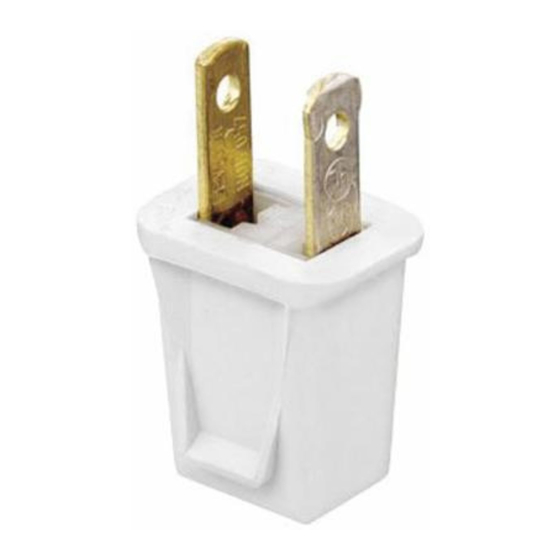

Easy-to-Wire Plug
