SmartRelais 3 Leser

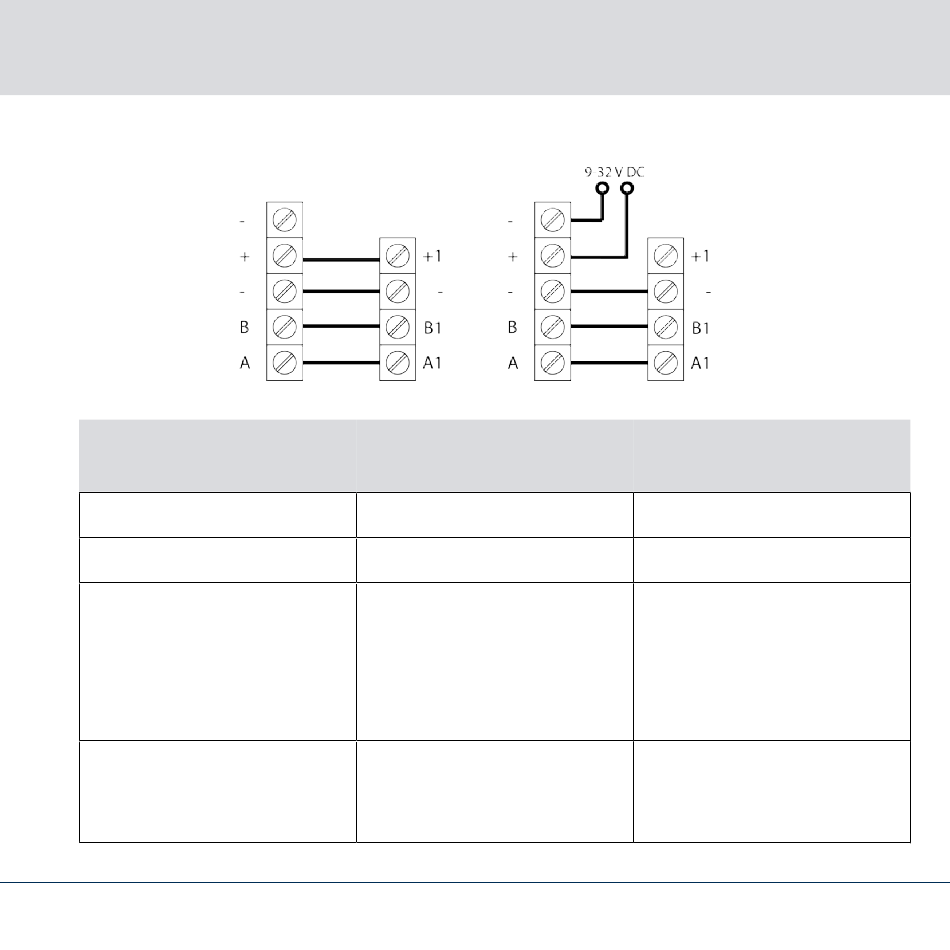

Reader connection
A
B
-
+
EN
Reader Controller
SREL3 controller connec-
tion
A1/A2/A3
B1/B2/B3
-
+
Reader Controller
Alternative circuit
Signal
RS-485: Data line A
RS-485: Data line B
GND. Used to establish the
common ground reference
potential for the data lines.
Any ground connection to
the SREL3 controller.
V . Connection for power
IN
supply (external or via con-
troller).
4. Connections
29 / 136
