- Page 1 TecPen MAP Oxygen Analyzer User Manual TS-200 O2 Revision 10...
-
Page 2: Table Of Contents
Contents Quick Start Guide ............................3 Introduction ..............................4 Package Contents ............................4 Layout & Controls ............................5 Operation ............................... 6 Before You Begin ............................ 6 Turning the TecPen On .......................... 6 Taking a Measurement ........................... 6 Saving a Measurement ........................... 6 Turning the TecPen Off .......................... -
Page 3: Quick Start Guide
Quick Start Guide Perform a measurement Connecting the TecPen MAP to the computer Acclimatize the device to the Press ON/OFF to switch on the TecPen. surrounding temperature (~30 min). Use the USB cable to connect it to a computer. Press ON/OFF to switch on the TecPen. Disconnect the TecPen properly from the The PWR LED will light up green. computer. Loading the configuration data The TecPen will indicate the battery status Complete all the steps from the “Connecting TecPen and oxygen level with * ***%. MAP" to your computer. The TecPen will take 2 minutes to warm up. Connect the delivered USB Stick to your computer. Connect the gas inlet of the TecPen to the Open the excel file on the USB Stick. provided filter and connect the sampling needle Fill in your configuration/products using the layout of onto the filter. ... -
Page 4: Introduction
Micro-bioreactor systems Package Contents Quantity Item Part number TecPen TS-200 / TS-202 Case Particulate Filters CM-0118 Sampling needle Contact co2meter 25/0.8 Contact co2meter USB Cable USB Protection Contact co2meter Cover USB Flash Drive Instruction Manual On flash drive Contact co2meter... -
Page 5: Layout & Controls

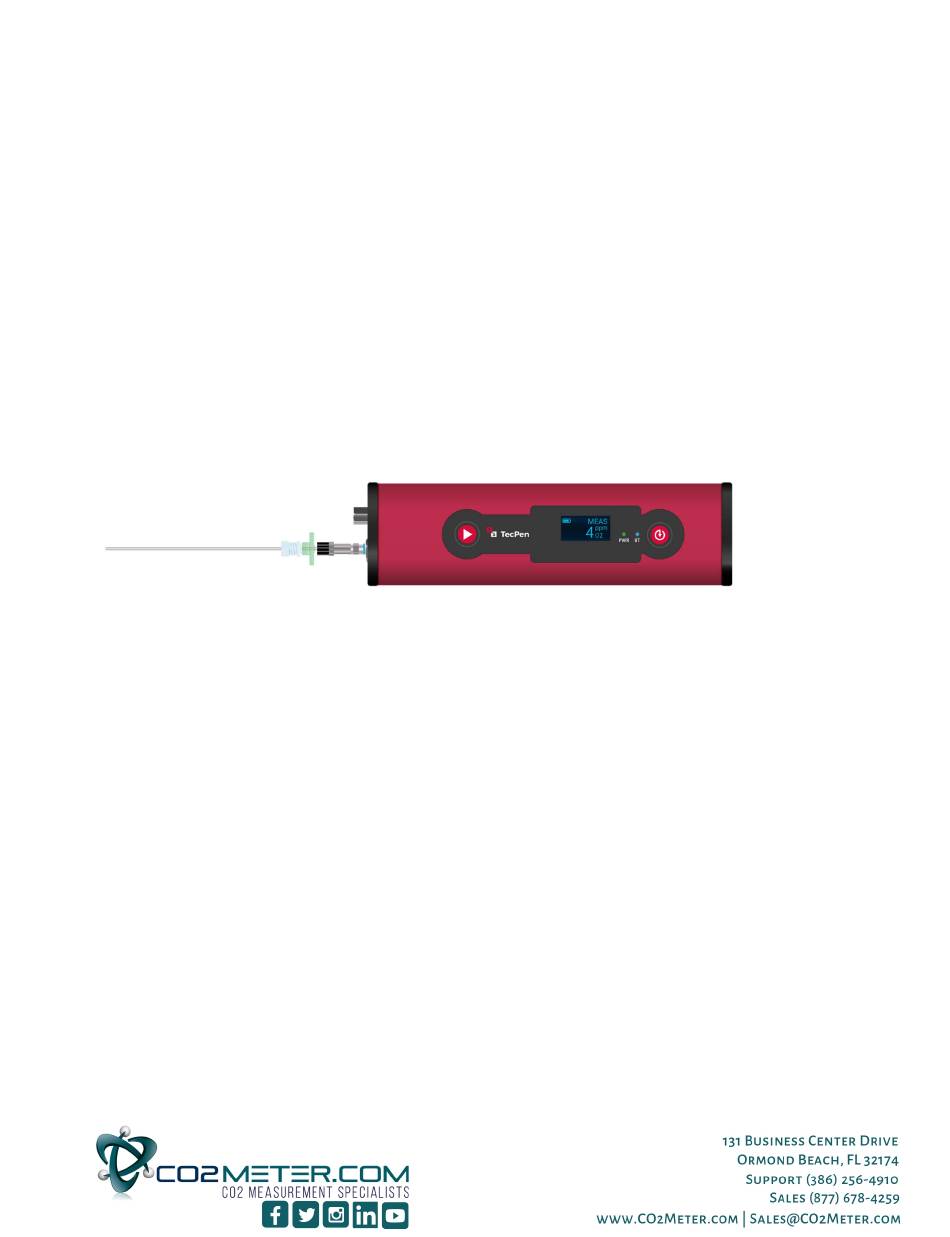

Layout & Controls Start Device ‐ Press button: start measurement / stop measurement OLED Display PWR (Power) LED ‐ Lights up when the device is switched o n BT LED – Lights up when charging and turned on Memory Button ‐ saves measurement On/Off Button ‐ press briefly: switch on device, hold down: switch off USB Port ‐ Sampling Gas Inlet Gas Outlet... -
Page 6: Operation
Operation IMPORTANT! If the device is taken to a room with a significantly different ambient temperature, an acclimatization period of 1-2 hours is required. Before You Begin The TecPen can be charged with any 5V USB cable and adapter. Full charging takes place in under 2 hours. -
Page 7: Menu Display
Menu Display In normal use the TecPen has 5 screens that can be viewed by pressing and holding the MEMORY button. It is not possible to switch through the screens in reverse order. Note: Zero-point adjustment may only be carried out by the manufacturer service. Screen 1 battery level measured value... -
Page 8: Menu Options
Menu Options In addition to the main screen the TecPen has 4 menu options screens that can be accessed by pressing and holding the memory button. Change Data File Format (Configuration) 1. Hold the memory button for 2 seconds to access the menu. 2. -
Page 9: Saving Data
Saving Data Default Operation After each measurement is completed and the pump stops running, the currently displayed measured value can be stored in the internal memory of the TecPen by briefly pressing the memory button. By default, a new data file is created each day using the date as the file name and the measured oxygen level and a time stamp as data. -
Page 10: Customizing The Data File Format
After calibration the original calibration values are overwritten. If the calibration has not been carried out correctly, the original factory values can only be restored by co2metersupport. While calibration can be carried out by the user, adjusting the zero-point may only be carried out by co2meter Service. -
Page 11: Maintenance
Should the charging capacity decrease unusually quickly within one year or with a maximum of 300 charge cycles (whichever is reached first) due to a production error, please contact co2meter. ISO Certification The instrument must be returned annually to the manufacturer for recalibration in accordance with ISO:9000 certification. -
Page 12: Troubleshooting Guide
**** after a sample oxygen in fresh air (21%). 2 The PWR lights do not light up Does the display show the main screen? after switching on The LED light may be broken, but unless there is an error on the LCD in most cases the device is not charged. The Display shows BATT Battery is uncharged. 3 The Display remains black after Charge the device and try to switch it on again 4 switching it on Did you disconnect your device properly from the Computer the last time? Yes: The battery might be empty. No/ I do not know: Contact co2meter. 6 The device is connected to the If the device is switched off while connected to a power power supply, but the BT light outlet, the BT light does not light up while the device is does not light up charging. The device is connected to the You must switch on the device before connecting to the 7 Computer, but I cannot find it computer. If the device is switched on but you cannot find it, check for available COM ports. 8 The measured value is not saved Did you press the LOG button? Did you observe the LOG sign on the display? If yes, contact co2meter. 9 The log file shows a wrong date ... -
Page 13: Specifications
Specifications TS-System TecPen MAP O2 Measurement range 0-5% Range Accuracy 0-2% ± 2% Mev** 2-5% ±3% Mv* Resolution 0.05% Response time at 25°C/ 77°F <150ms Pump flow max. 67 mL -10°C/ +60°C Temp. range Min./Max 14°F/140°F Medium Lifetime of sensor cap (protective 2 years atmosphere;... -
Page 14: Support
If the troubleshooting guide above does not help you solving your problem or for more information, please contact us using the information below. Info@CO2Meter.com (386) 872-7668 (M-F 9:00am–5:00pm EST) www.co2meter.com CO2Meter, Inc. 131 Business Center Drive Ormond Beach, FL 32174 (877) 678 - 4259...
